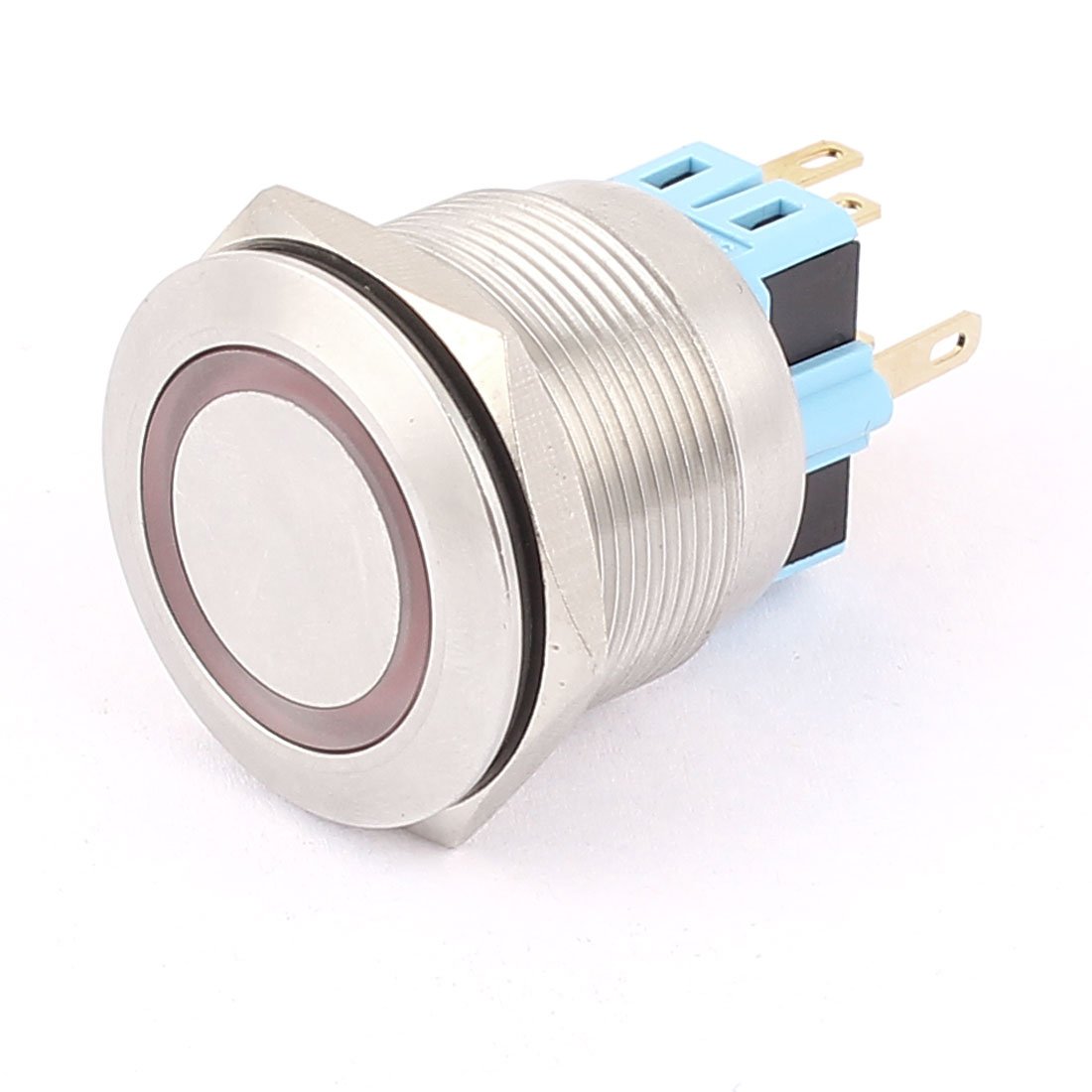

Sourcingmap DC 12V Red LED Light 25mm DPST Flat Head Latching Push Button Switch

• Pole and Throw: DPST; Oeperation Type: Latching(Self Locking); Total Size: 28 x 42mm / 1.1" x 1.7"(Max.D x L); Product Name: LED Push Button Switch
• Country of Manufacture: CHINA; Material: Stainless Steel; Net Weight: 38g

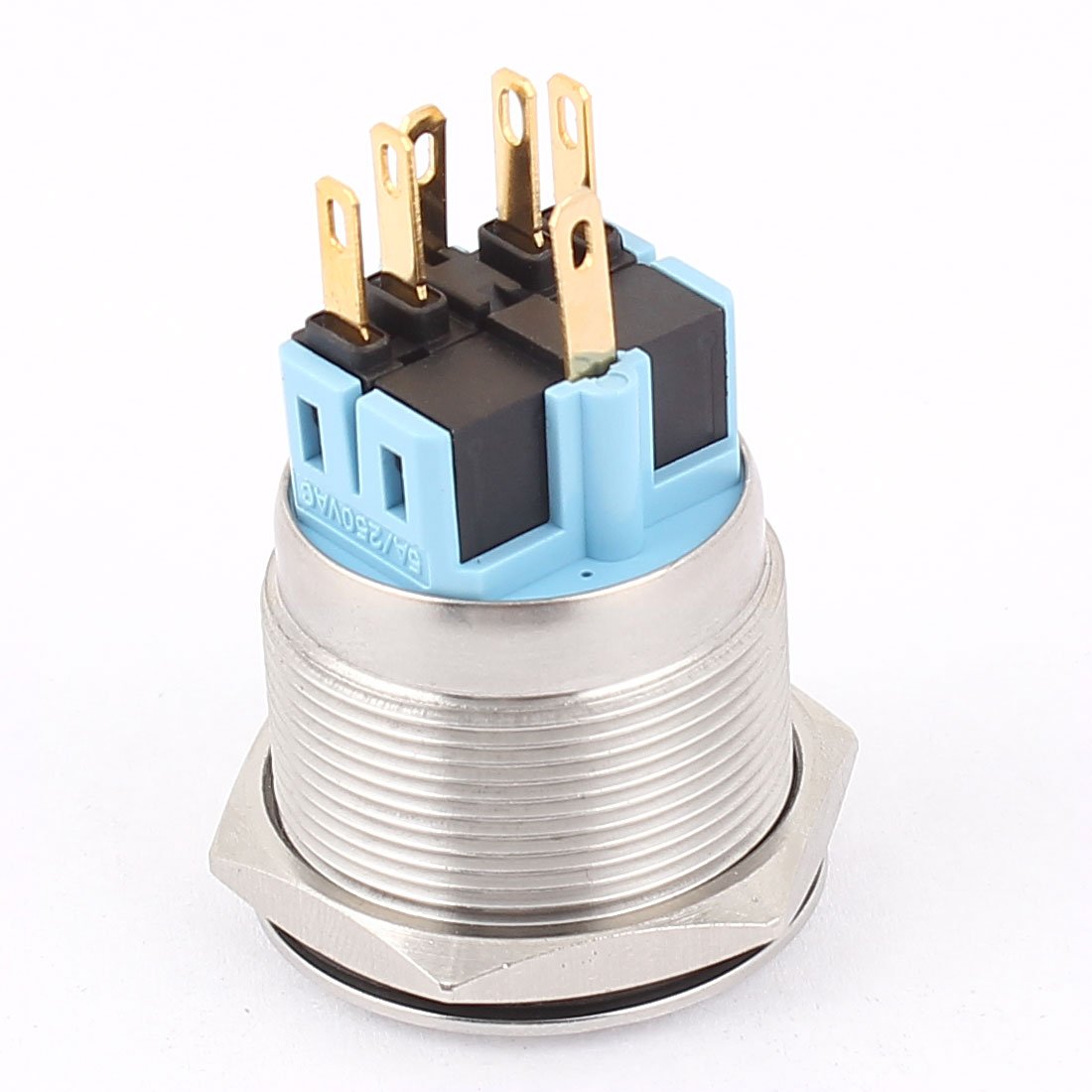

• Package Content: 1 x LED Push Button Switch; Terminal Quantity: 6; Contact Type: NO+NC

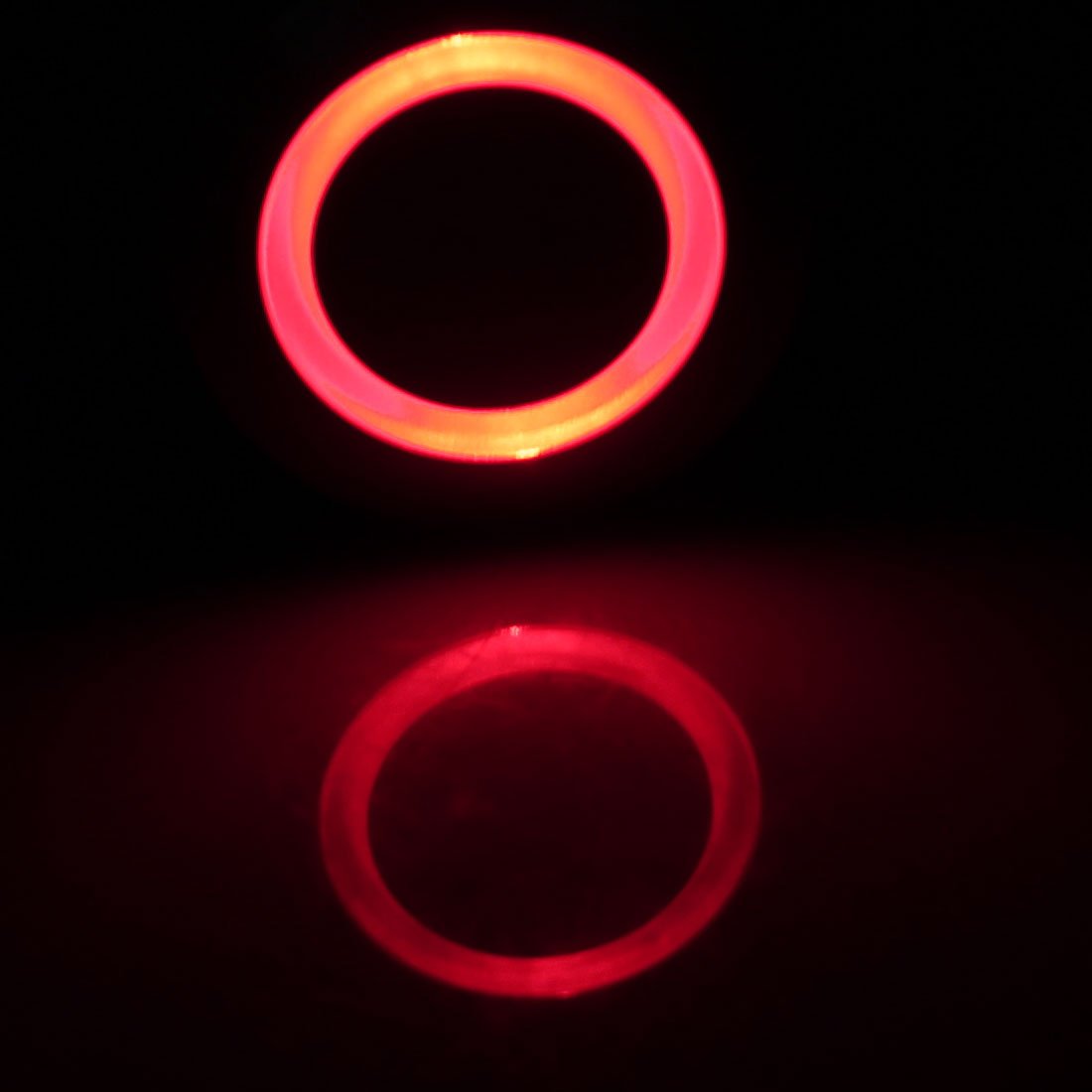

• Lamp Type: LED; Light Voltage: DC12V; LED Light Color: Red
• Mounting Type: Flush Mount; Mounting Size: 25mm / 1"; Main Color: Silver Tone

1.It has a wide range of functions. For example, it can be applied as the switches for the additional electronical equipment inside and outside the vehicle. (such as flashing lights, lights, and dome lights) 2.It is latching action type,when press the button,it is ON,press the button again, it resets,and it is OFF. 3.LED on all the time or only when switch is on (depending on how you wire it).
