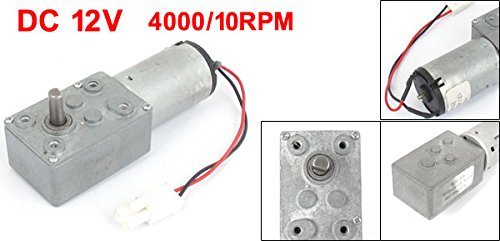

Sourcingmap DC 12V 10RPM 6mm Shaft High Torque Worm Gear Box Reduction Motor

• Country of Manufacture: CHINA; Material: Metal; Net Weight: 196g
• Package Content: 1 x DC Motor; Model: 70JSx300-395; Main Color: Silver Gray
• Rated Voltage: DC 12V; Female Thread Diameter: 2.5mm/ 0.1"
• Shaft Size: 6 x 14mm / 0.24" x 0.55" (D*L); Main Body Size: 92 x 31 x 23mm / 3.6" x 1.2" x 0.9" (L*W*H)
• Motor No-load Speed: 4000RPM; Gear Box No-load Speed: 10RPM

This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed. It is also have addition two characteristics: first, With self-locking, the output shaft can not rotation when switch off, that is self-locking. Second, Gearbox output shaft and motor shaft are come to be a rectangle. It is widely used in various of ocns that require special install size.
