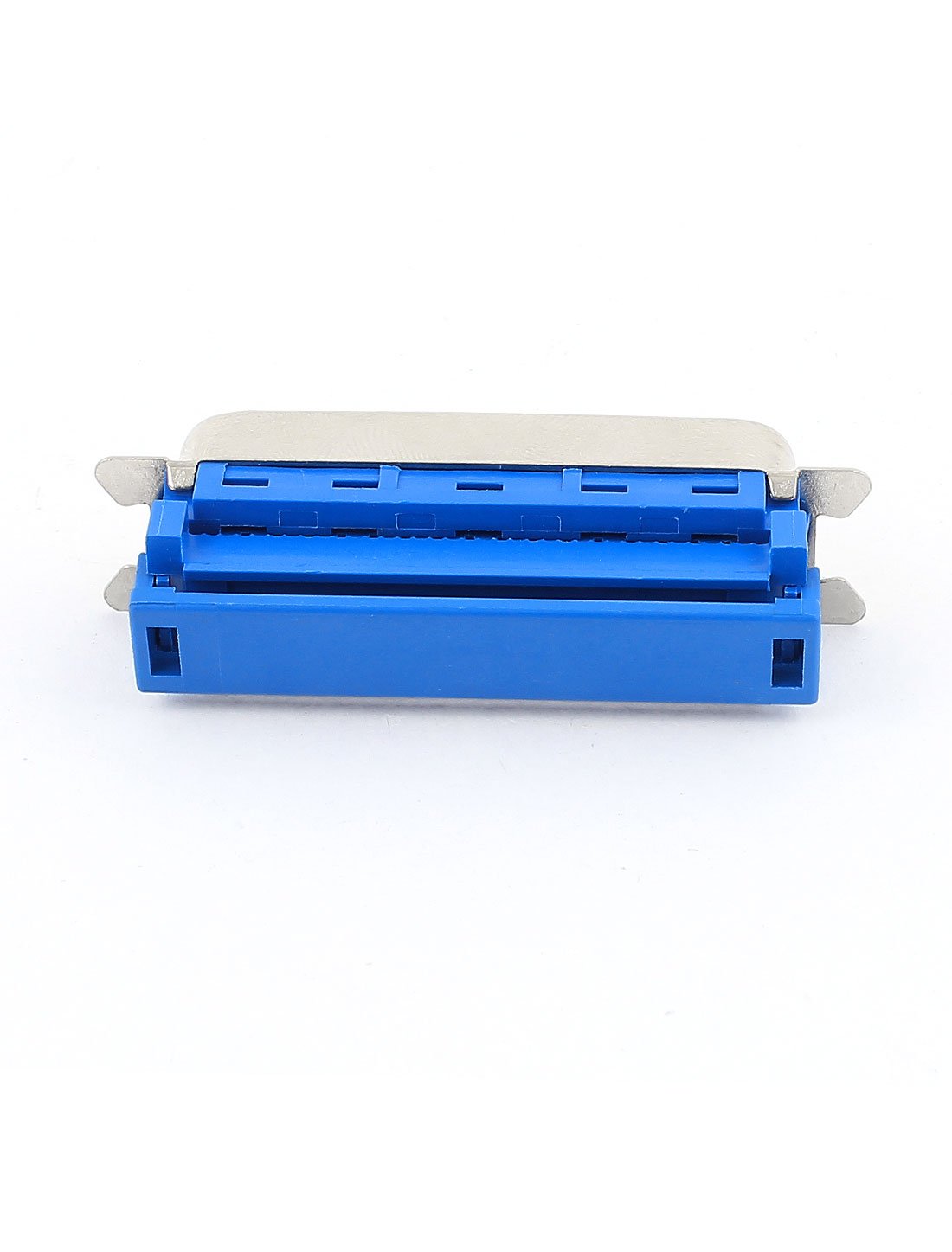

sourcing map CN36 IDC Male Centronics Connector Printer Flat Ribbon Cable Adapter

• Produc Name : CN36 Connector;Interface Type : CN36 36 Pin Male
• Pin Pitch : 2.54mm
• Total Size : 62 x 25 x 15mm/2.44" x 1" x 0.6"(L*W*H)
• Weight : 18g
• Package Content : 1 x CN36 Connector

Rated load: DC 30V 0.5AContact Resistance: 30m Ohm Max.Insulation Resistance: 100m Ohm mini at DC 500VDielectric Withstand Voltage: AC 500V per minute Temperature Range: -40C to +70C Insertion and Extraction Force: 3~20NParallel Port , 36Pin with gold contacts, crimp contacts, IDC type, fit CN 57 series printer.An easy way to convert a 36 Pin female Parallel Port CableThese 36 Pin male Crimp Centronics Connectors are used to terminate the connection type of flat ribbon cable. They can easily be used to make a custom length cable as well as create a custom pinout, creating a durable connection for all applications.
