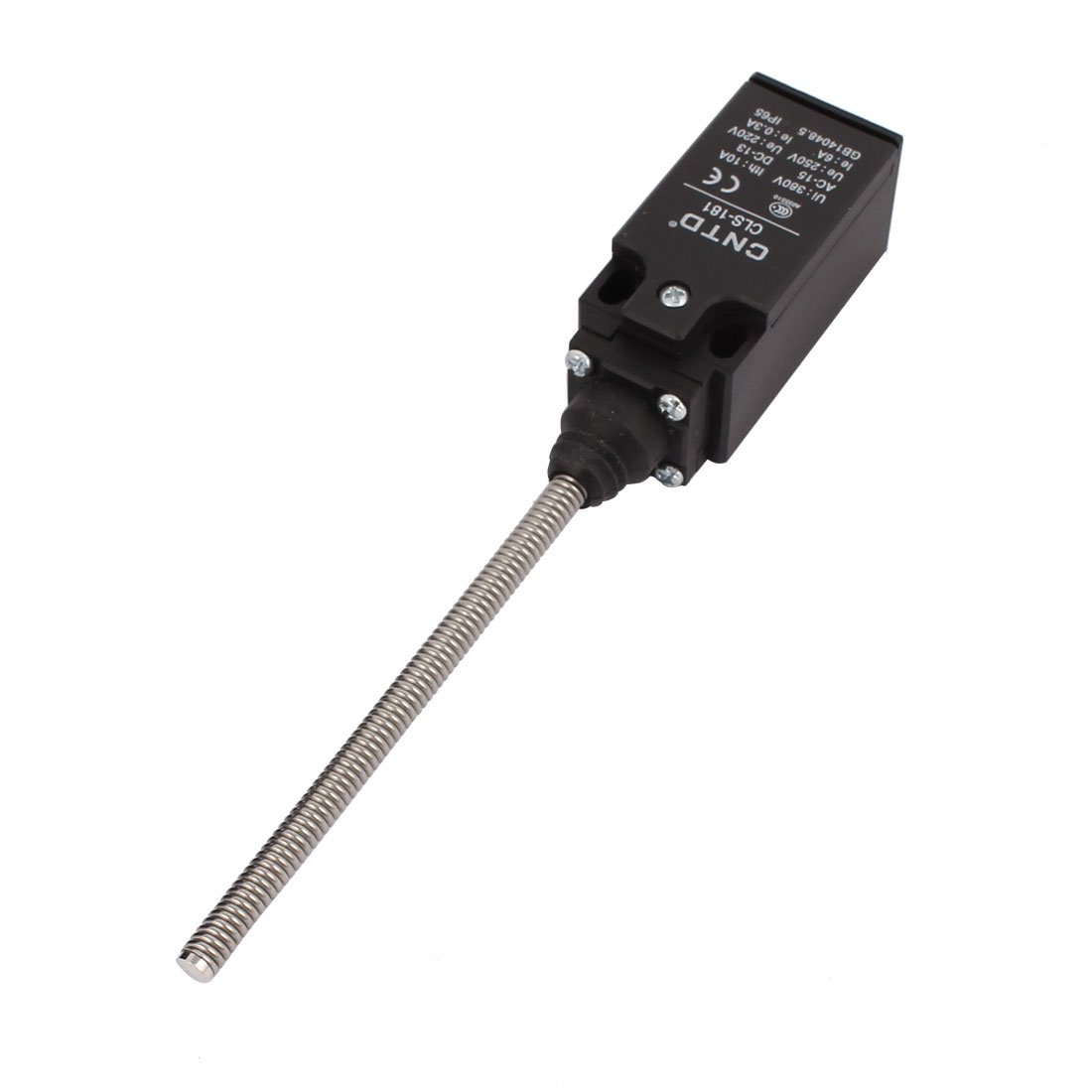

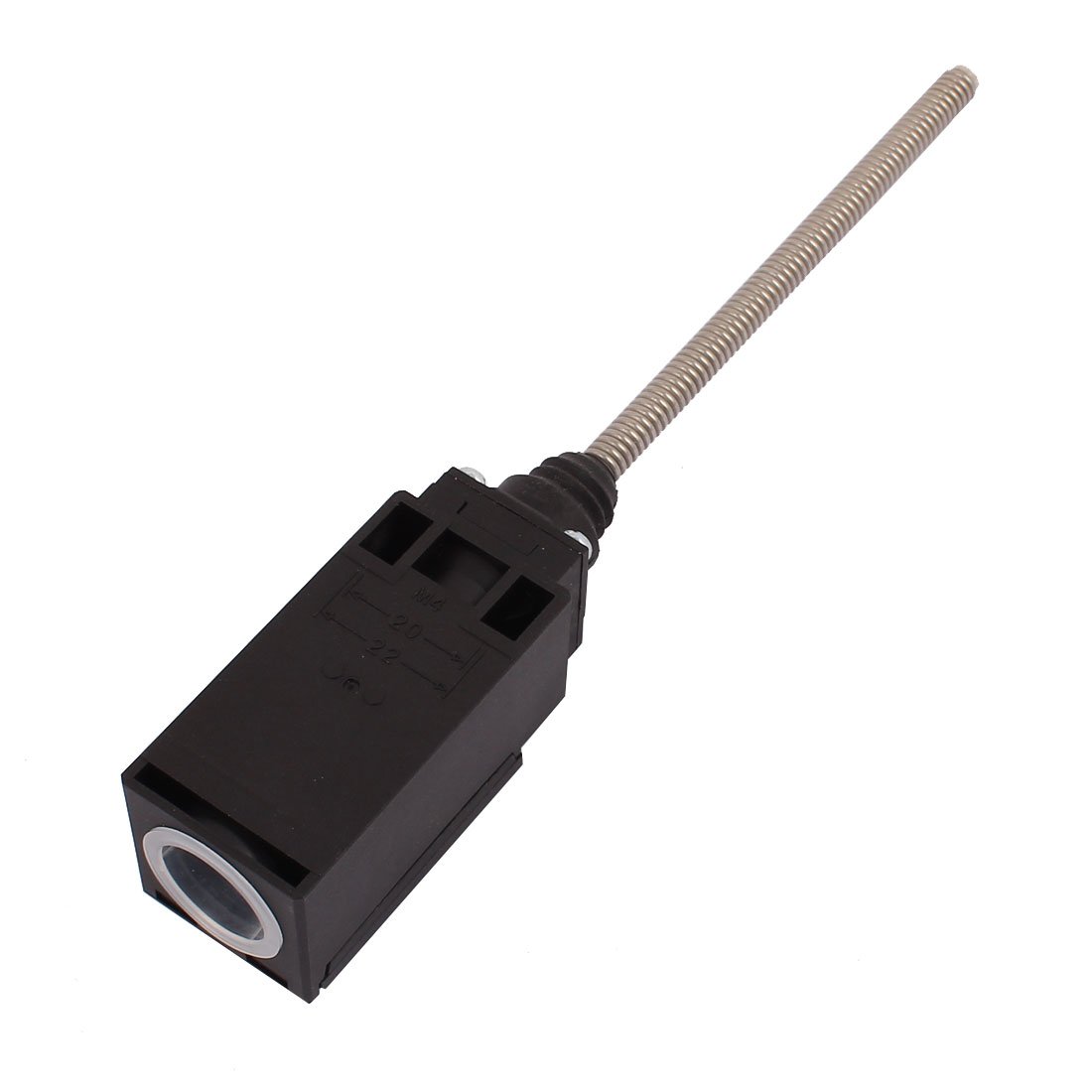

Sourcingmap CLS-181 AC 380V 10A Coil Spring Actuator Momentary Limit Switch NO + NC for CNC Mill 3D Printer Door Switch

• Product Name : Limit Switch;Model No. : CLS-181;Actuator Action : Momentary
• Actuator Type : Coil Spring;Contact Type : 1NC + 1NO(SPDT);Ui : 380V
• Ith : 10A;AC-15 : Ue: 250V, le: 6A;Waterproof Level : IP65
• Working Stroke : 50mm;Spring Size : 6.8 x 110mm / 0.27" x 4.33"(Diameter*L);Overall Size(Approx.) : 195 x 31 x 30mm / 7.67" x 1.2" x 1.2"(L*W*T)
• Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.

This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant. Can be used in safety circuits, control circuit and auxiliary circuit for terminal limit protection. Safe and reliable ,dust and oil proof ,small installation size ,the products are for general use. for different connecting rod or contacting heads. Lever Arm can be rotated to the left and to the right.
