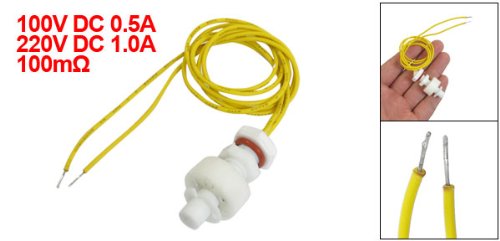

Sourcingmap Aquarium Tank Pool Liquid Water Level Sensor Vertical Floating Switch 35mm Long

• Product Name : Float Switch;Max Contact Rating : Max Contact Rating;10W : 10W;Max Switching Voltage : 100V DC
• Max Switching Current : 0.5A;Max Breakdown Voltage : 220V DC;Max Carry Current : 1.0A;Max Contact Resistance : 100mΩ
• Temperature Rating : -10 ~ +60 °C / +85 °C;Float Ball Material : PP;Float Body Material : PP;Float Ball Size(Approx) : 8 x 18mm / 0.3" x 0.7"(L*D)
• Thread Dia(Approx) : 8mm / 0.3";Hex Nut Diameter : 14mm / 0.55";Bottom Clip Dia(Approx) : 13mm / 0.5";Body Total Length : 35mm / 1.4"
• Cable Length : 38cm / 15";Color : White, Yellow;Net Weight : 6g;Package Content : 1 x Float Switch

A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device. It can be easily converted from normally open to normally close by invertin the float. Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
