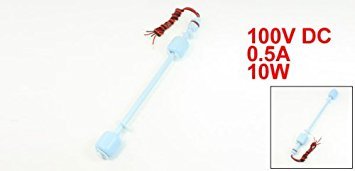

sourcingmap Aquarium Liquid Water Level Floating Switch, 24.5 Cm Long, Blue

• Product Name : Water Level Sensor;Contacts : NO+NC;Max Contact Rating : Max Contact Rating;10W : 10W;Max Switching Voltage : 100V DC
• Max Switching Current : 0.5A;Max Breakdown Voltage : 220V DC;Max Carry Current : 1.0A;Max Contact Resistance : 100mΩ
• Temperature Rating : -10 ~ +60 °C / 85 °C;Float Ball Material : PP;Float Body Material : PP;Float Ball Size(Approx) : 25 x 25mm / 1" x 1"(L*D)
• Thread Dia(Approx) : 10mm / 0.4";Nut Dia(Approx) : 14mm / 0.55";Bottom Clip Dia(Approx) : 20mm / 0.8";Body Total Length : 245mm / 9.6"
• Cable Length : 35cm / 13.8";Color : Blue;Net Weight : 36g;Package Content : 1 x Water Level Sensor

A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.It can be easily converted from normally open to normally close by inverting the float.Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included her
