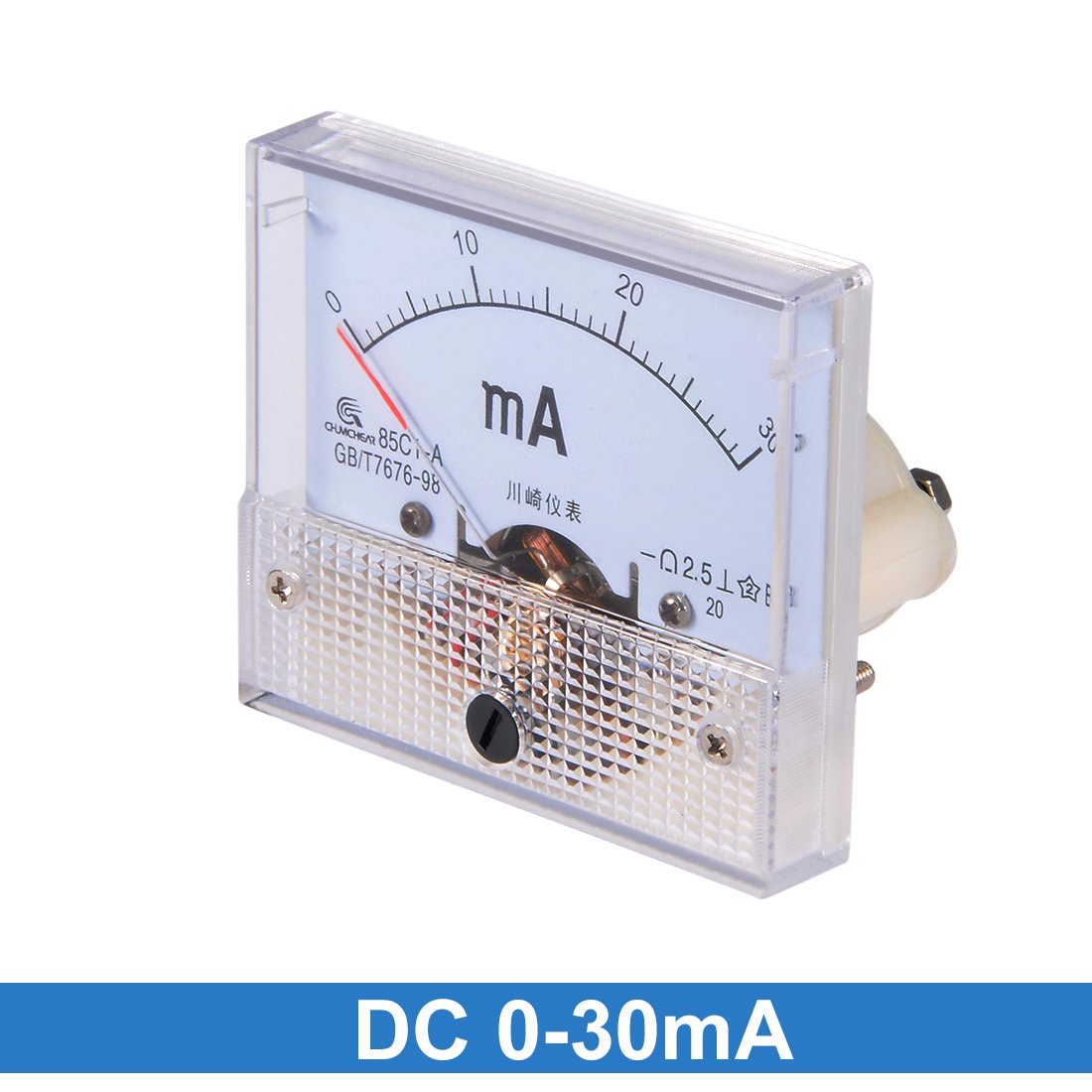

sourcingmap Analog Current Panel Meter DC 0-30mA 85C1 Ammeter 64x60x56mm for Auto Circuit Testing Charging Battery Ampere Tester Gauge

• [Main Parameter] - Model: 85C1; Measurement Range: 0-30mA, Accuracy of Class: 2.5
• [Material] - Transparent plastic shell is convenient for you to read scale quickly

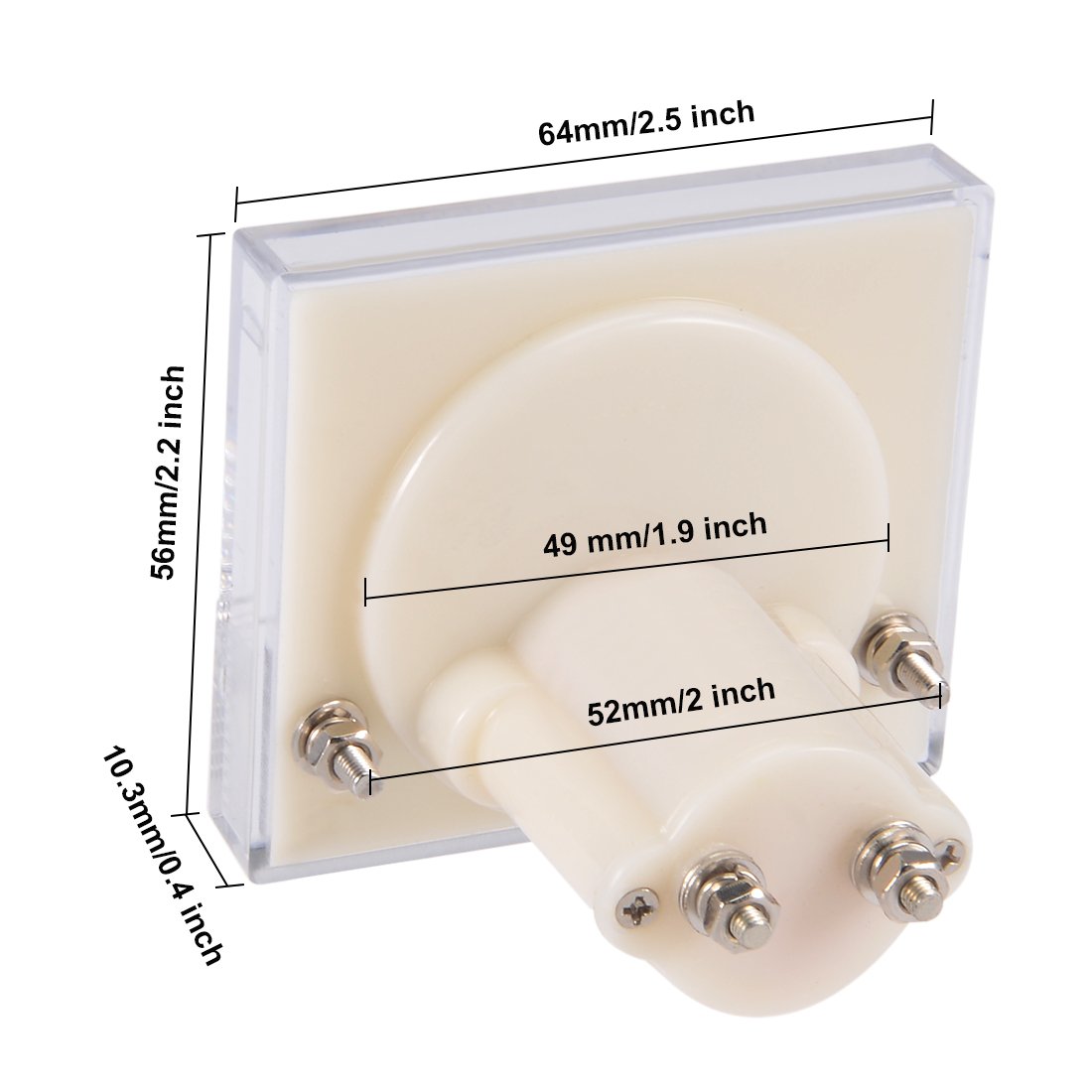

• [Size]- Meter Panel(Approx): 2.52x2.36x2.2" / 64x60x56mm(L*W*T); Mount Size : 2 x 1.9 inch / 52 x 49 mm
• [Appalication] - Needle ampere panel meter is great for replacing broken meter, monitoring a circuit and battery charger, measuring current, or other voltage measurement devices
• [Quantity] - Package Includes: 1 x Analog Current Panel Meter; Several Installing Parts

Note: If the pointer is not in the 0 position, please use the 0-position adjuster on the cover to adjust the needle to 0 position. The device should not be knocked or shaken. Measures amper range of 0-30mA with accuracy of Class 2.5. Clear and easy to read scale and a button for fine tuning the dial. Needle Ampere Panel Meter for electronic applications or other Voltage measurement devices. Specifications: Product Name : Analog Amperemeter Model : 85C1-A Measuring Ampere Range : DC 0-30mA Accuracy : Class 2.5 Work Temperature : -20~+ 50C Meter Panel Size(Approx) : 2.5 x 2.2 x 2.3 inch / 64 x 56 x 60 mm(L*W*T) Mount Size : 2 x 1.9 inch / 52 x 49 mm Net Weight : 61g( oz) Color : White Package Include: 1 x Analog Amperemeter with Pulse Several Installing Parts
