sourcingmap Analog Current Panel Meter DC 0-30A 65C5 Ammeter for Circuit Testing Charging Battery Ampere Tester Gauge Pack of 1

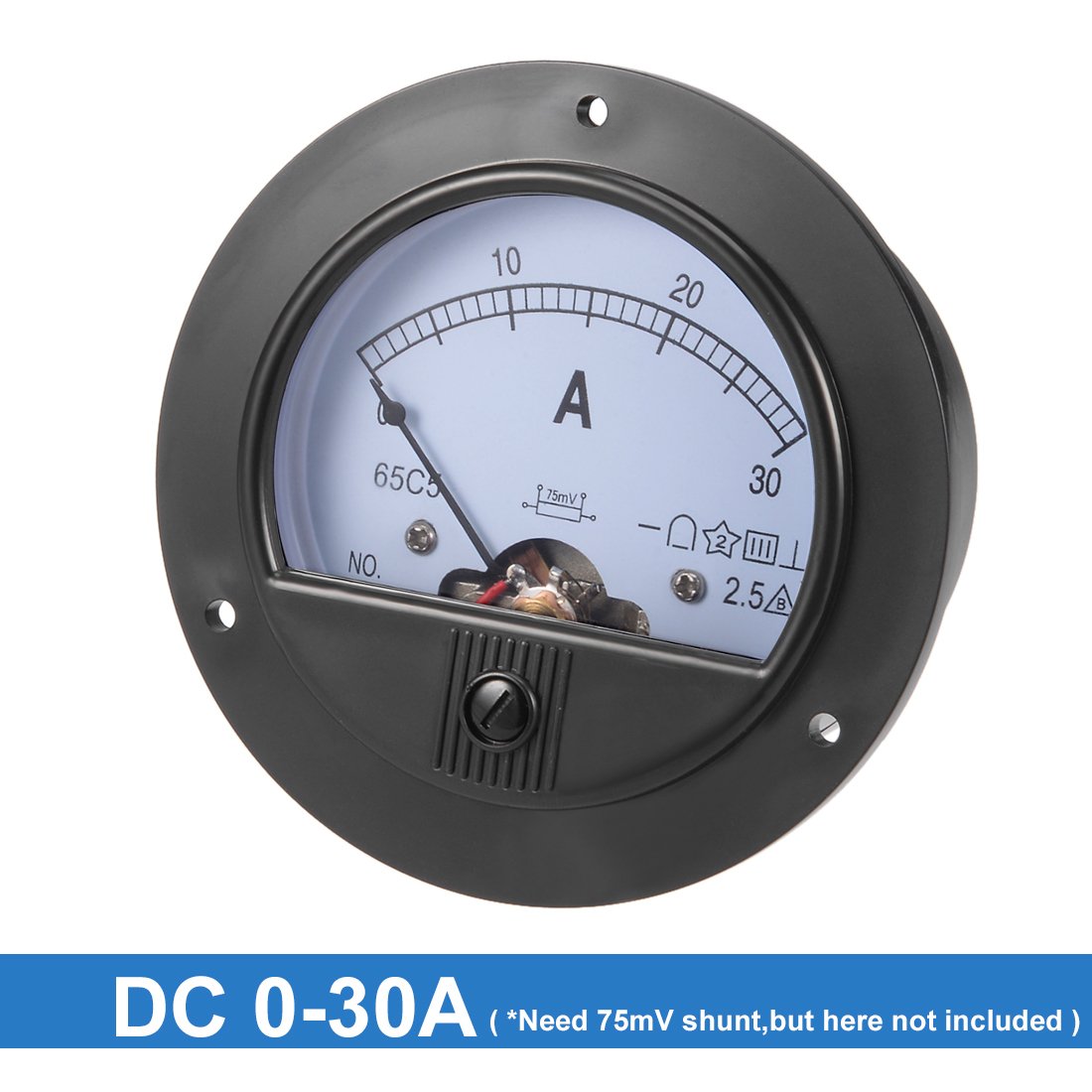

• [Main Parameter] - Model: 65C5; Measurement Range: 0-30A, Accuracy of Class: 2.5
• [Material] - Transparent plastic shell is convenient for you to read scale quickly

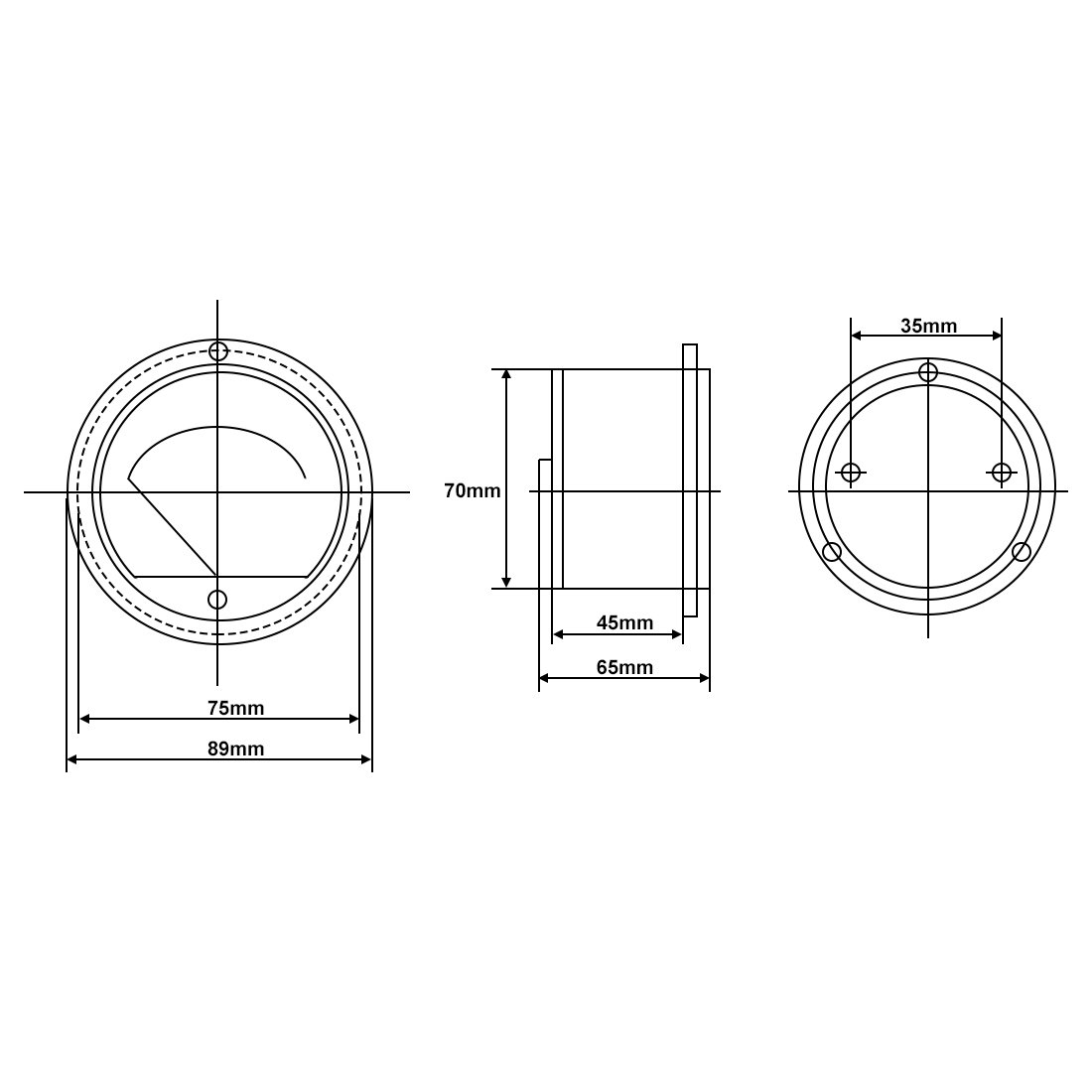

• [Size]- Meter Panel(Approx): 3.5x2.56" / 89x65mm(L*W*T); Mount Size : 2.7 x 2.7 inch / 70 x 70 mm
• [Appalication] - Needle ampere panel meter is great for replacing broken meter, monitoring a circuit and battery charger, mesuring current, or other voltage measurement devices
• [Quantity] - Package Includes: 1 x Analog Current Panel Meter

Note: This ammeter need to work with a 75mV shunt, which is not included here. If the pointer is not in the 0 position, please use the 0-position adjuster on the cover to adjust the needle to 0 position. The device should not be knocked or shaken. Measures amper range of 0-30A with accuracy of Class 2.5. Clear and easy to read scale and a button for fine tuning the dial. Needle Ampere Panel Meter for electronic applications or other Voltage measurement devices. Specifications: Product Name : Analog Amperemeter Model : 65C5-A Measuring Ampere Range : DC 0-30A Accuracy : Class 2.5 Work Temperature : -20~+ 50C Relative Humidity : ?85% Meter Panel Size(Approx) : 3.5 x 3.5 x 2.5 inch / 89 x 89 x 65 mm(L*W*T) Mount Size : 2.7 x 2.7 inch / 70 x 70 mm Net Weight : 3.4 oz / 100g Color : Black,White Package Include: 1 x Analog Amperemeter Not included a shunt
