Sourcingmap Aluminum Heat Sink SSR Dissipation for Three Phase Solid State Relay 10A-100A

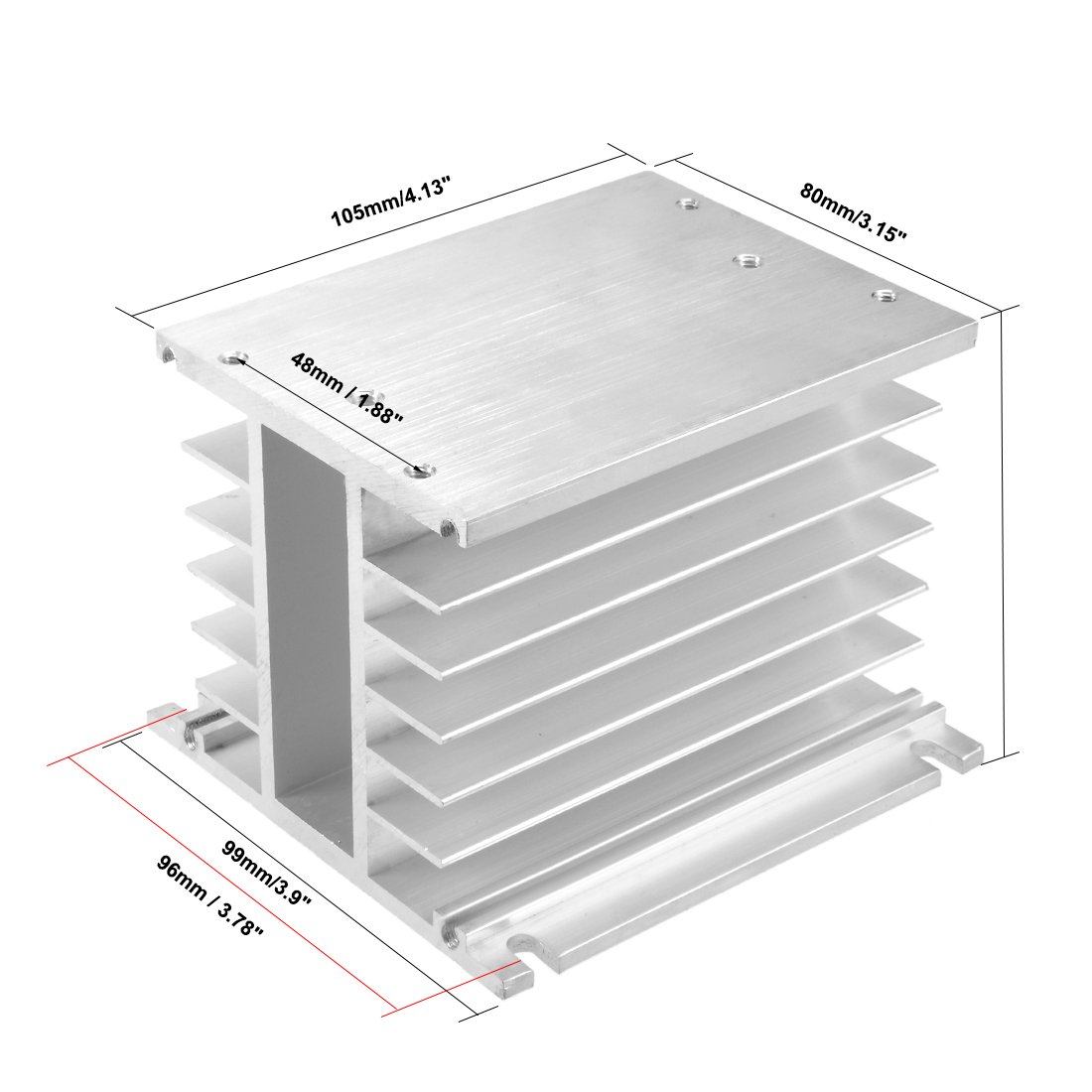

• Model: AH-105W;Fit for: Three Phase SSR;Total Size (Approx.): 10.5 x 9.9 x 8cm / 4.1-inch x 3.9-inch x 3.1-inch (L*W*H);Mounting Hole Diameter (Approx.): M4;Threaded Hole Distance: 48mm / 1.88-inch, 96mm / 3.78-inch;Base Mounting Hole Diameter: 9 x 5mm / 0.4" x 0.2"(L*W);Size Roof (Approx.): 105 x 80mm / 4.13-inch x 3.15-inch (L*W);Size Foot (Approx.): 105 x 99mm / 4.13-inch x 3.9-inch (L*W);Package Content: 1 x Aluminum Heat Sink
• Made of durable aluminum material, mountable heatsink design, compact size, easy to install.
• It has good thermal conductivity, large heat dissipation, fast heat dissipation, high metal heat intensity, lightweight and corrosion resistance. It is helpful to dissipate the heat and protect your relay,
• The Heat Sink is specially designed for three phase SSR solid state relay, which current less than 30A. Widely used in machinery, wind power generation, construction machinery, air compressors, household appliances and other industries.
• Heat Sink ONLY, Solid State Relay NOT INCLUDED here.

1.Made of durable aluminum material, mountable heatsink design, compact size, easy to install. It has good thermal conductivity, large heat dissipation, fast heat dissipation, high metal heat intensity, lightweight and corrosion resistance. It is helpful to dissipate the heat and protect your relay, 2.The Heat Sink is specially designed for three phase SSR solid state relay, which current less than 30A. Widely used in machinery, wind power generation, construction machinery, air compressors, household appliances and other industries. 3.Heat Sink ONLY, Solid State Relay NOT INCLUDED here. Specification: *Product Name: Aluminum Heat Sink *Package Content: 1 x Aluminum Heat Sink *Model: AH-105W *Fit for: Three Phase SSR *Material: Aluminum *Main Color: Silver Tone *Total Size (Approx.): 10.5 x 9.9 x 8cm / 4.1-inch x 3.9-inch x 3.1-inch (L*W*H) *Mounting Hole Diameter (Approx.): M4 *Threaded Hole Distance: 48mm / 1.88-inch, 96mm / 3.78-inch *Base Mounting Hole Diameter: 9 x 5mm / 0.4" x 0.2"(L*W) *Size Roof (Approx.): 105 x 80mm / 4.13-inch x 3.15-inch (L*W) *Size Foot (Approx.): 105 x 99mm / 4.13-inch x 3.9-inch (L*W)
