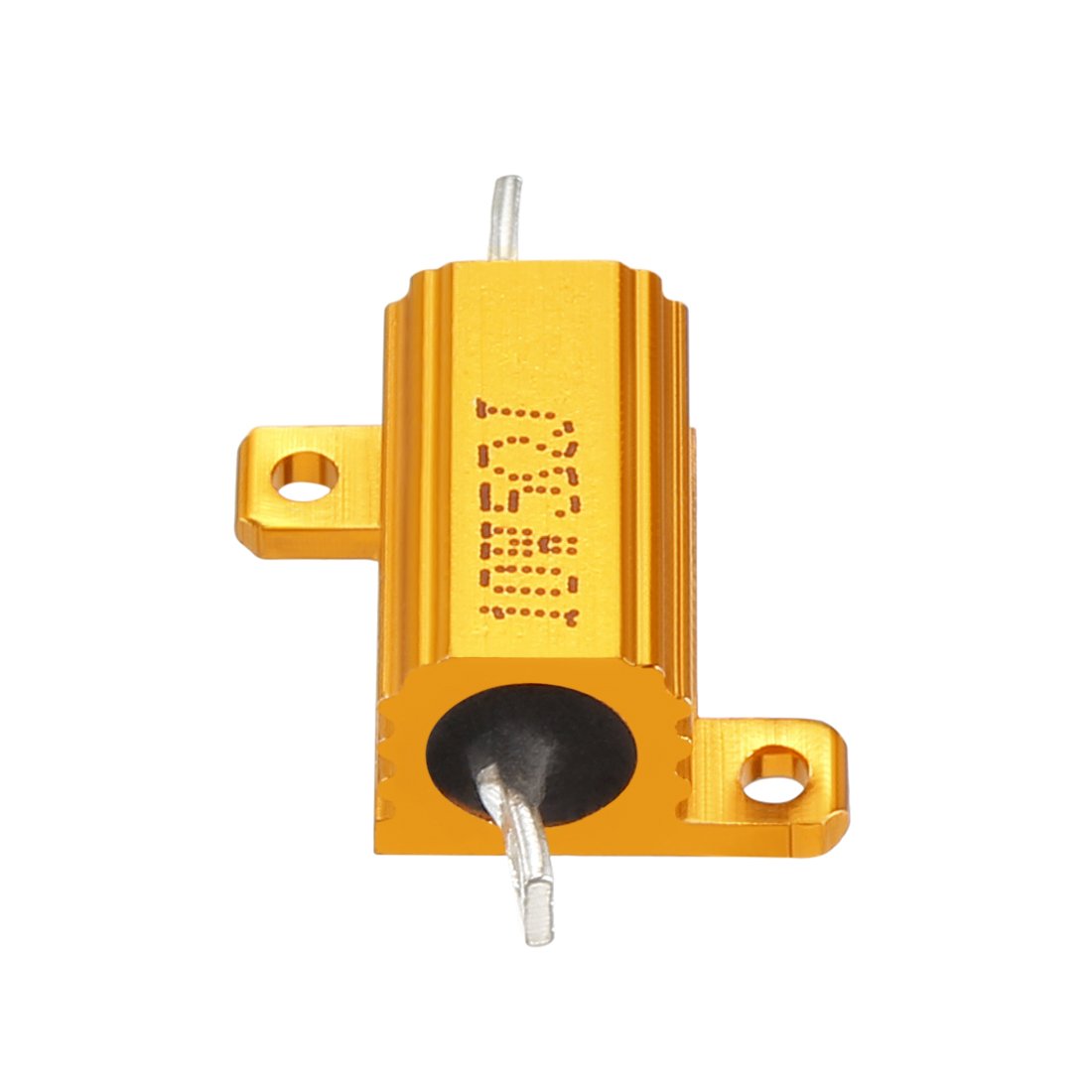

sourcingmap Aluminum Case Resistor 10W 5 Ohm Wirewound for LED Converter with Rod Post 10W5RJ

• 10 Wattage and 5 Ohm, 5% tolerance. Wire Wound Resistor owns high stability and accuracy. Moreover, it was used for various application because of the wide resistance range.
• Aluminum Housed. An insulated cover on the wounded wires would block out the heat, which promises the high performance of a resistor. Hence, the cooling job was achieved by aluminum case.
• This 10W resistor formed with qualified copper, nickel, and aluminum. With the compact structure and heat dissipation design, a capability of overload has been built.
• Board length 3/4 inches(19mm) and two rods with 1.8mm hole for a soldering connection. Dia. 2.5mm antisymmetric anchoring hole for holding, which will fit #2 Screws(or M2.3 nuts)
• Reliable. Problems like the flush LED would have a perfect solution, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc.

Main Body Length: 1.9 cm/ 0.75 inches Power: 10 Wattage Rated Resistance: 5 R Tolerances: 5%(J) Connection Type: Rod terminals with hole Rod Length: 7.7mm/0.3 inches Screw Hole: 2.5mm(Fit #2 or M2.3 nuts) Distance between screw hole: 14mm Weight: 6g/0.15 Oz Materials: Nickel alloys Wire Wound Resistor with Aluminum Case Color: Gold Package Content: 1 x 10W5R Aluminum Housed Resistor
