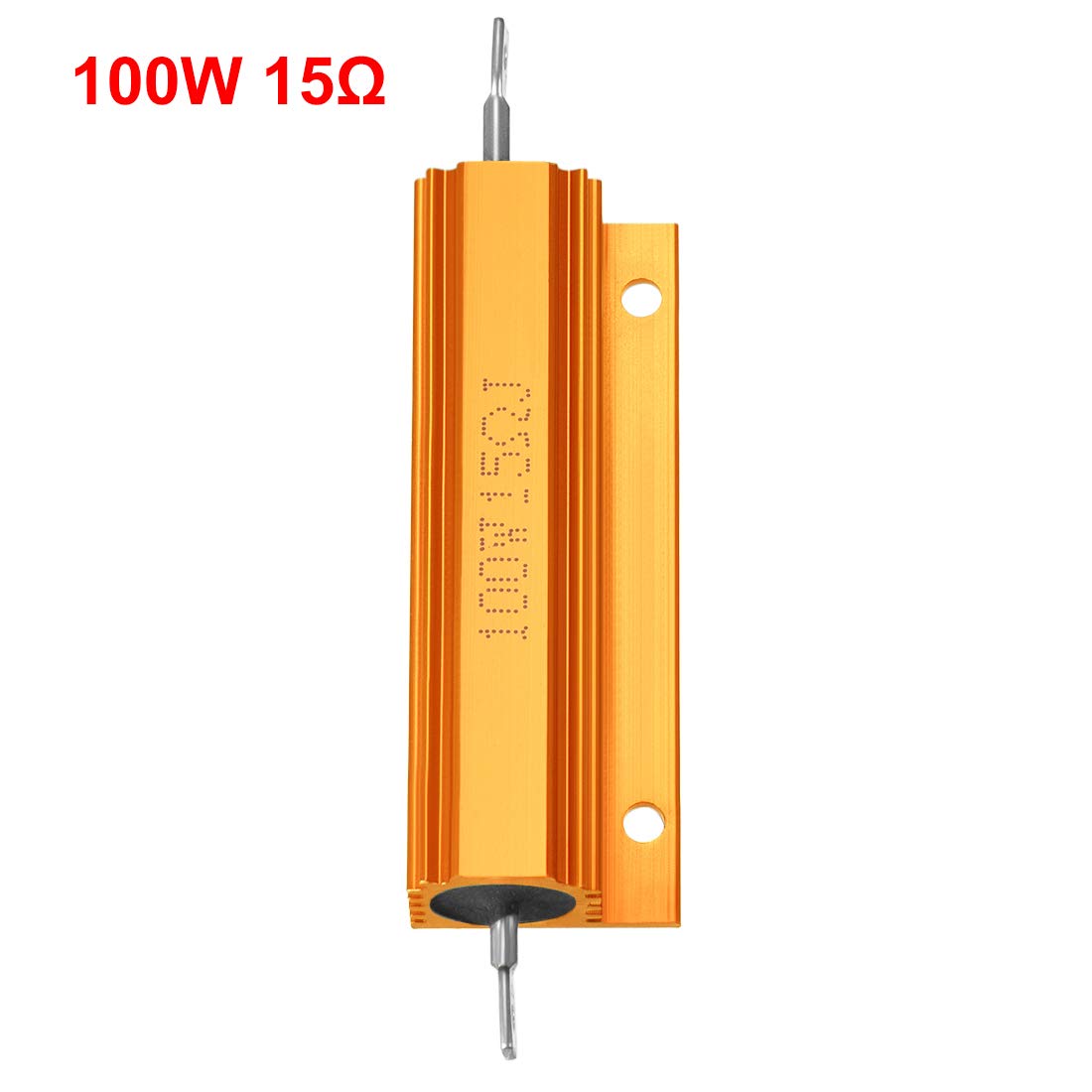

sourcingmap Aluminum Case Resistor 100W 15 Ohm Wirewound Yellow for LED Replacement Converter 100W 15RJ 2pcs

• 100 Wattage and 15 Ohm, 5% tolerance. Wire Wound Resistor owns high stability and accuracy. Moreover, it was used for various application because of the wide resistance range.
• Aluminum Housed. An insulated cover on the wounded wires would block out the heat, which promises the high performance of a resistor. Hence, the cooling job was achieved by aluminum case.
• This 100W resistor formed with qualified copper, nickel, and aluminum. With the compact structure and heat dissipation design, a capability of overload has been built.
• Board length 2.32 inches(59mm) and two rods with 2mm hole for a soldering connection. Dia. 3.2mm antisymmetric anchoring hole for holding
• Reliable. Problems like the flush LED would have a perfect solution, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc.

Description: 1. 100 Wattage and 15 Ohm, 5% tolerance. Wire Wound Resistor owns high stability and accuracy. Moreover, it was used for various application because of the wide resistance range. 2. Aluminum Housed. An insulated cover on the wounded wires would block out the heat, which promises the high performance of a resistor. Hence, the cooling job was achieved by aluminum case. 3. This 100W resistor formed with qualified copper, nickel, and aluminum. With the compact structure and heat dissipation design, a capability of overload has been built. 4. Board length 2.32 inches(59mm) and two rods with 2mm hole for a soldering connection. Dia. 3.2mm antisymmetric anchoring hole for holding. 5. Reliable. Problems like the flush LED would have a perfect solution, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc. Specification: Main Body Length: 59 mm/ 2.32 inches Power: 100 Wattage Rated Resistance: 15 R Tolerances: 5%(J) Connection Type: Rod terminals with hole Rod Length: 12mm/0.47 inches Screw Hole: 3.2mm Distance between screw hole: 45mm Weight: 60g/2.10 Oz Materials: Nickel alloys Wire Wound Resistor with Aluminum Case Color: Yellow Package Content: 2x 100W 15R Aluminum Housed Resistor
