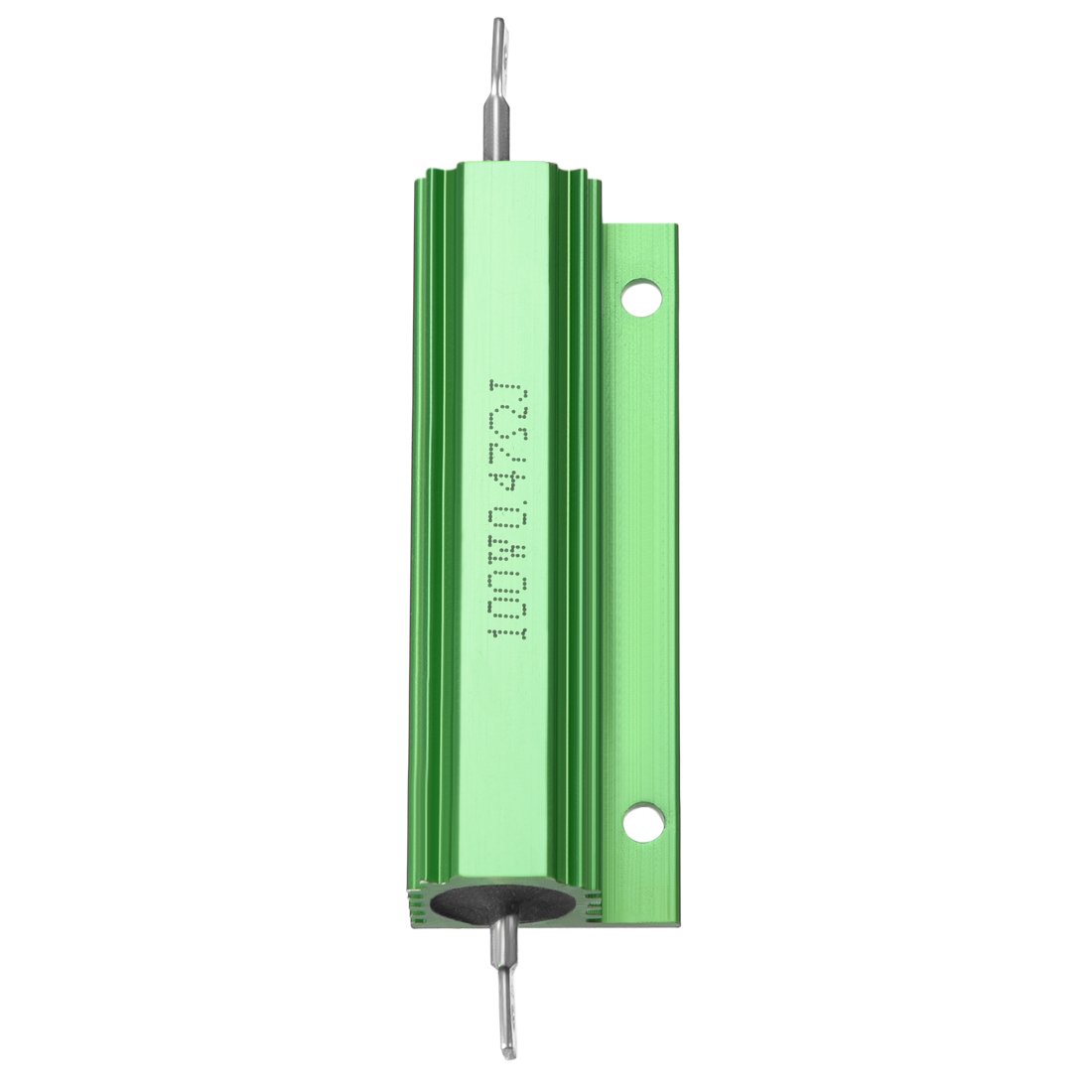

sourcingmap Aluminum Case Resistor 100W 0.47 Ohm Wirewound Green for LED Replacement Converter 100W 0.47RJ

• 100 Wattage and 0.47 Ohm, 5% tolerance. Wire Wound Resistor owns high stability and accuracy. Moreover, it was used for various application because of the wide resistance range.
• Aluminum Housed. An insulated cover on the wounded wires would block out the heat, which promises the high performance of a resistor. Hence, the cooling job was achieved by aluminum case.
• This 100W resistor formed with qualified copper, nickel, and aluminum. With the compact structure and heat dissipation design, a capability of overload has been built.
• Board length 2.32 inches(59mm) and two rods with 2mm hole for a soldering connection. Dia. 3.2mm antisymmetric anchoring hole for holding, which will fit #2 Screws(or M2.3 nuts)
• Reliable. Problems like the flush LED would have a perfect solution, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc.

100 Wattage and 0.47 Ohm, 5% tolerance. Wire Wound Resistor owns high stability and accuracy. Moreover, it was used for various application because of the wide resistance range.<br />Aluminum Housed. An insulated cover on the wounded wires would block out the heat, which promises the high performance of a resistor. Hence, the cooling job was achieved by aluminum case.<br />This 100W resistor formed with qualified copper, nickel, and aluminum. With the compact structure and heat dissipation design, a capability of overload has been built.<br />Board length 2.32 inches(59mm) and two rods with 2mm hole for a soldering connection. Dia. 3.2mm antisymmetric anchoring hole for holding, which will fit #2 Screws(or M2.3 nuts)<br />Reliable. Problems like the flush LED would have a perfect solution, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc.<br /><br />Specification:<br />Main Body Length: 59 mm/ 2.32 inches<br />Power: 100 Wattage<br />Rated Resistance: 0.47 R<br />Tolerances: 5%(J)<br />Connection Type: Rod terminals with hole<br />Rod Length: 12mm/0.47 inches<br />Screw Hole: 3.2mm(Fit #2 or M2.3 nuts)<br />Distance between screw hole: 45mm<br />Weight: 30g/1.05 Oz<br />Materials: Nickel alloys Wire Wound Resistor with Aluminum Case<br />Color: Green<br /><br />Package Content:<br />1 x 100W 0.47R Aluminum Housed Resistor<br />
