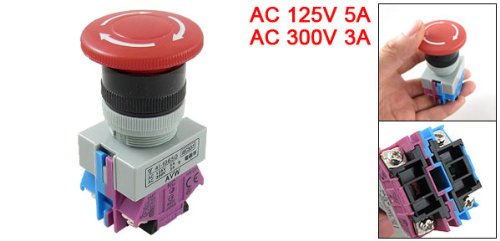

Sourcingmap AC 600V 10A Red Mushroom Emergency Stop Push Button Switch 22mm NO NC

• Item Name : Emergency Stop Push Switch;Type : Self Locking Rotary;Ith : 10A;Ui : 600V;Voltage Category : AC 125V, 5A; AC 300V, 3A;Button Diameter : 4cm/1.5"
• Contact Type : 1 NO (Normally Open) + 1 NC (Normally Closed);Mount Hole Diameter : 2.2cm / 0.87"(7/8");Fit Panel Thickness(Adjustable) : Max 0.6cm / 0.24"
• Size : 3.7 x 3 x 7cm/ 1.4" x 1.2" x 2.8"(L*W*H);Material : Plastic and Metal;Main Color : Red, Fuchsia, Blue, Gray
• The shell is made of flame-retardant PC material, anti-corrosion and waterproof; The contact is made of silver tin oxide with strong conductivity. The bottom is made of flame-retardant substrate with high temperature resistance
• Used widely to control the equipment, contactor, relay and other automatic control electric circuits.

Push to stop and lock, twist to reset. 4 screw terminals. The switches are structured compactly and operated quickly and gently. For emergency stop in industry with the conspicuous red mushroom cap.
