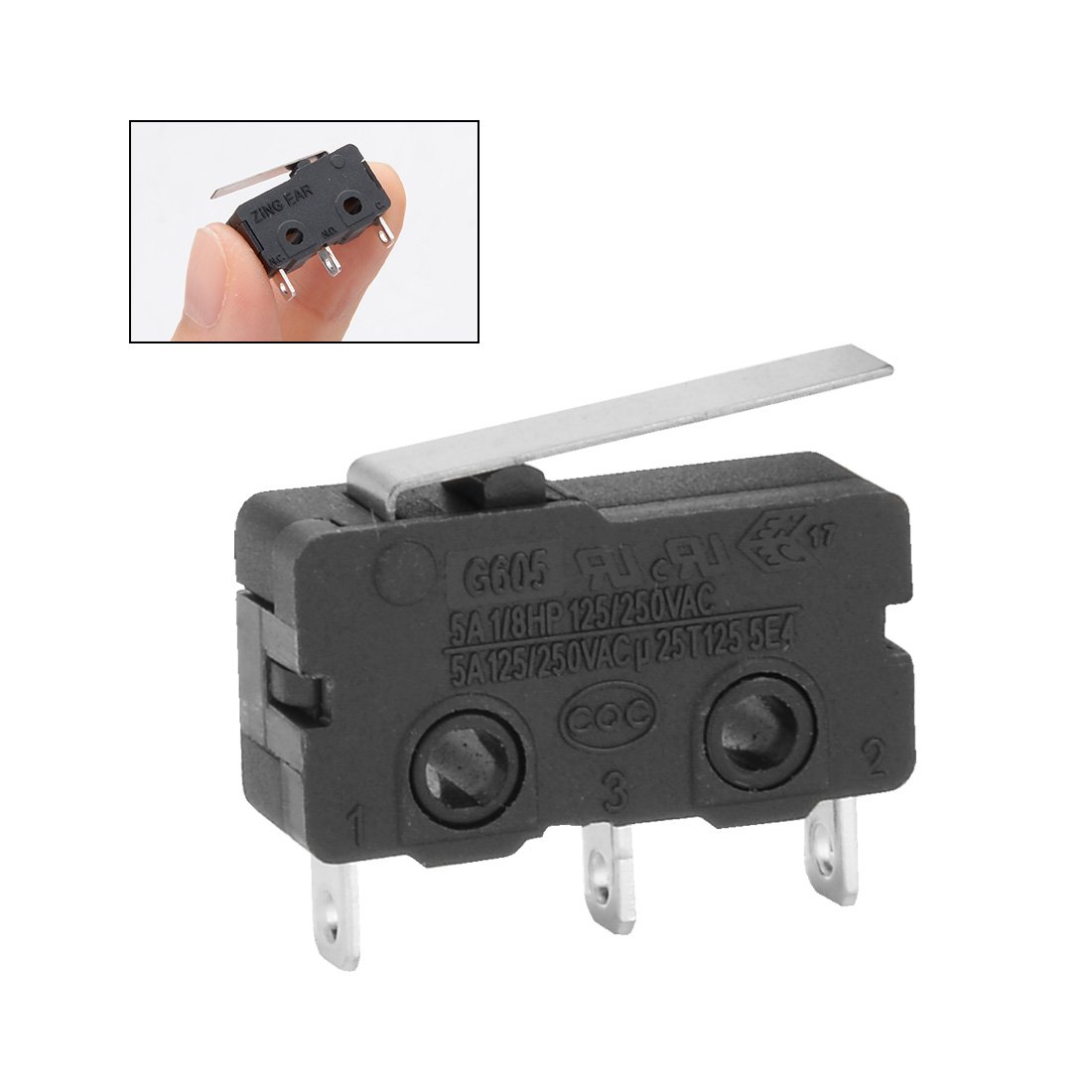

Sourcingmap AC 250V 5 Amp SPDT 1NO 1NC Short Straight Hinge Lever Mini Micro Switch (10 Piece)

• Product Name : Micro Switch;Action Type : Momentary;Contact Type : 1NO 1 NC

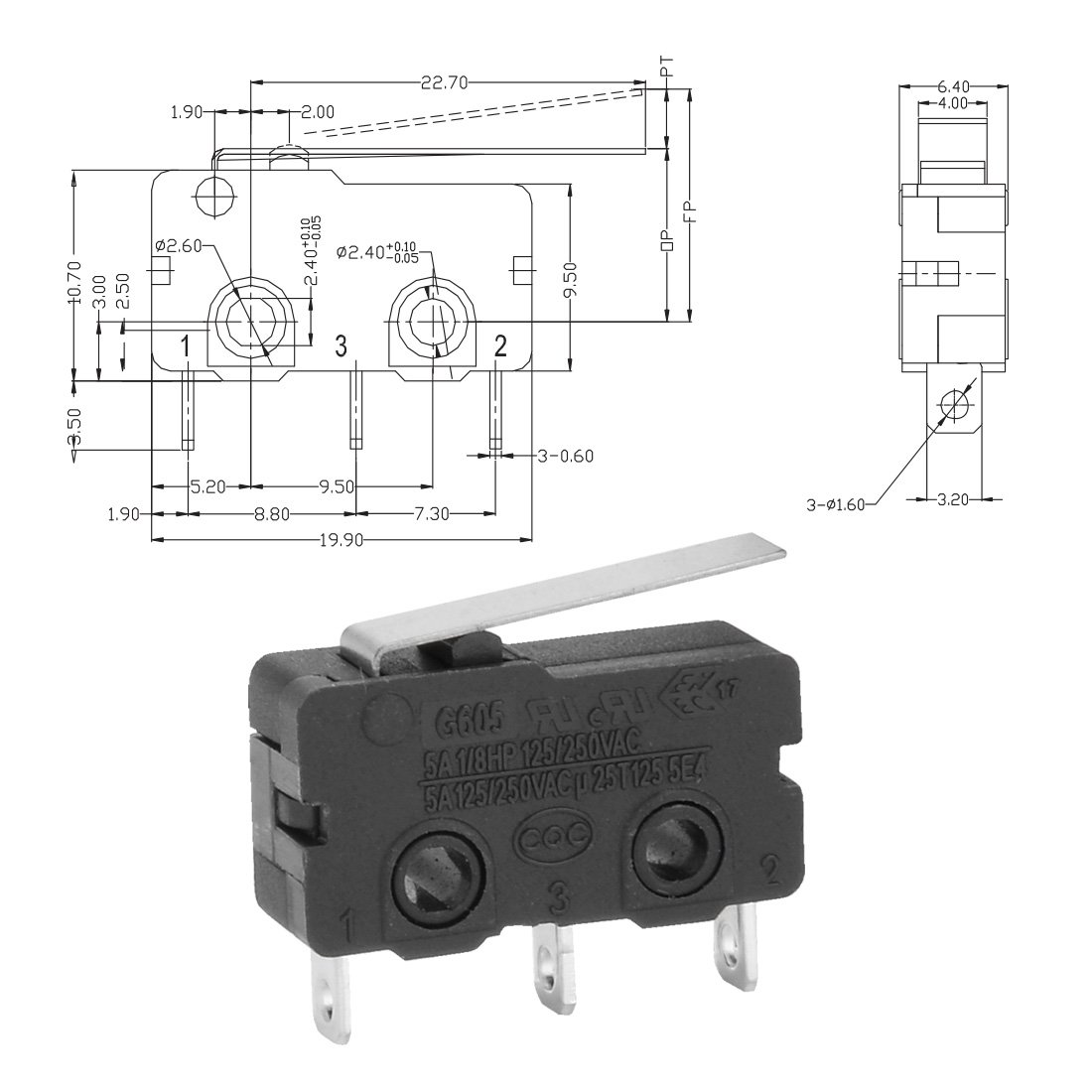

• Actuator Type : Roller Lever Hinge;Power : 5A/250VAC;Switch Body Size(Each) : 20x 10.3x 6.5mm(L*W*H)
• Lever Size : 14.5*1.9(L*W);Hole Size : 2.4mm
• Material : Plastic & Metal;Color : Black & Silver Tone
• Net Weight : 18g;Package Content : 10 x Micro Switch

Specification: Description: Features: Single Pole Double Throw (SPDT) Type, 1NO + 1NC Contact, Momentary Action, Lever Arm Actuator, 3 Terminals. Durable material construction, long using life. Easy installation. Widely used in electronic equipments, automatic machines, etc. In snap action contacts, the movement of the actuator applies force to an overcenter mechanism. This mechanism creates a quick change in contact state when the trip point is reached. Reversing the motion of the actuator to a given reset point causes the contacts to snap back to their original position. Snap action contacts have different trip and reset points. The distance between the trip and reset point is called the travel to reset, hysteresis, or differential. Finite travel to reset helps to avoid multiple changes of state if the object actuating the switch is subject to vibration. Snap action contacts ensure repeatable performance in applications that involve low speed actuators. The amount of travel of the contacts is also not dependent on the amount of travel by the actuator.
