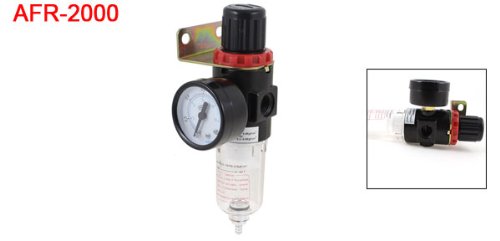

Sourcingmap A13061800ux0072 AFR-2000 Pneumatic Filter Regulator Air Treatment Unit W Pressure Gauge

• Product Name : Pneumatic Filter Regulator;Model : AFR-2000;Operating Fluid : Air;Max Pressure : 9.9kgf / cm2
• Adjustable Pressure Range : 0.5-9.0kgf/cm2;Bowl Material : Polycarbonate;Operating Temperature Range : 5°C -60 °C;Joint Pipe Bore : 1/4"PT
• Pressure Gauge Range : 0-1MPa, 0-10kgf / cm2;Total Size : 15.5 x 8.5 x 4.2 cm/ 6.1" x 3.3" x 1.7"(L*W*H);Pressure Gauge Thread Diameter : 10mm/ 0.39"
• Pressure Gauge Size : 4.1 x 2.4cm/ 1.6" x 0.98"(D*T);Mount Hole Size : 8 x 7mm/ 0.31" x 0.28"(L*W);Color : Black, Clear, Red, White
• Material : Metal, Plastic;Net Weight : 213g;Package Content : 1 x Pneumatic Filter Regulator1 x Pressure Gauge1 x Install Stand

Filter and regulator together as one part, make it has compact dimension. Filter adopts novel vane design with high division efficiency and differential pressure discharge device. It can discharge water automatically. Regulator valve adopts balanced inlet structure with the advantages of stable pressure, high precision, and quick reaction. Help filter liquid and foreign particles from compressed air line, widely used for pneumatic tool and components.
