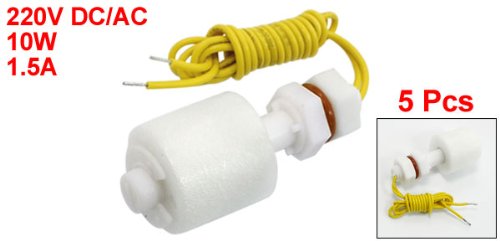

Sourcingmap 5pcs ZP4510 Liquid Water Level Sensor Vertical Float Switches

• Product Name : Water Level Sensor;Model No. : ZP4510;Max Contact Rating : Max Contact Rating;10W : 10W
• Max Switching Voltage : 100V DC/AC;Max Switching Current : 0.5A;Max Breakdown Voltage : 220V DC/AC;Max Carry Current : 1A
• Max Contact Resistance : 100m ohm;Temperature Rating : -10 / +85 degree;Float Ball Material : P.P;Float Body Material : P.P
• Thread Dia(Approx) : 9.5mm / 0.374";Switch Body Size : 23.3 x 57.7mm / 0.9" x 2.27"(Max D*H);Cable Length : 36cm / 14.2"
• Color : White;Net Weight : 70g;Package Content : 5 x Water Level Sensor

Specifications: Product Name: Float Switch Max Contact: Rating 10W Max Switching Voltage: 100V DC Max Switching Current: 0.5A Max Breakdown Voltage: 220V DC Max Carry Current: 1.0A Max Contact Resistance: 100mohm Temperature Rating: -10 ~ +60 C / 85 C Float Ball Material: PP Body Material: PP Float Ball Size(Approx): 22 x 24mm(L*D) Thread Dia(Approx): M9mm Body Total Length: 58mm Cable Length: 37cm Color: White Net Weight: 8g Package Content 5 x Float Switch Description: 1.A float switch is a device used to sense the level of liquid within a tank. 2.The switch may actuate a pump, an indicator, an alarm, or other device. 3.It can be easily converted from normally open to normally close by inverting the float. 4.Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here. Feature: 1.This float switch is a simple structure,easy installation liquid level controller.
