Sourcingmap 5 Pcs 8 Pin PCB 3 Position On/On/On DP3T 2P3T Panel Mini Slide Switch

• Product Name : Slide Switch;Model : SS23E04-G5;Type : 2P3T;Contact Type : 3 Position, On/On/On

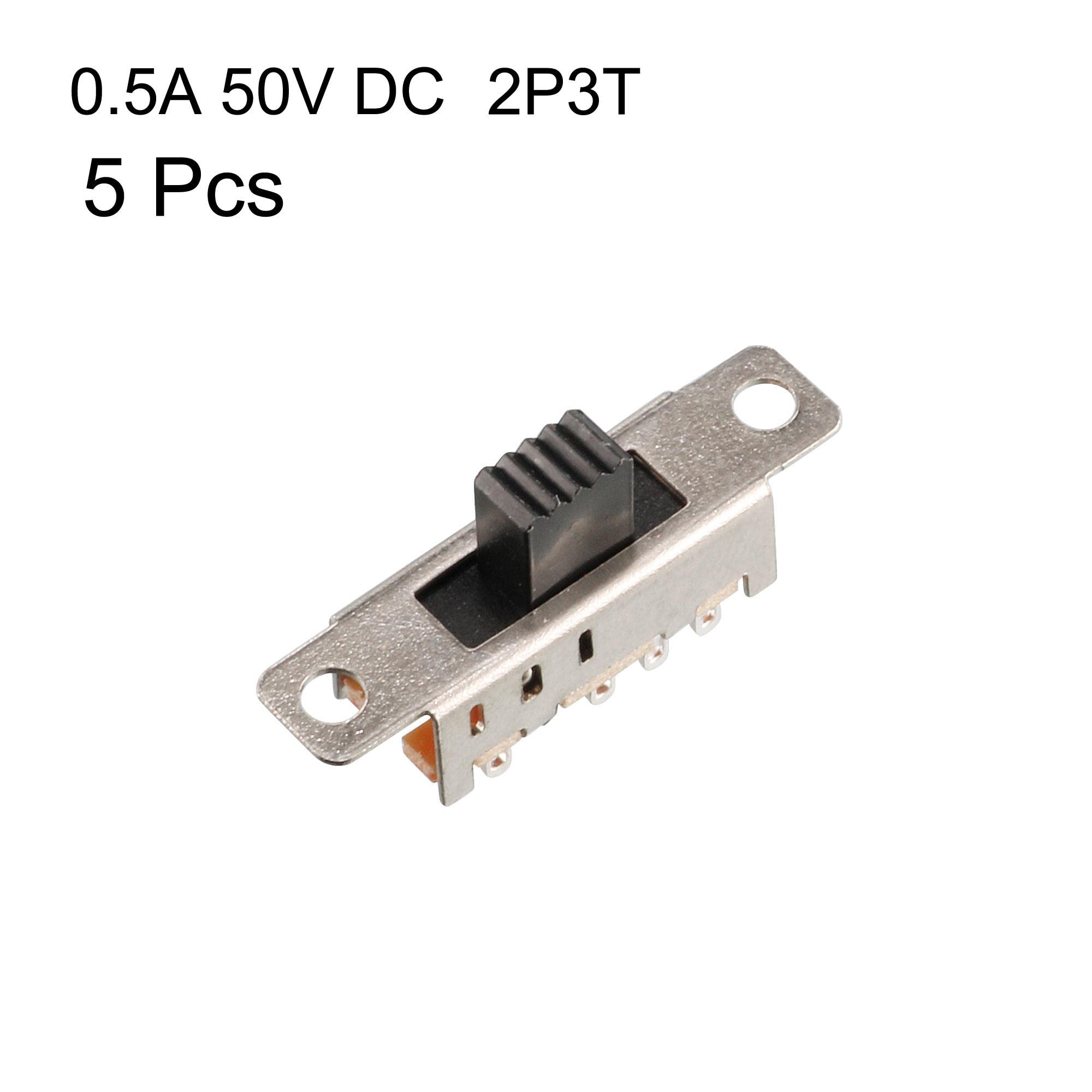

• Terminal Quantity : 8;Working Power : 0.5A 50V DC;Contact Resistance : 30mΩ Max;Insulation Resistance : 100mΩ Min at 500V DC

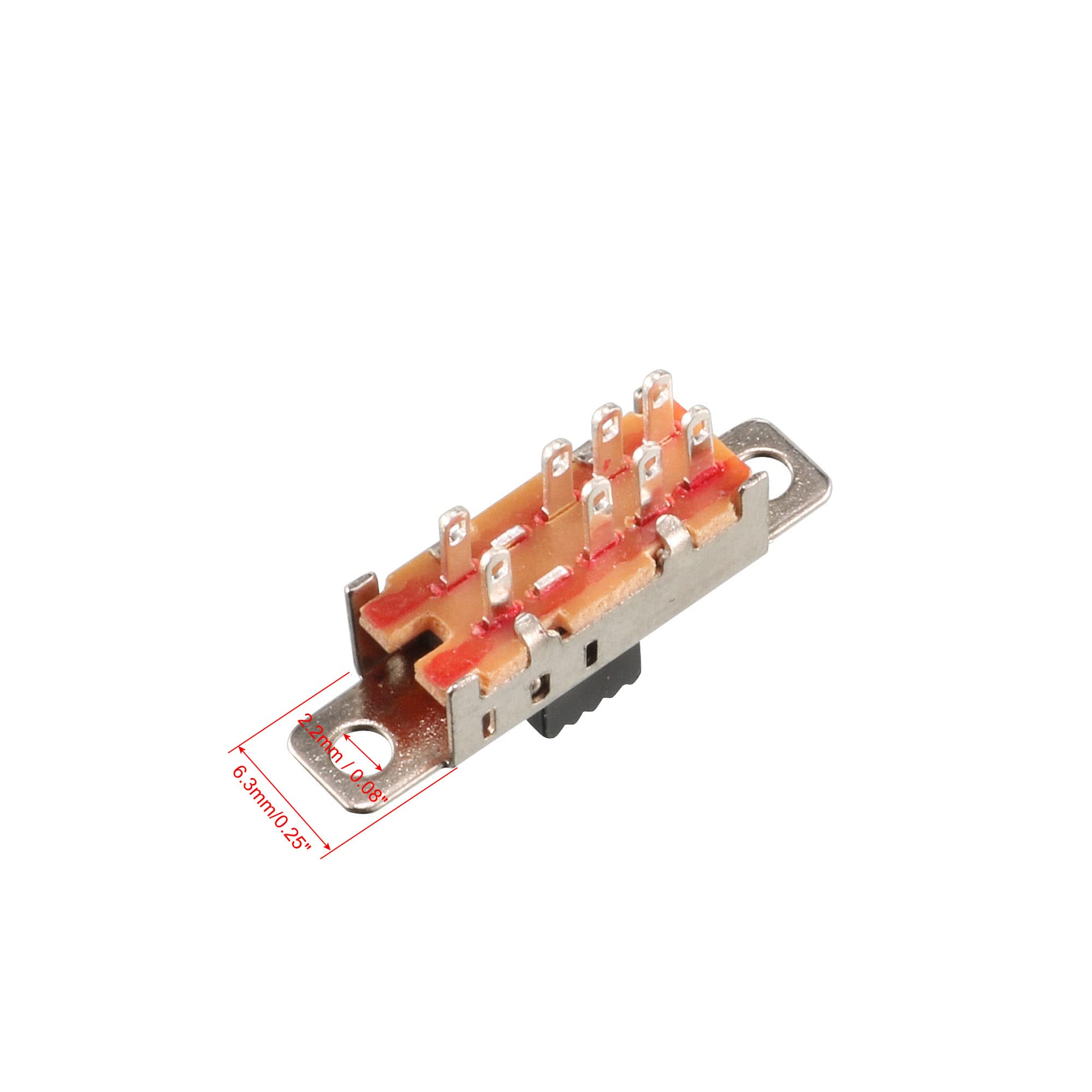

• Withstand Voltage : AC 500V for 1 min;Mounting Type : Through Hole;Hole Diameter : 2.2mm / 0.08";Pin Size : 1.7 x 4mm / 0.06" x 0.16"( L * W)

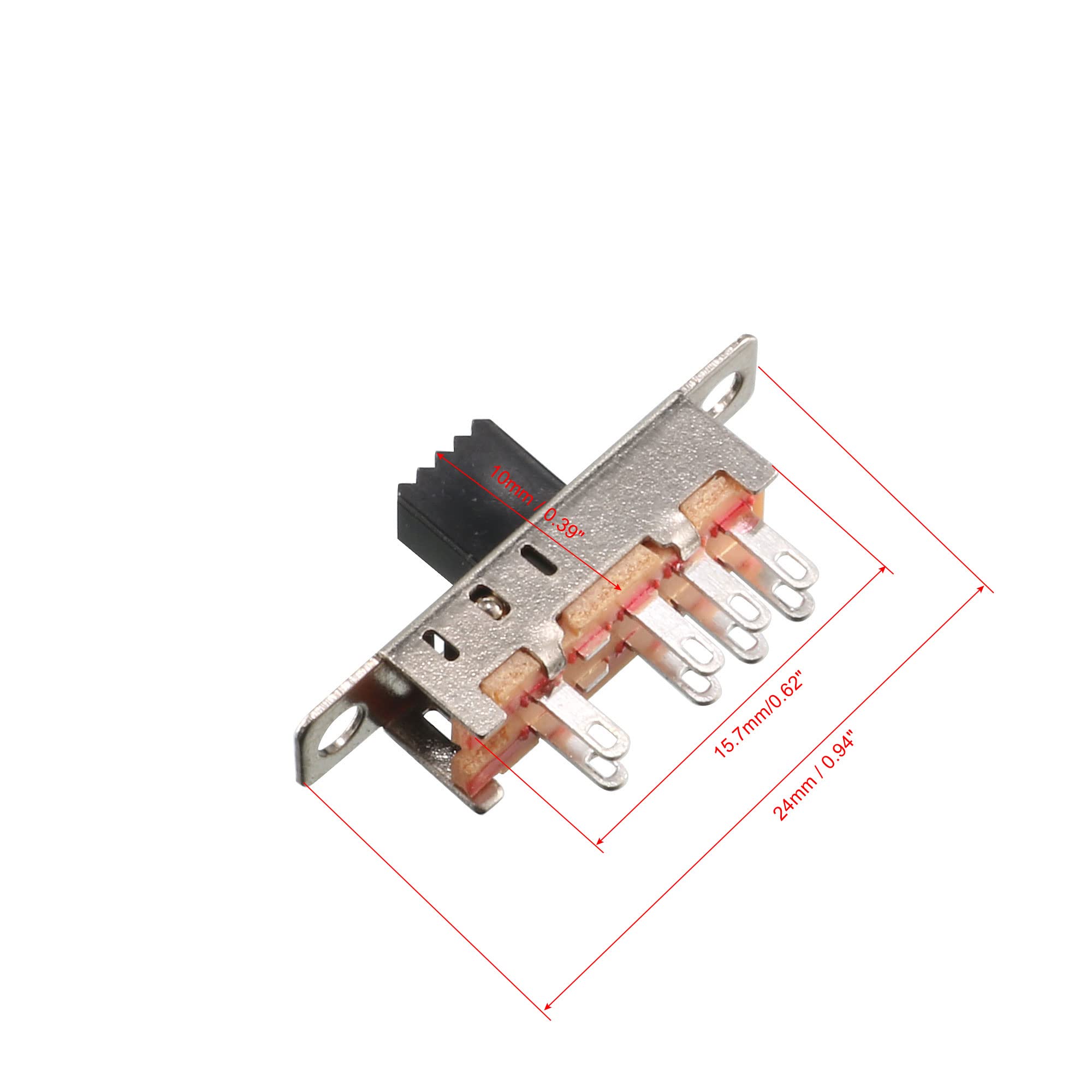

• Pin Pitch : 1.2mm/ 0.047" & 3.5mm/ 0.14";Switch Total Size : 24 x 6.3 x 12mm / 0.94" x 0.25" x 0.47" (L * W* H);Knob Size : 5 x 3 x 5mm / 0.2" x 0.12" x 0.2" (L * W * H);Material(External) : Plastic, Metal, Electronic Parts
• Main Color : Silver Tone, Black;Weight : 6g;Package Content : 5 x Slide Switch

Features: Easy Structure, Mini Body, 8 Terminal, Vertical Handle,2 Pole 3 Position, Sliding Knob Actuator.Widely used to control operation of many small power electronic projects, including volume and other controls for dimmer controls for lights. etc.Also a great component for DIY.
