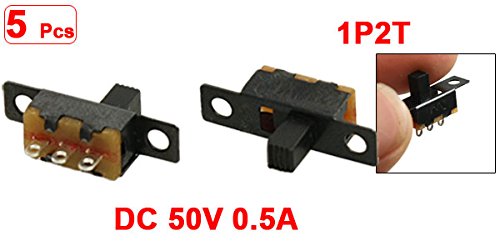

Sourcingmap 5 Pcs 50V 0.5A 3 Pin 2 Position On/Off 1P2T SPDT Slide Switch 3 Pin

• Product Name : Slide Switch;Model No. : SS12F15-G5;Type : 1P2T;Contact Type : 2 Positions, On/Off
• Pins Quantity : 3 Pins ( Single Row );Rating : DC 50V, 0.5A;Contacts Resistance : 30MΩ;Insulation Resistance : 100MΩ
• Minimum Load : DC 500V;Dielectric Strengths : AC 500V / 1 minute;Life Test : 10000 cycles/ minute;Overall Size : 19.8 x 5.6 x13mm/ 0.78" x 0.22" x 0.51" (L*W*H)
• Pin Size : 3 x 1.5mm/ 0.12" x 0.06" (L*W);Pins Pitch : 1.4mm/ 0.055";Knob Size : 3 x 3 x 5mm/ 0.12" x 0.12" x 0.2" (L*W*H);Mounting Hole Dia : 2.2mm/ 0.087"
• Material : Plastic, Metal, Electronic Parts;Color : Black;Weight : 5g;Package : 5 x Slide Switch

Slide Switch is for changing circuit by sliding the mini handle of the switch to control the circuit to be ON or OFF. The Slide Switch is widely used in the electric, sound equipment, fax, test instrument equipment, or other low voltage circuit electronic equipment. This Slide Switch is with welding pin type terminals design for easily welding onto the circuit. ON-ON type 2 Positions.
