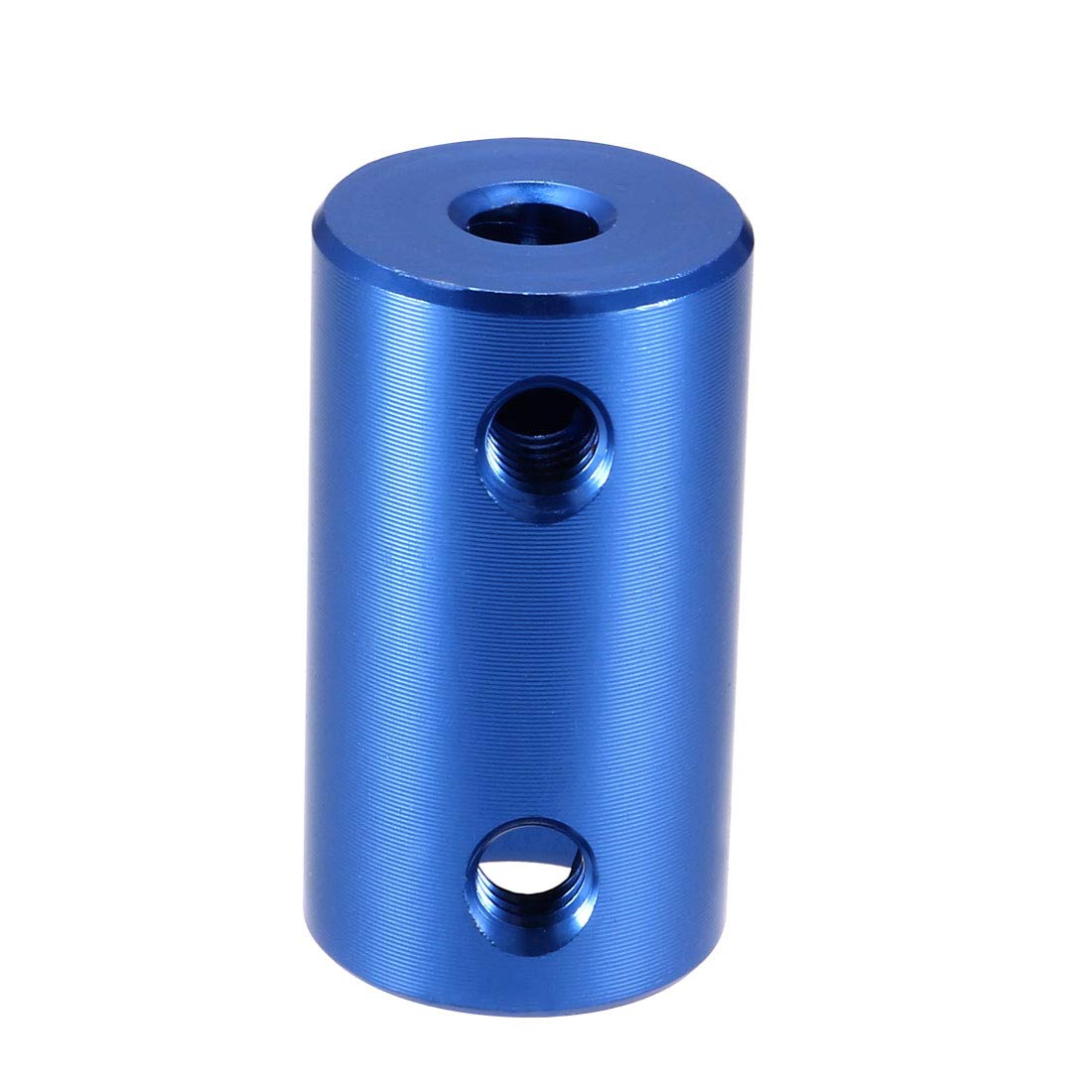

sourcingmap 4mm to 8mm Bore Rigid Coupling Set Screw L25XD14 Aluminum Alloy,Shaft Coupler Connector,Motor Accessories,Blue w Wrench

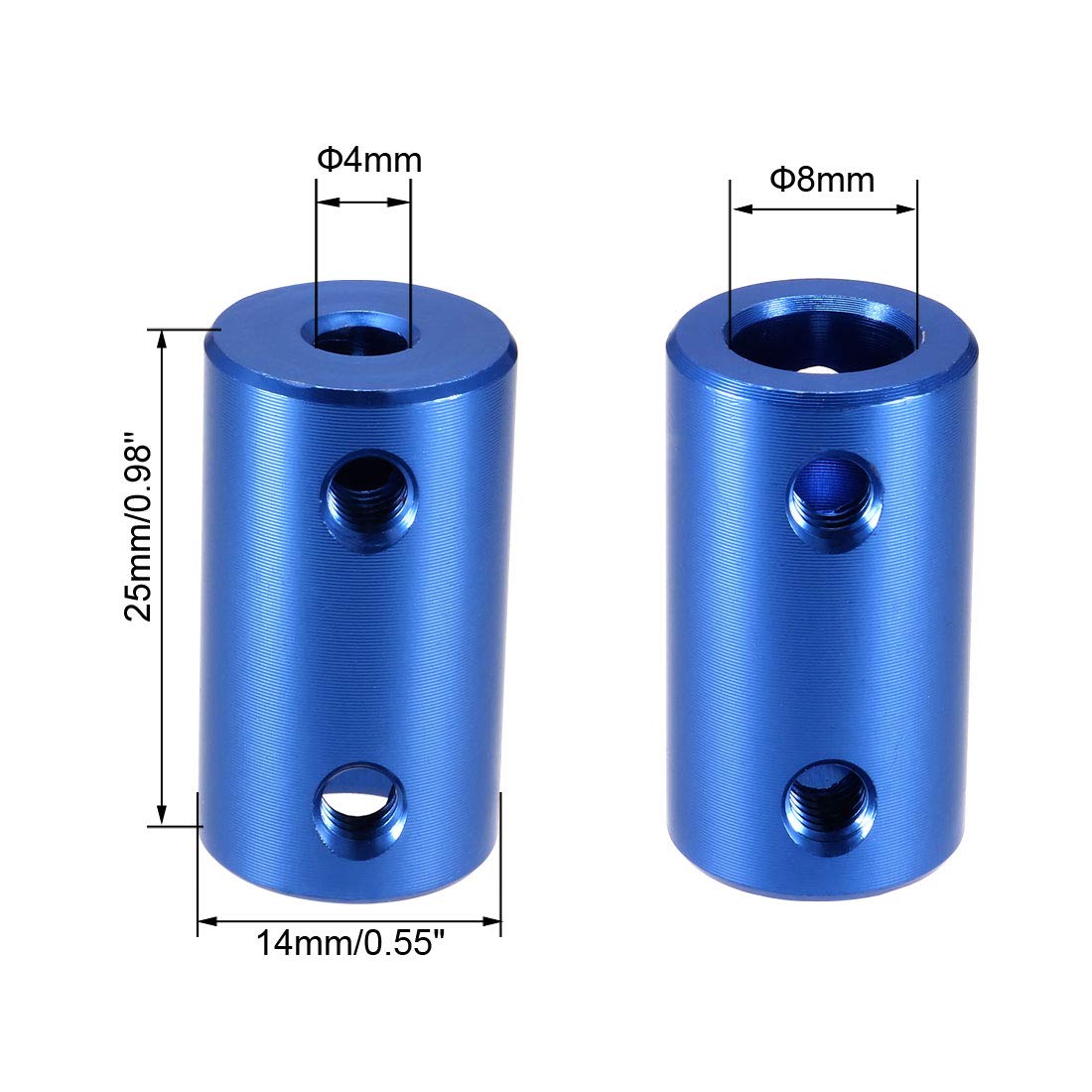

• Connection Bore Diameter: 4mm to 8mm; Total Size:25x14mm/0.98''x0.55''(LxD).
• Widely used in blowers,3D printer,DIY robots,CNC machine,stepper motors,etc. Similar to rigid clamp couplings, shaft couplers are used to hold bearings and sprockets tightly on the shaft, and are used in motor and gearbox assemblies.
• Top tight type rigid coupling with 2/4 screws to hold the shaft tightly; high torque with rigidity, low inertia and excellent sensitivity.
• NOTE: The rigid type basically does not allow eccentricity, and it must be fully adjusted during use.
• Single piece set screw clamp design makes it easy to set up the items on the shaft and control the holding capacity of the coupling.

Description: Made of high-strength aluminum alloy with integrated structure,maintenance-free, oil proof and corrosion resistance. Top tight type rigid coupling,high torque with rigidity, low inertia and excellent sensitivity. No rotation gap, elastic action can make up for symmetrical angular misalignment. Suitable for motor, model car, model boat, hardware, mechanical drive situations, electric car toy, robot, etc. Specification: Color: Blue Material: Aluminum Alloy Total Size: 25x14mm/0.98''x0.55''(LxD) Connection Bore Diameter: 4mm to 8mm Package Content: 1 x Coupling Joint 1 x Hexagon Wrench Some Screws
