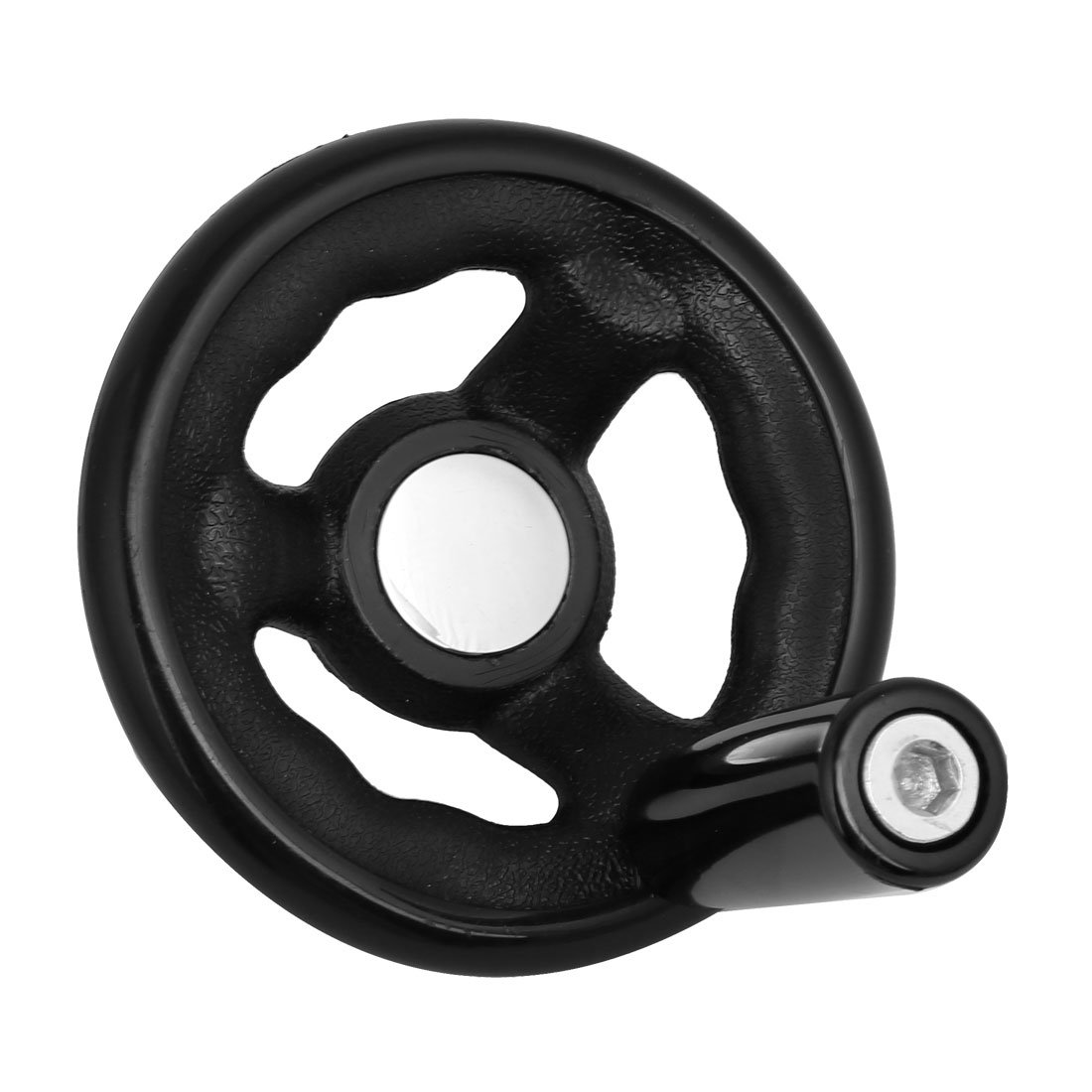

Sourcingmap 4-inch Diameter Plastic Round Hand Wheel W Revolving Handle

• Modern-design Hand Wheel, polished rim. Widely used in industrial machine tools, such as milling machine, lathes, grinders etc.

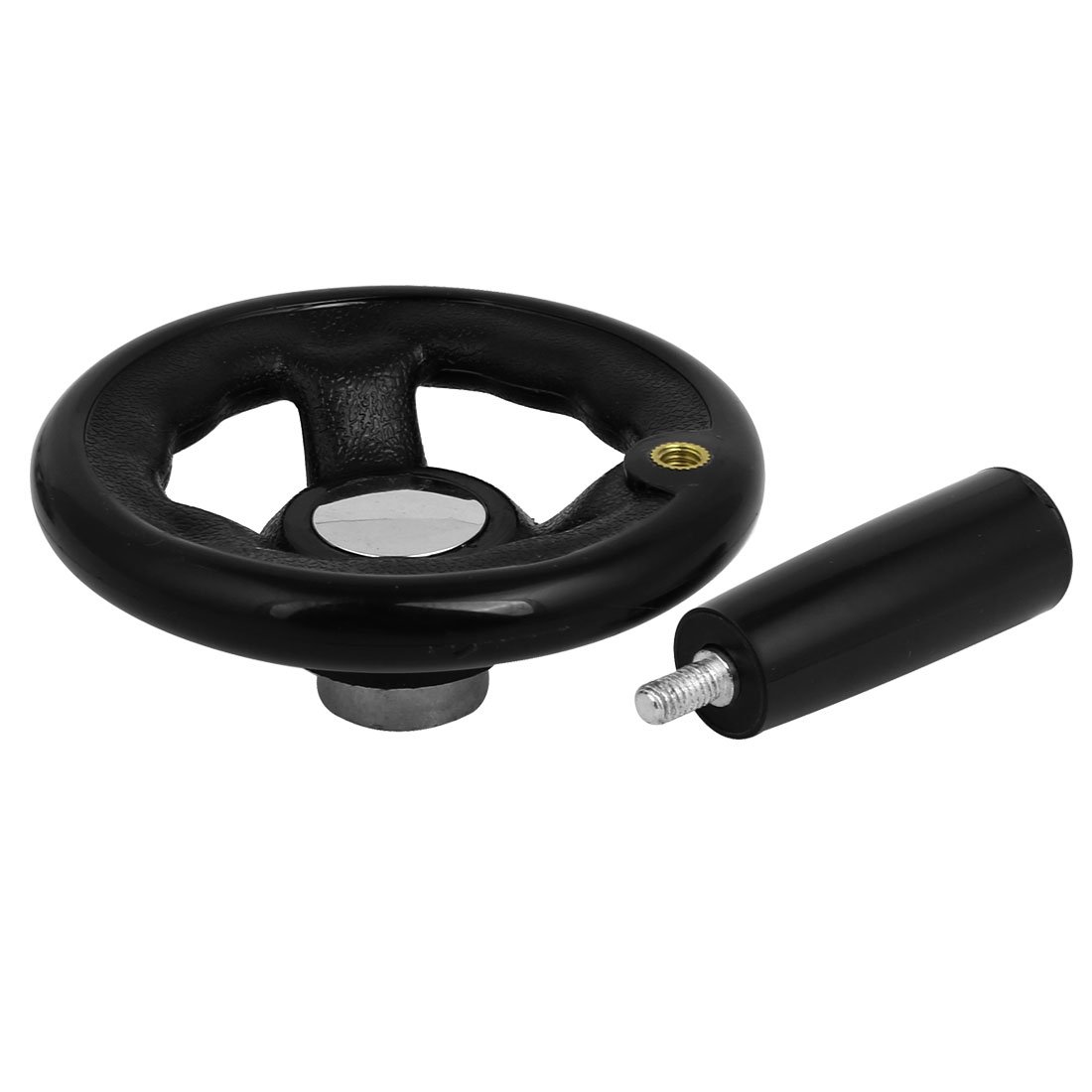

• Design with revolving handle, hand wheel has threaded hole for easy handle assembly.
• These Hand Wheels are bored to the shaft diameter for their size, and are also tapped for a Removable Handle.
• Handwheel is good for any application where general or precise adjustments need to be made a turning mechanism.
• Wheel Total Height: 47mm / 1.85"; Handle Size: 62 x 22 / 2.44" x 0.87"(L*Max.D ) ;Handle Thread Diameter: M6;Handle Thread Length: 12mm/0.47"; Fixing Thread Hole Size: M6 ( Fixing screws are not included here.)

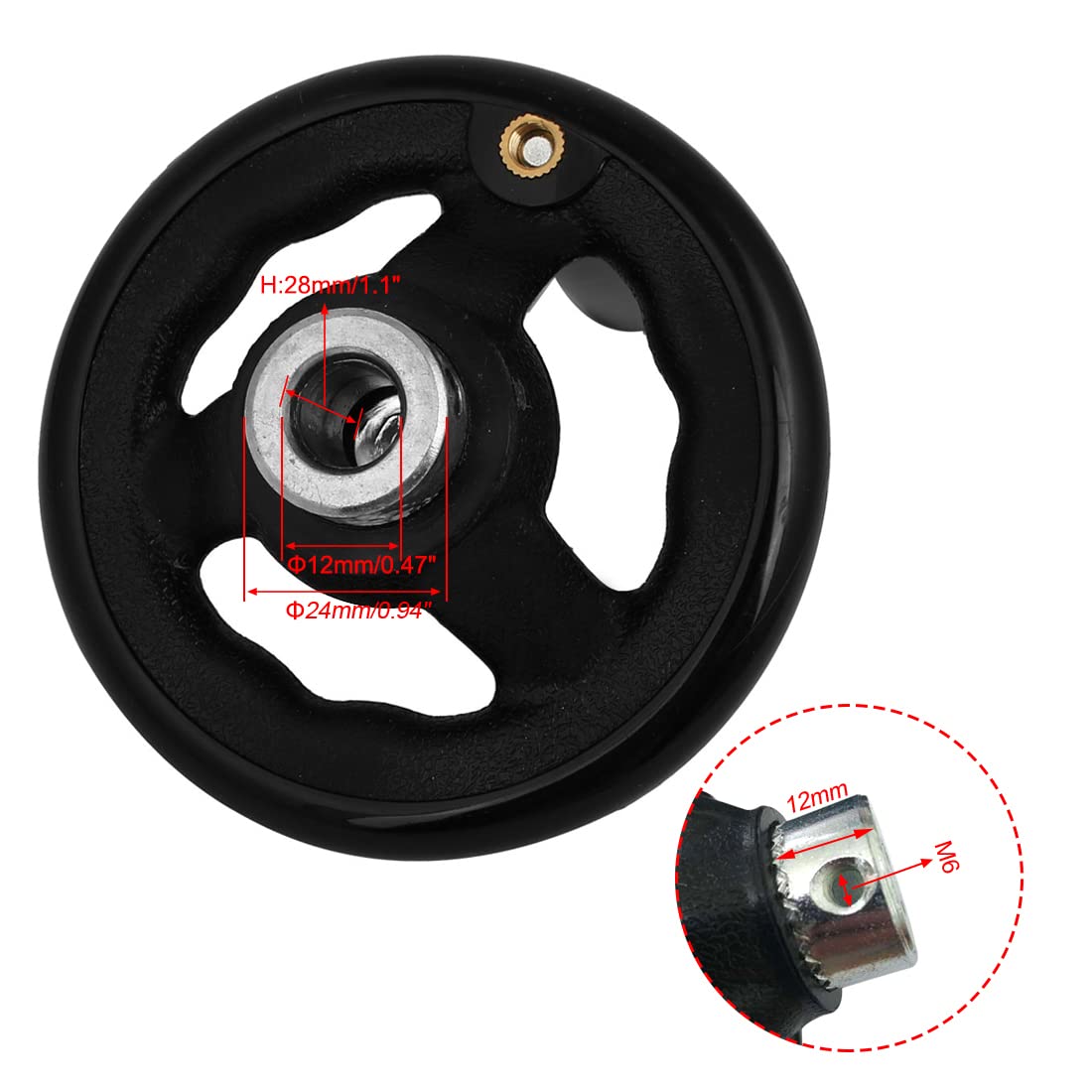

1. Modern-design Hand Wheel, polished rim. 2. Design with revolving handle, hand wheel has threaded hole for easy handle assembly. 3. These Hand Wheels are bored to the shaft diameter for their size, and are also tapped for a Removable Handle. 4. Handwheel is good for any application where general or precise adjustments need to be made through a turning mechanism. 5. Widely used in industrial machine tools, such as milling machine, lathes, grinders etc. 6. Install and remove the handle with a hex wrench hex size 5mm. Specification: Product Name: Round Hand Wheel Package Content: 1 x Round Hand Wheel, 1 x Removable Handle Main Color: Black, Silver Tone Material: Plastic , Metal Spoke: 3 Wheel Diameter: 100mm / 4-inch Center Bore Dimention：12x28mm/ 0.47"x1.1"(D*H) Wheel Total Height: 47mm / 1.85-inch Handle Size: 62 x 22mm / 2.44-inch x 0.87-inch(L*Max.D ) Handle Thread Diameter: M6 Handle Thread Length: 12mm/0.47-inch Hex Width 6mm/0.24-inch Fixing Thread Hole Size: M6 ( Fixing screws are not included here.)
