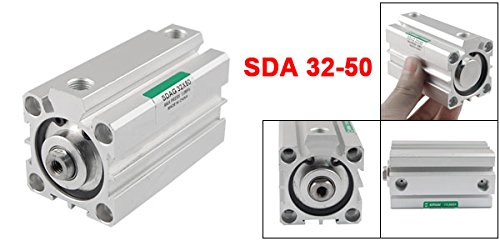

Sourcingmap 32mm Bore 50mm Stroke Aluminum Alloy Double Action Air Cylinder

• Product Name : Air Cylinder;Model : SDA 32-50;Action Type : Double Action
• Bore : 32mm/1.3'';Stroke : 50mm/2'';Max Presssure : 1.0Mpa
• Port Dia.(Approx) : 8mm/0.3'';Center Threaded Hole Dia(Approx) : 5mm/0.2'';Piston Rod External Diameter : 12mm/0.5''
• Mounting Thread Diameter : 5mm/0.2'';Overall Size(Approx) : 50 x 44 x 83mm/2'' x 1.7'' x 3.3'' (L*W*H);Material : Aluminum Alloy
• Weight : 288g;Package Content : 1 x Air Cylinder

32mm bore and 50mm stroke, 1.0Mpa pressure, double action and single rod. Air cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.
