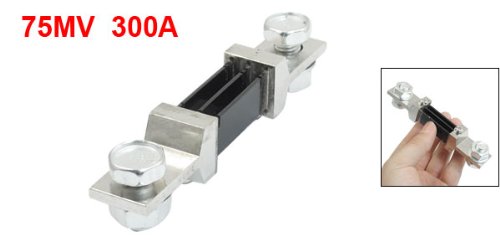

Sourcingmap 300A 75mV DC AC Current Shunt Resistor for Digital Ampere Analog Meter

• Corrosion Proof. Antirust metal meets sturdy connection, stable, durable and reliable.
• Voltage Drop: 75mV. Fit 75mV DC Ameter
• Rated Current: 300A
• Length: 4.72 inches, Weight: 6.6 oz
• Model: FL-2, Accuracy: 0.5

The shunt resistor is a device which could help DC ammeter for measuring high current. Technically, a shunt needs to be connected in parallel with the ammeter (Current division in parallel circuit) Shunt Resistor helps the ammeter to bypass majority of current. Based on the principle of Ohm Law, the current could be calculated by DC ammeter when a shunt drops the voltage. If there were any challenges might confuse you. (E.g. wiring diagram) Our technical support team would be delighted for assisting. Feature: Rated Current: 300A Voltage Drop: 75mV Weight: 188g / 6.6Oz Length: 120mm / 4.72 Inch Model: FL-2 Accuracy: 0.5
