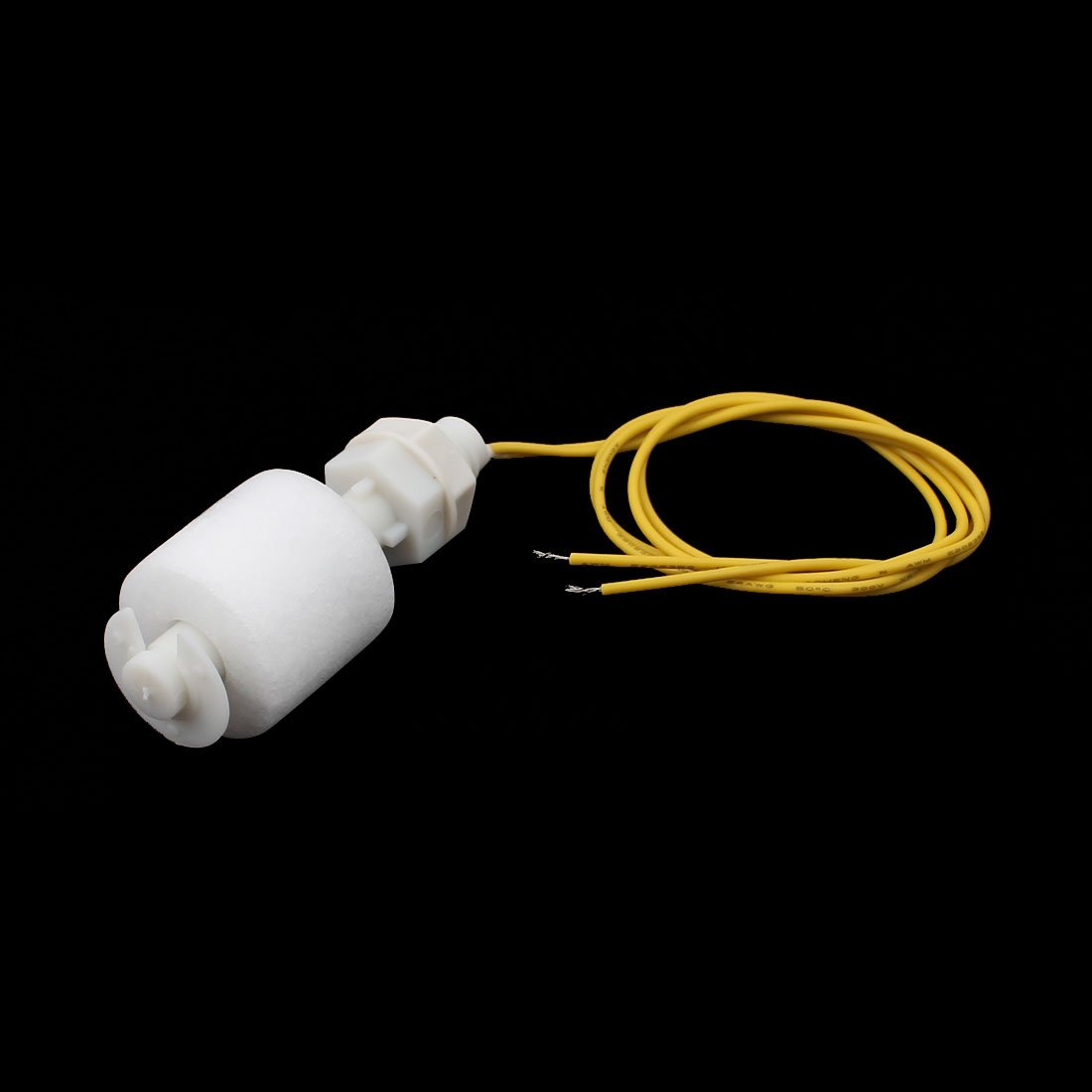

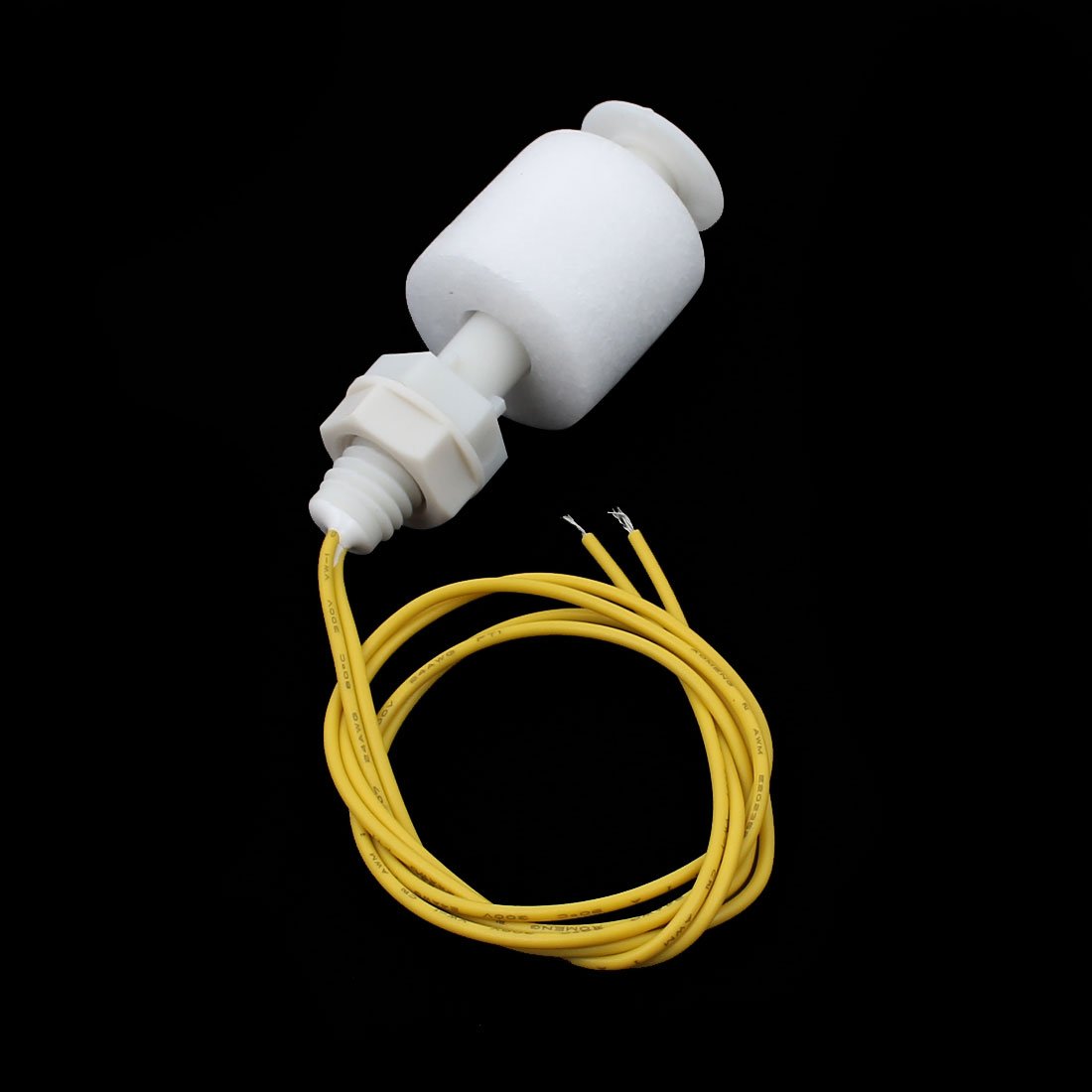

sourcingmap 3 Pcs ZP4510 Liquid Water Level Control Sensor Straight Float Switch

• Float Ball Size(Approx): 22 x 24mm / 0.87" x 0.94" (L*D); Body Total Length: 59mm / 2.32"; Country of Manufacture: CHINA; Material: Metal,PP

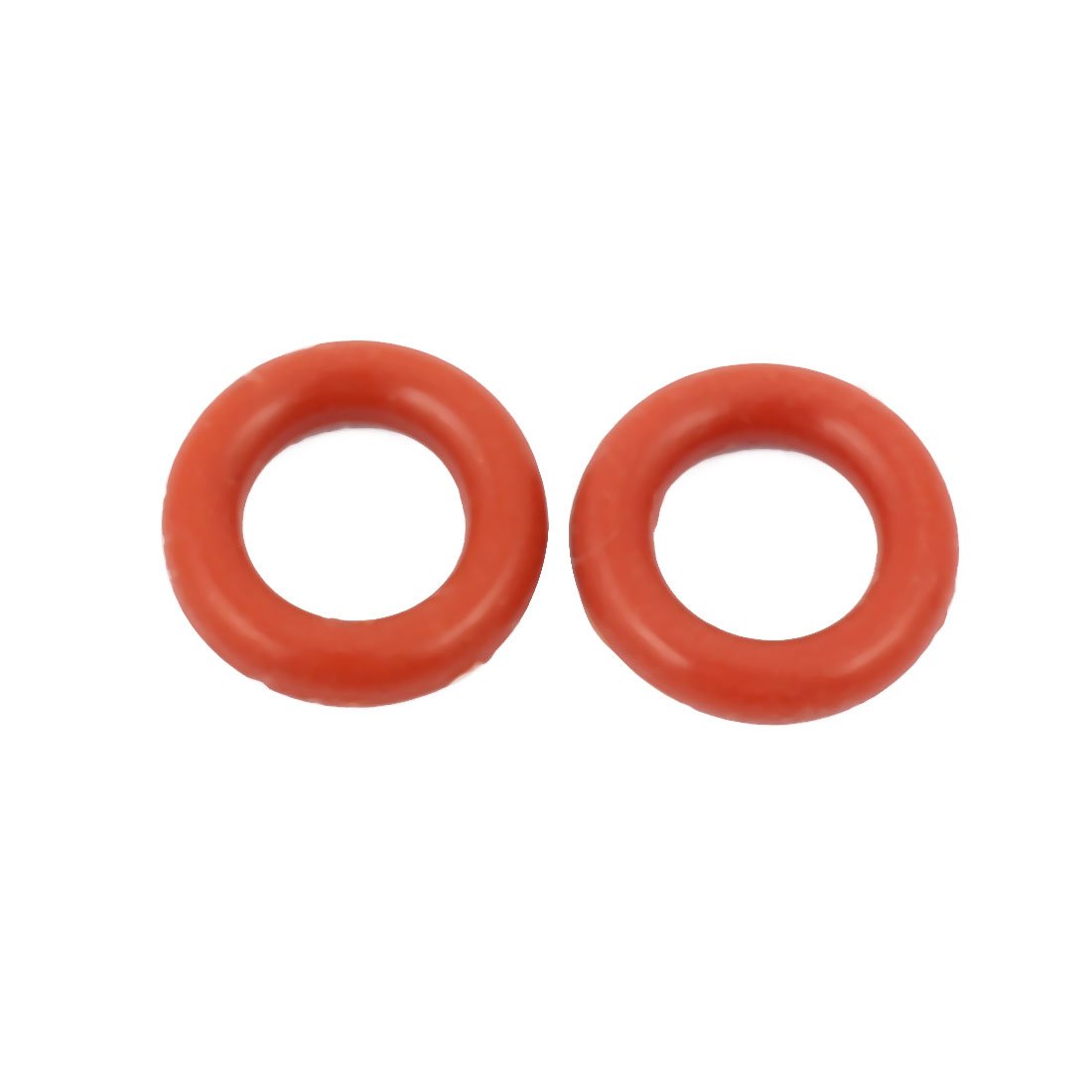

• Net Weight: 42g; Package Content: 3 Pcs x Float Switch, Some Installing Parts; Model: ZP4510; Main Color: Yellow, White
• Max Power: 10W; Max Switching Voltage: AC/DC 220V; Max Switching Current: 1.5A; Max Breakdown Voltage: AC/DC 300V
• Max Loading Current: 3A; Max Contact Resistance: 100m Ohm; Rated Temperature: -10~85C
• Cable Length: 36cm/14.4"; Overall Size: 24 x 59mm/1" x 2.4"(Max.D*H); Screw Thread Diameter: 9mm / 0.35"

A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device. It can be easily converted from normally open to normally close by invertin the float. Note: because the current that the switch can carry is much little(above 0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
