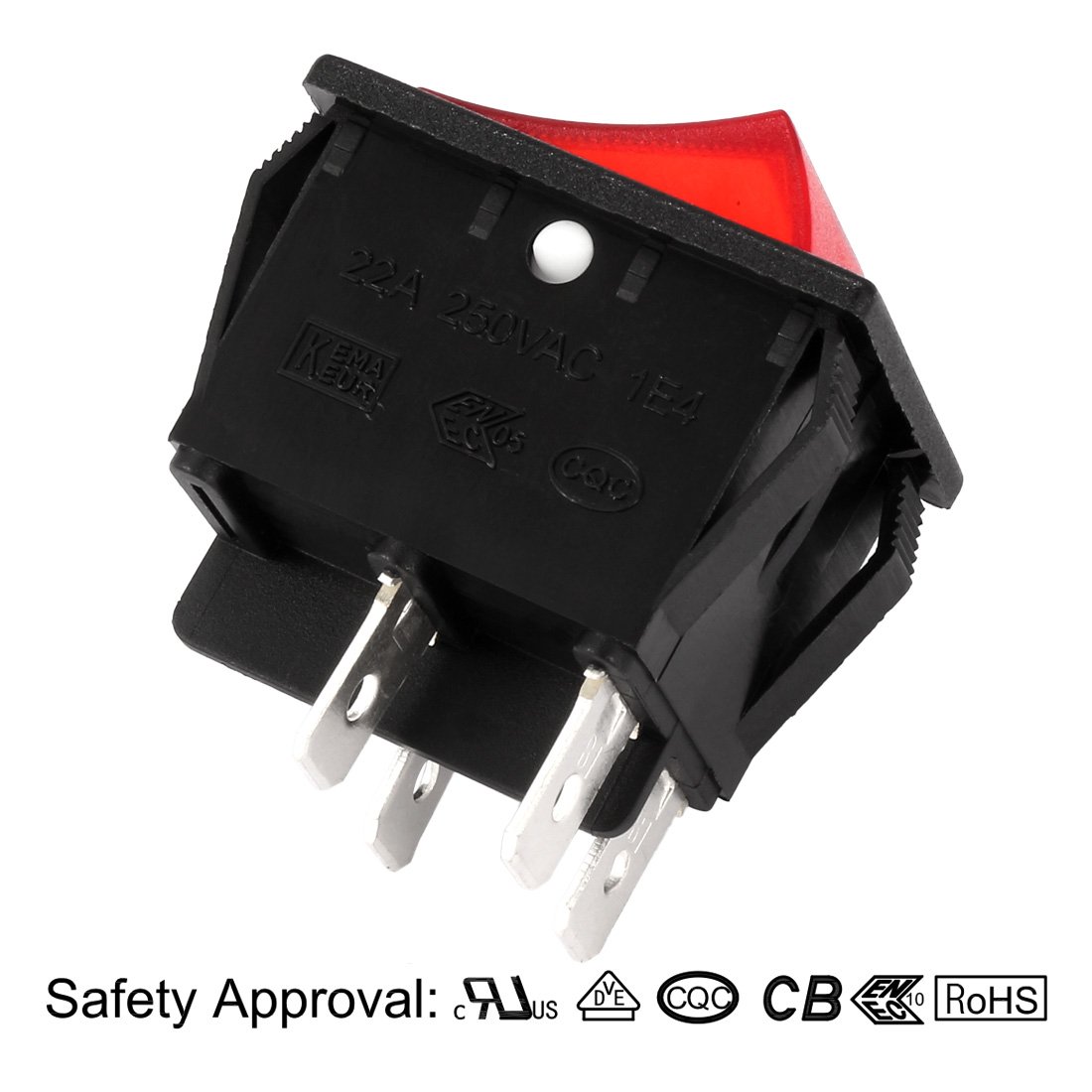

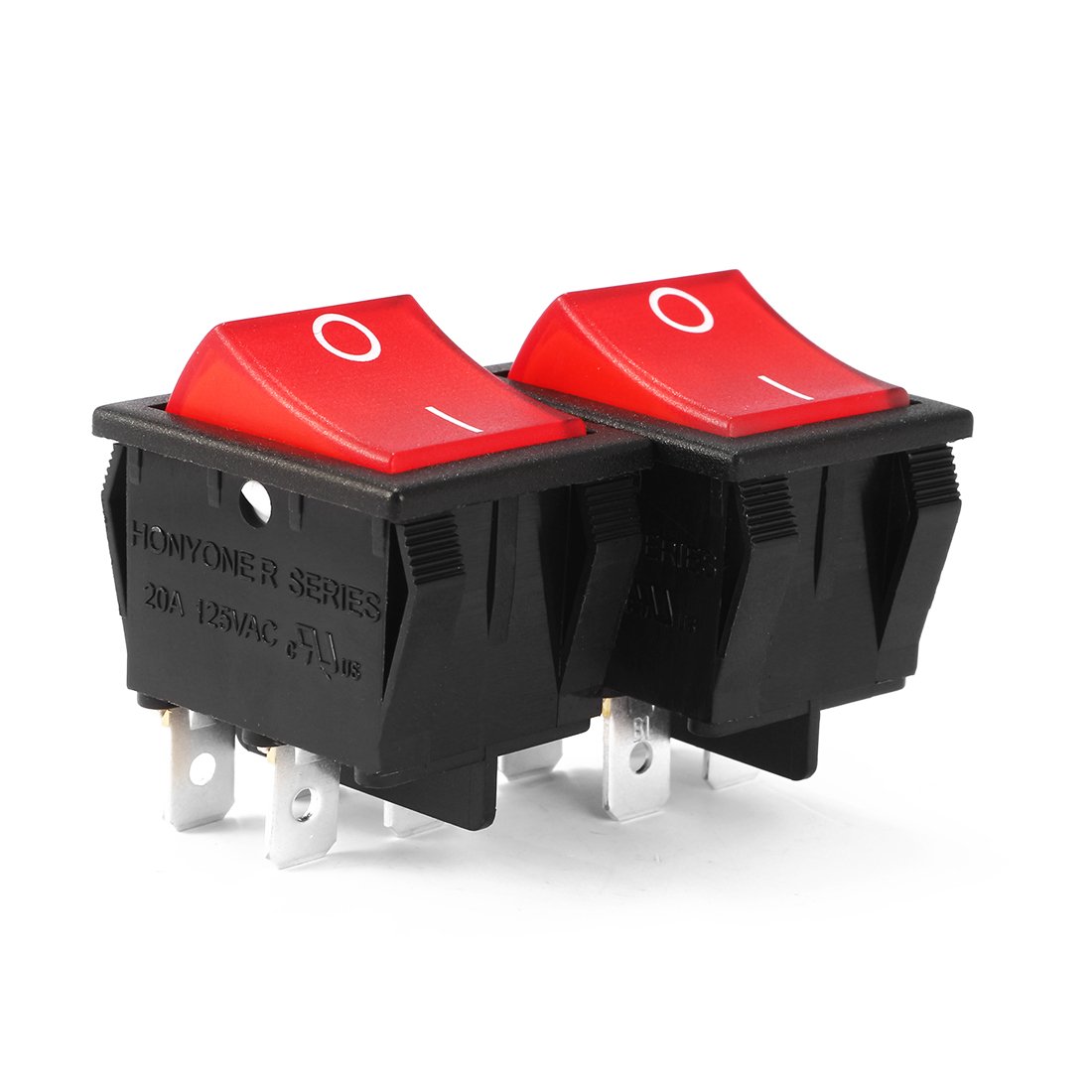

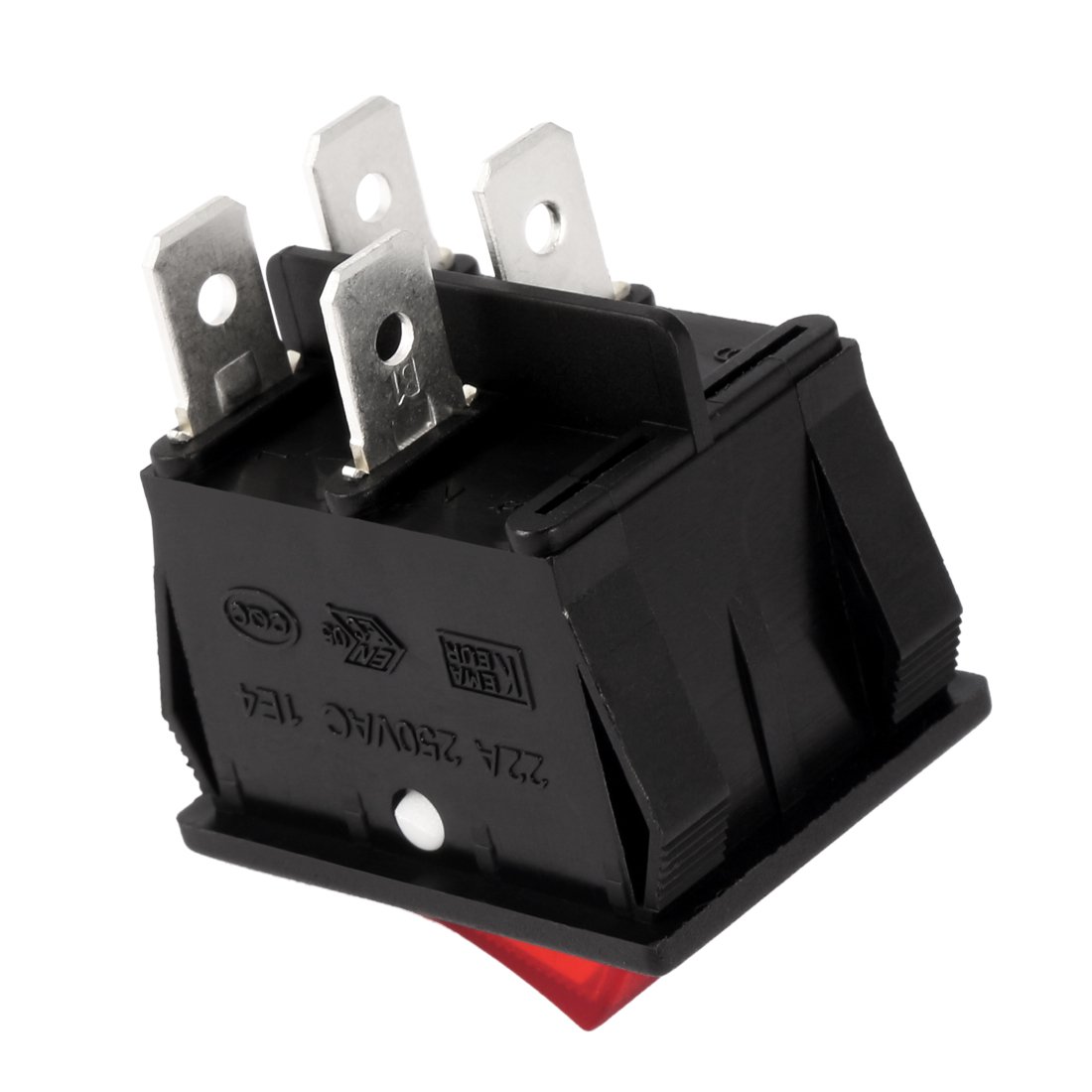

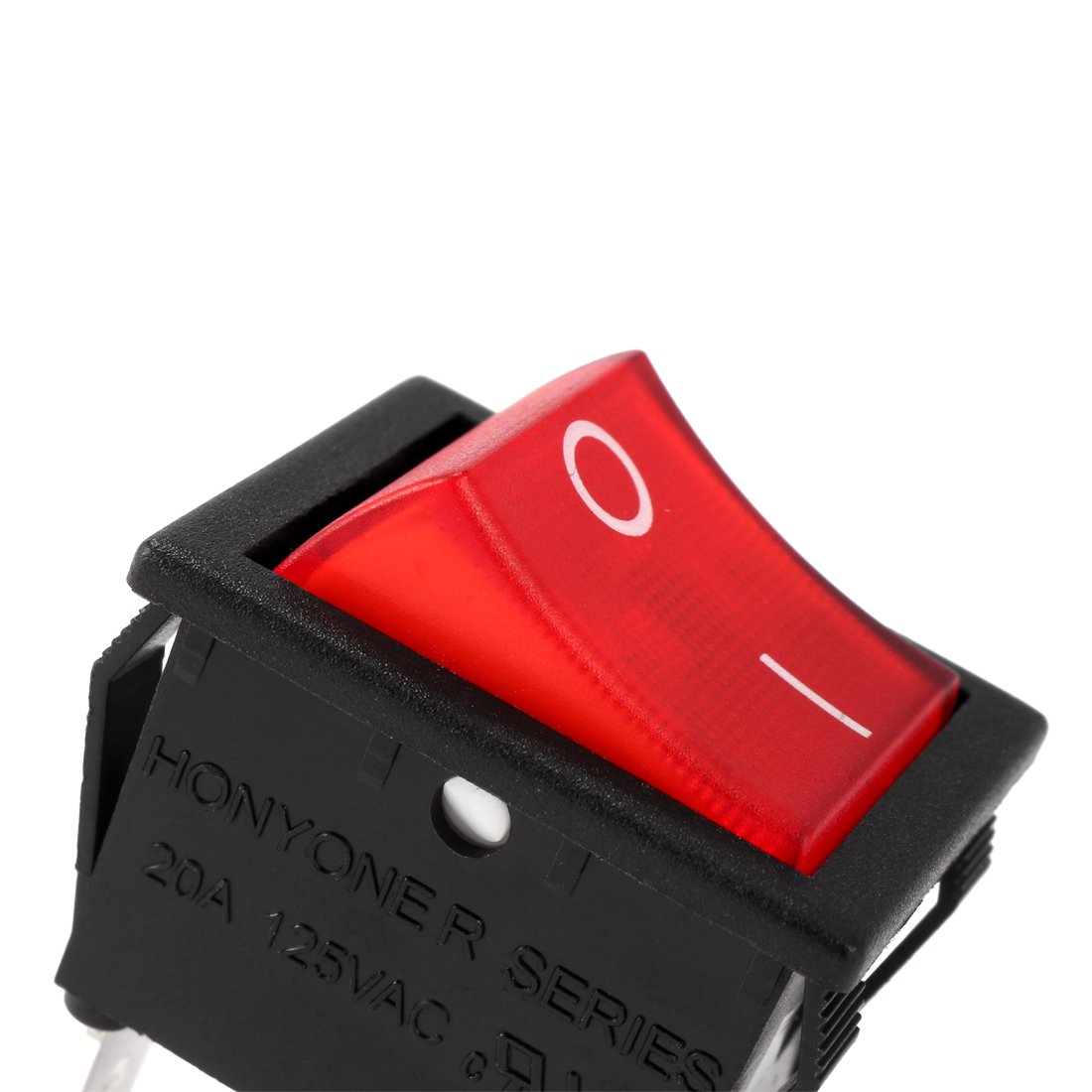

Sourcingmap 2Pcs AC 20A/125V 22A/250V DPST 4 Pins 2 Position I/O On Off Button Red Backlit Light Boat Rocker Marine Push Button Switch

• 【Wide Application】Universal for Electromagnetic furnace, Water dispenser, buses, boats, marine, trailers，kitchen appliance etc.
• 【DIY As You Like】4 Terminal,Voltage & Current : AC 125V/20A 250V/22A gentle lighting, longer life for use.
• 【Product Basic Parameters】Overall Size:30 x 25 x 38mm (L*W*H) Mounting Size:28 x 22mm (L*W)
• 【Attention】Switch Marked on the rocker: I/O (on/off) for precise indications.Please pay attention to the voltage before ordering to make sure the rocker switch can work successfully in your area.
• 【Parcel contains】2 x Rocker Switch . Easy to install and durable.With our strict quality control system, we test each item and ensure in good condition before we ship.

Specification: Product Name:Rocker Switch Pole and Throw:DPST Terminal Quantity:4 Position:On-Off Lamp Color:Red Rated Voltage:AC 20A/125V 22A/250V(for resistive load only) Overall Size:30 x 25 x 38mm (L*W*H) Mounting Size:28 x 22mm (L*W) Color:Black,Red Material:Plastic, Metal Package Content:2Pcs x Rocker Switch AC 250V Current rerating for different loads Inductive Load: 7.7A Lamp Load: 3.96A Motor Load: 4.4A Capactive Load: 3.96A AC125V Current rerating for different loads Inductive Load: 7A Lamp Load: 3.6A Motor Load: 4A Capactive Load: 3.6A Very Important Notice:Ratings on the switch label are only for Purely Resistive AC load, for other types of loads please refer to the ratings above.DC load Current ratings are much lower than AC load,if you need to use this switch with more than 0.5A DC load,contact us for compatibility at first.
