sourcingmap 25 Watt 10 Ohm 5% Aluminum Housing Resistor Screw Tap Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors 18mm Mounting Hole 2 Pcs

• 25 Watt and 10 Ohm, 5% tolerance. Size: 28mm x 27mm x 14mm, total lenght with connector: 50mm.
• Aluminum Housed. An insulated cover on the wounded wires would suppress the heat, which promises the high performance of a resistor. Hence, the cooling job was achieved by aluminum case.
• This 25W resistor formed with qualified copper, nickel, and aluminum. With the compact structure and heat dissipation design, a capability of overload has been built. Wire Wound Resistor owns high reliability and accuracy. Moreover, it was used for various application because of the wide resistance range.

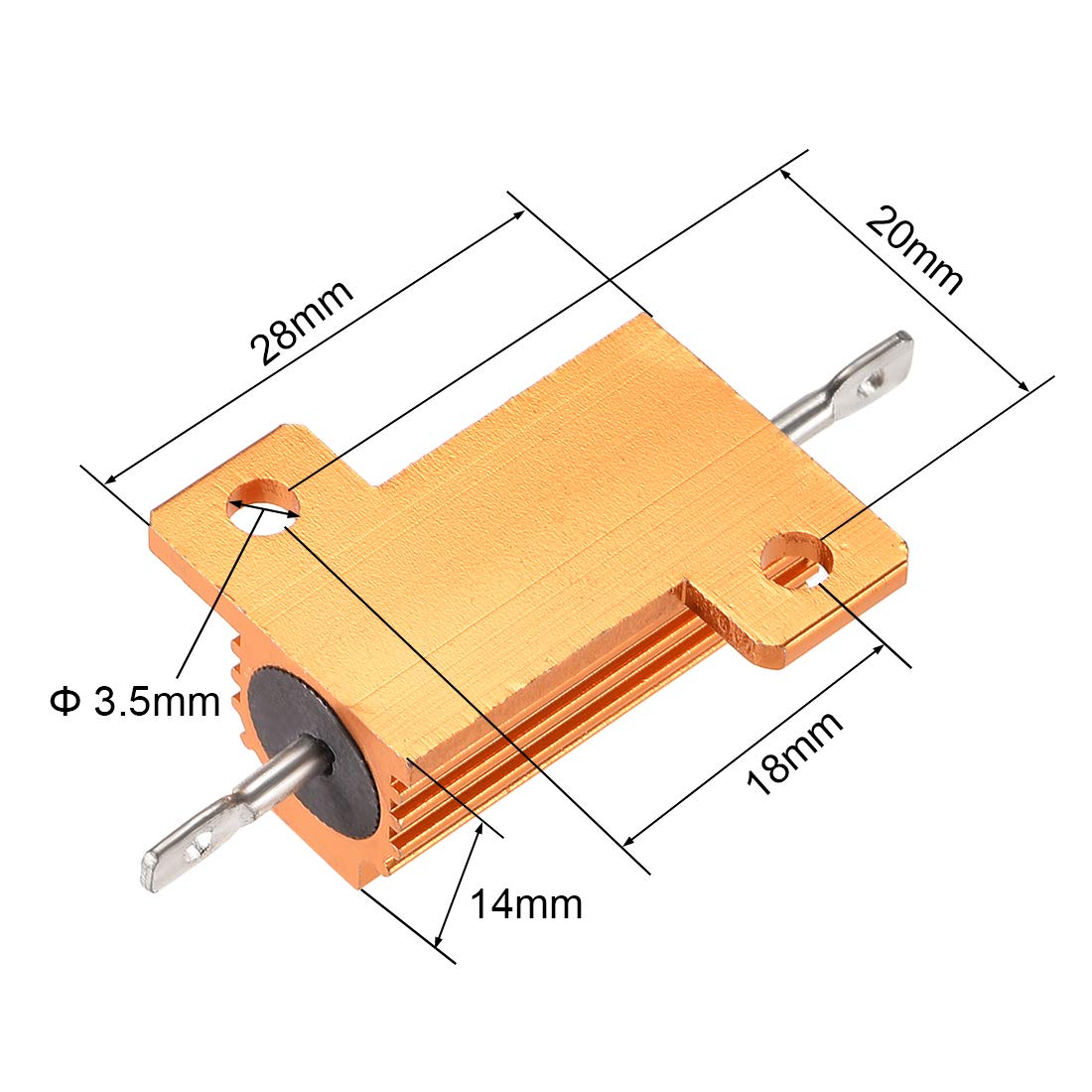

• Chassis mounted with Screws, Board length 1.1 inches(28mm) with two 3.5mm mounting hole, and 2 terminals for a connection.
• Reliable. Problems like the flush LED and ring doorbell would have a perfect solution, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc.

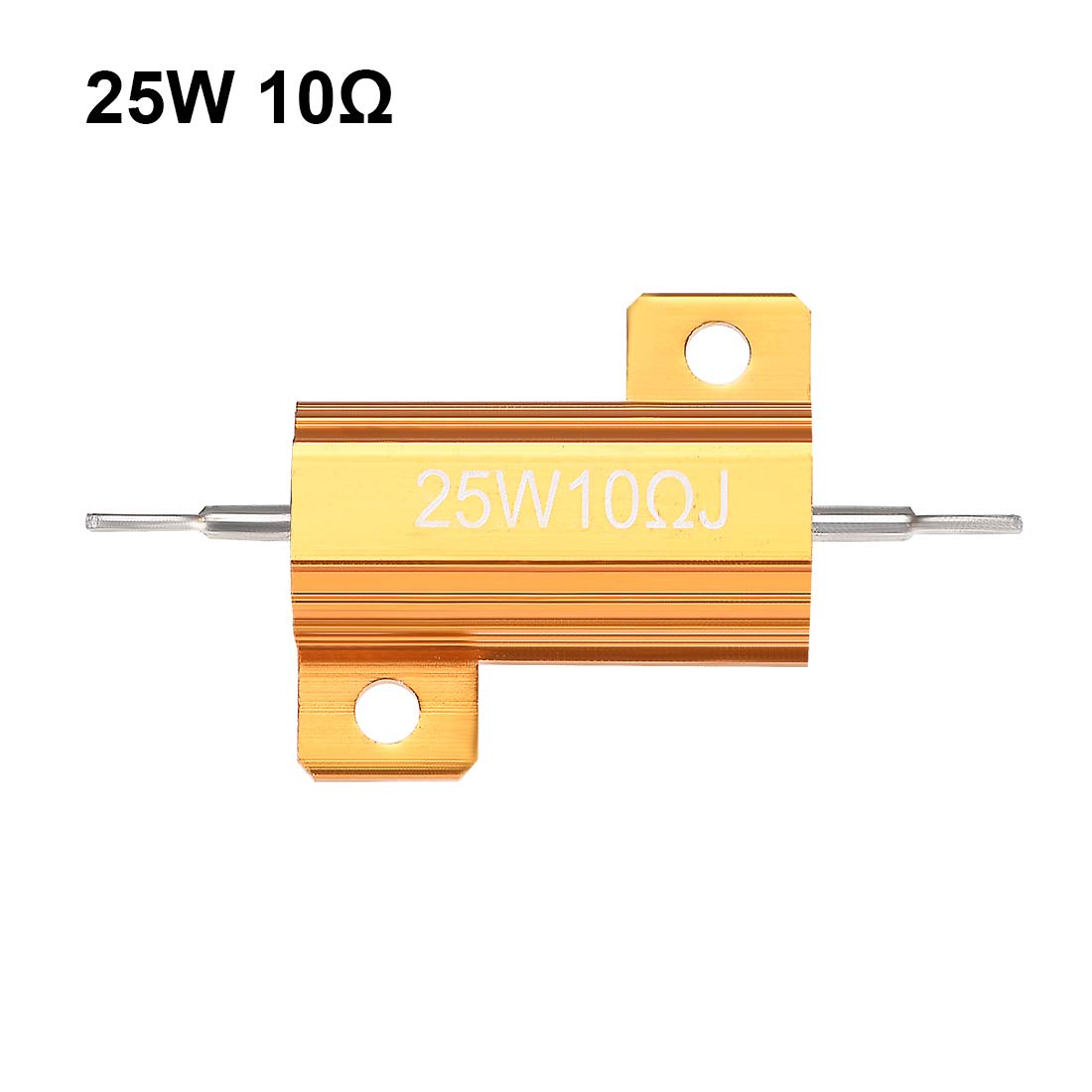

25 Watt 10 Ohm Aluminum Case Wirewound Resistor with 5% Tolerance Power: 25W Resistance: 10 ohm Tolerance: 5% Connection Type: Rods Board Length: 28mm Mounting Hole Diameter: 3.5mm Distance Between Mounting Hole: 18mm Materials: Nickel alloys Wire Wound Resistor with Aluminum Case Color: Gold Package Content: 2 pcs 25W 10ohm Aluminum Resistor Suggestion: a. The load resistor will get huge hot, please don't touch it when the resistor is working.Because alumnium resistor is a braking device which transfers Electric energy to Thermal energy.This is a normal physical phenomenon. b. The load resistor should be mounted on metal board, not on flammable board such as plastic board,rubber,paper,wood and etc. c. We recommend a 30%-50% increase in rated power based on your actual load power and add a heat sink device when it is necessary. If you choose a 30% increase in rated power, you must add a heat sink device. If you choose a 50% increase in rated power, you can add a heat sink device for the best use of its performance. d. Not recommend to use it for Automotive repair or refit unless you have professional knowledge.
