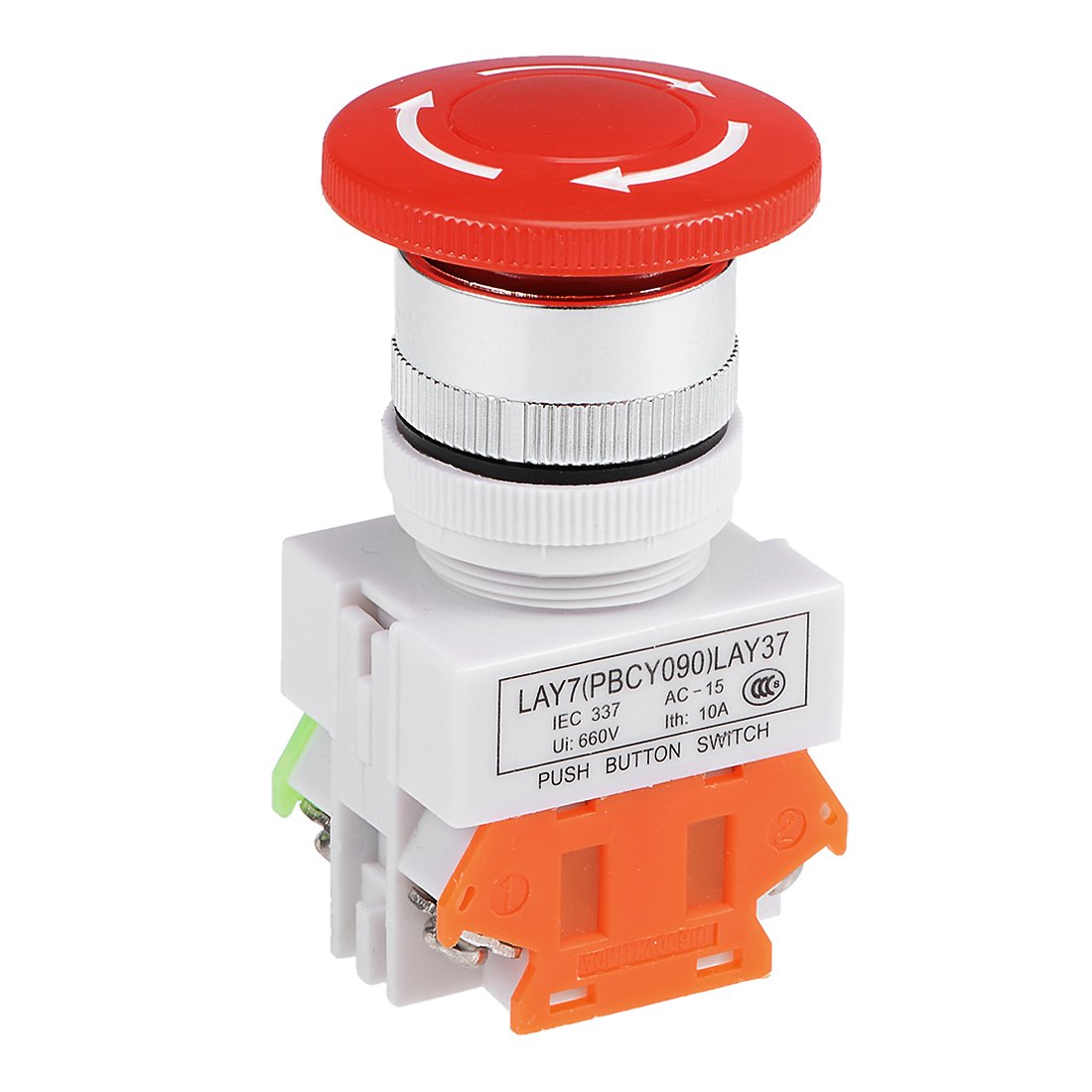

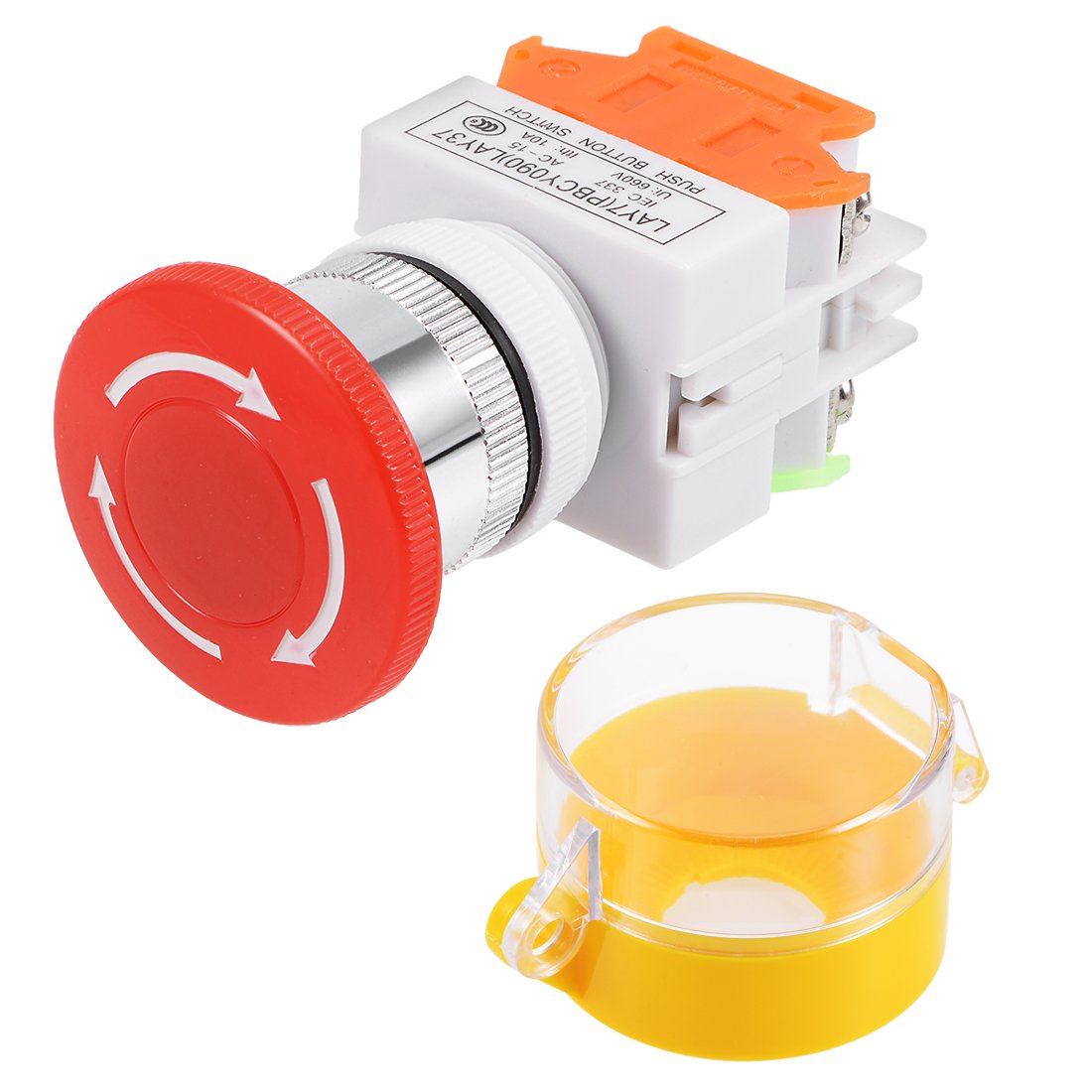

Sourcingmap 22mm Mounting Hole Latching Emergency Stop Push Button Switch Red with Waterproof Cover 1NO 1NC

• Item Name: Emergency stop Push Button; Operation Type: Latching; Contact Type: DPST 1 NO 1 NC;2.(Rated) Voltage & Current: 250V/3A;Ui: 660V Ith: 10A

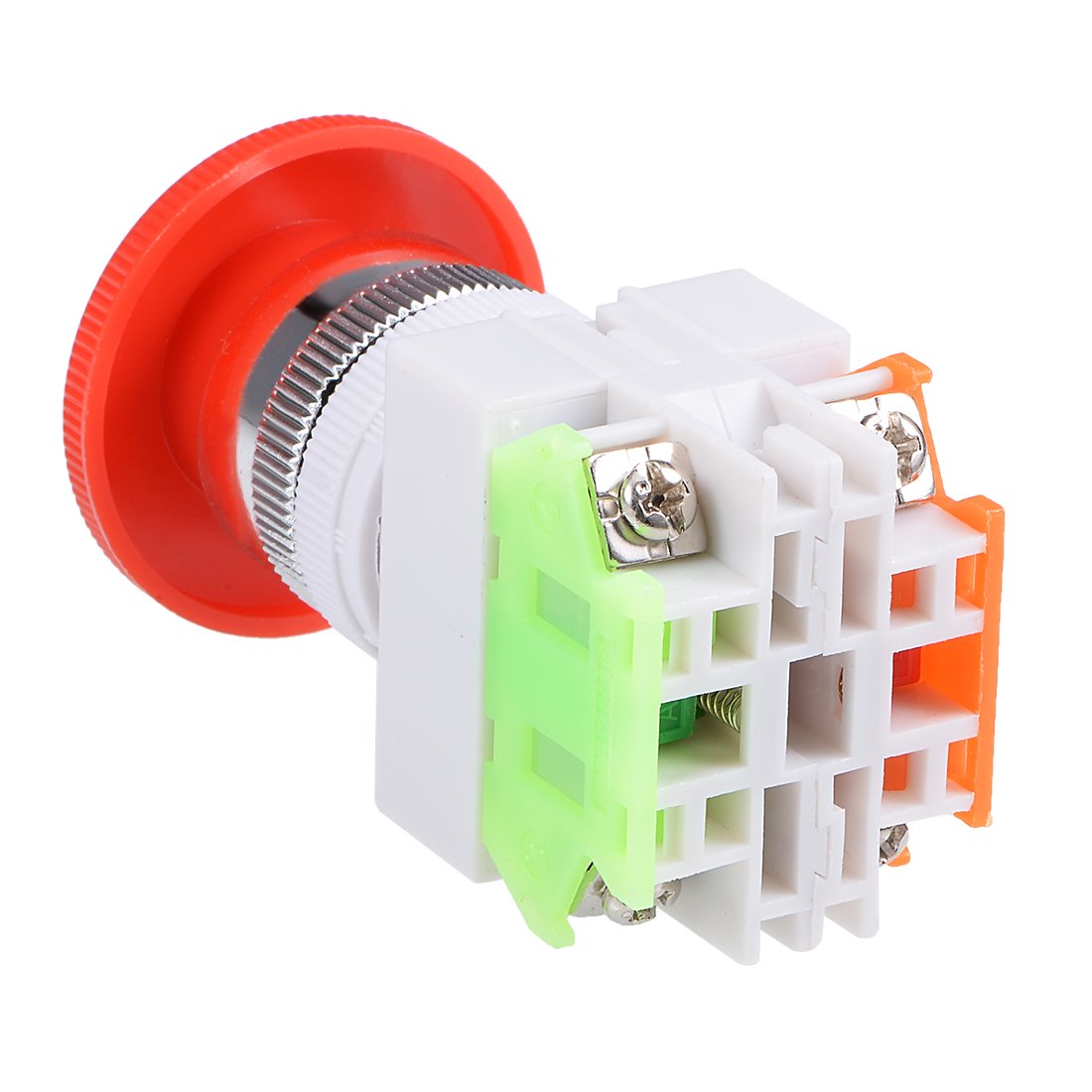

• Mounting Hole Dia: 22mm / 0.87"; Terminals Quantity: 4

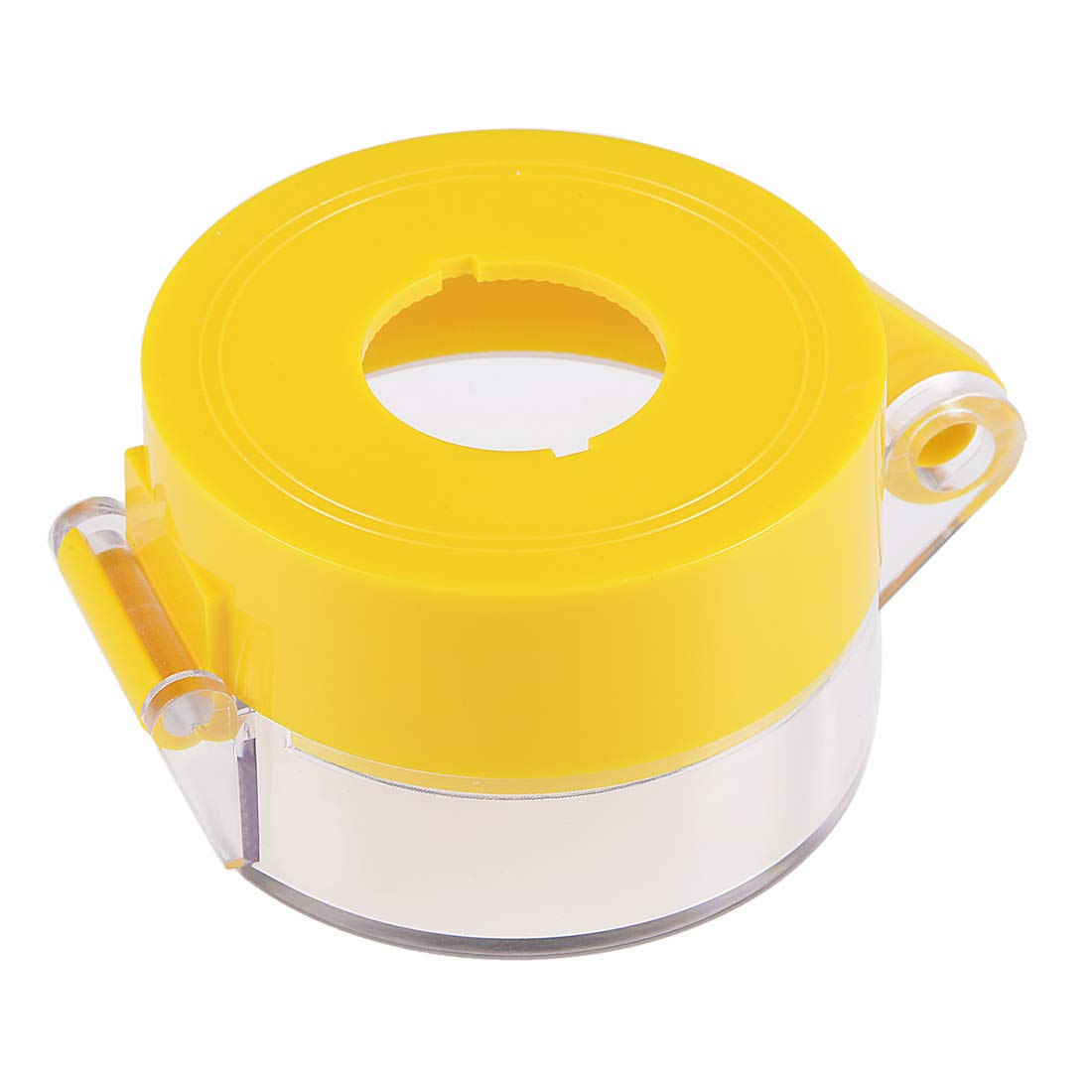

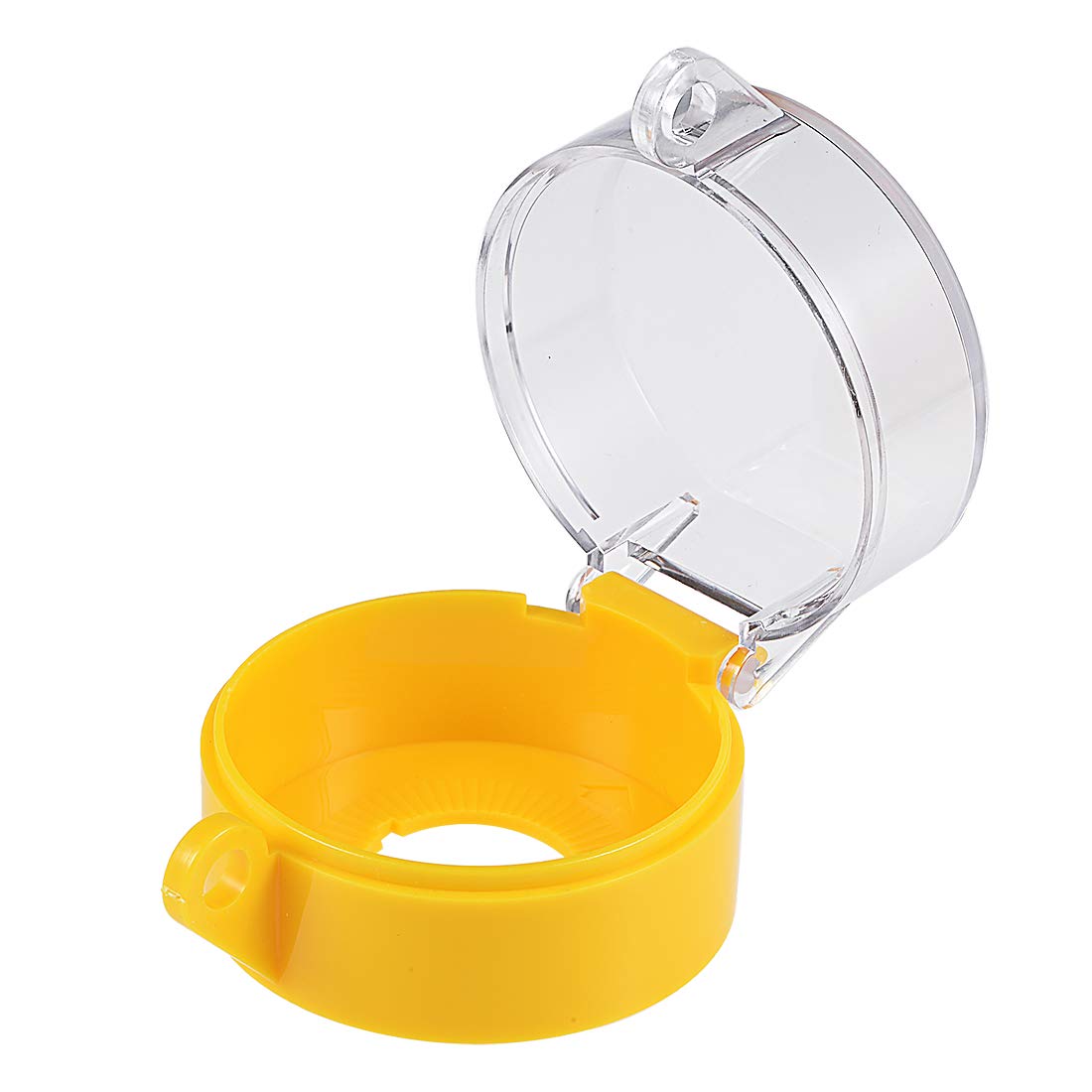

• Fit Panel Thickness(Adjustable) : Max 0.6cm;Light Voltage: no light include;Package Content: 1 x Push button Switch / 1 x Waterproof cover
• The shell is made of flame-retardant PC material, anti-corrosion and waterproof; The contact is made of silver tin oxide with strong conductivity. The bottom is made of flame-retardant substrate with high temperature resistance
• Used widely to control the equipment, contactor, relay and other automatic control electric circuits.

1NO 1NC (DPST) contact type, red round head, Latching action, 22mm panel cutout diameter. Push to stop and lock, twist to reset. For emergency stop in industry with the conspicuous red mushroom cap. Used widely to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.
