Sourcingmap 19mm 2 Positions 2NO 2NC Electric Key Lock Push Button Switch

• 1.Country of Manufacture: CHINA; Material: Plastic,Metal; Net Weight: 49g

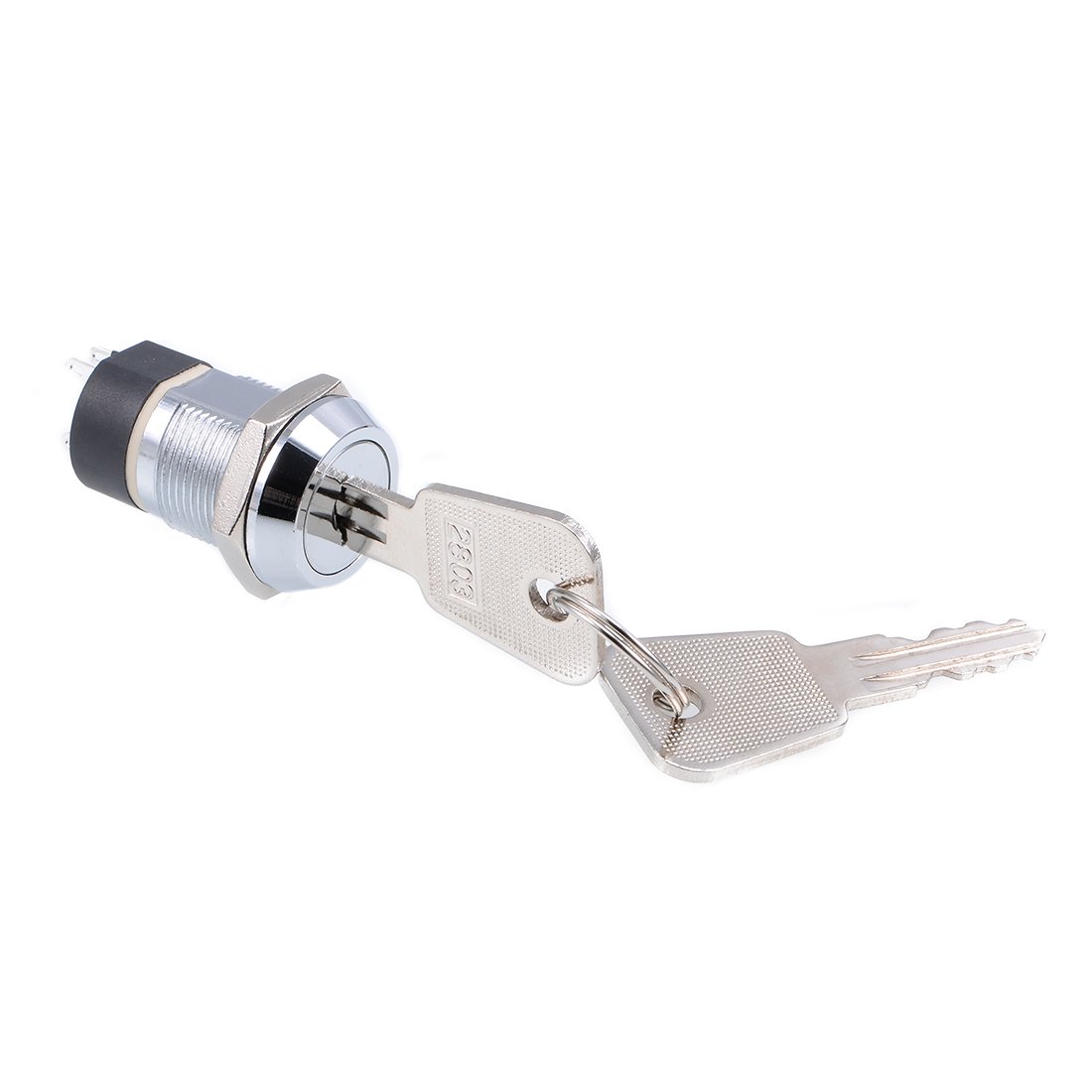

• 2.Package Content: 1 x Key Push Button Switch / 2 x Keys / 1 x Screw Nut; Main Color: Silver; (Rated) Voltage & Current: AC 250V/2A AC125V/4A

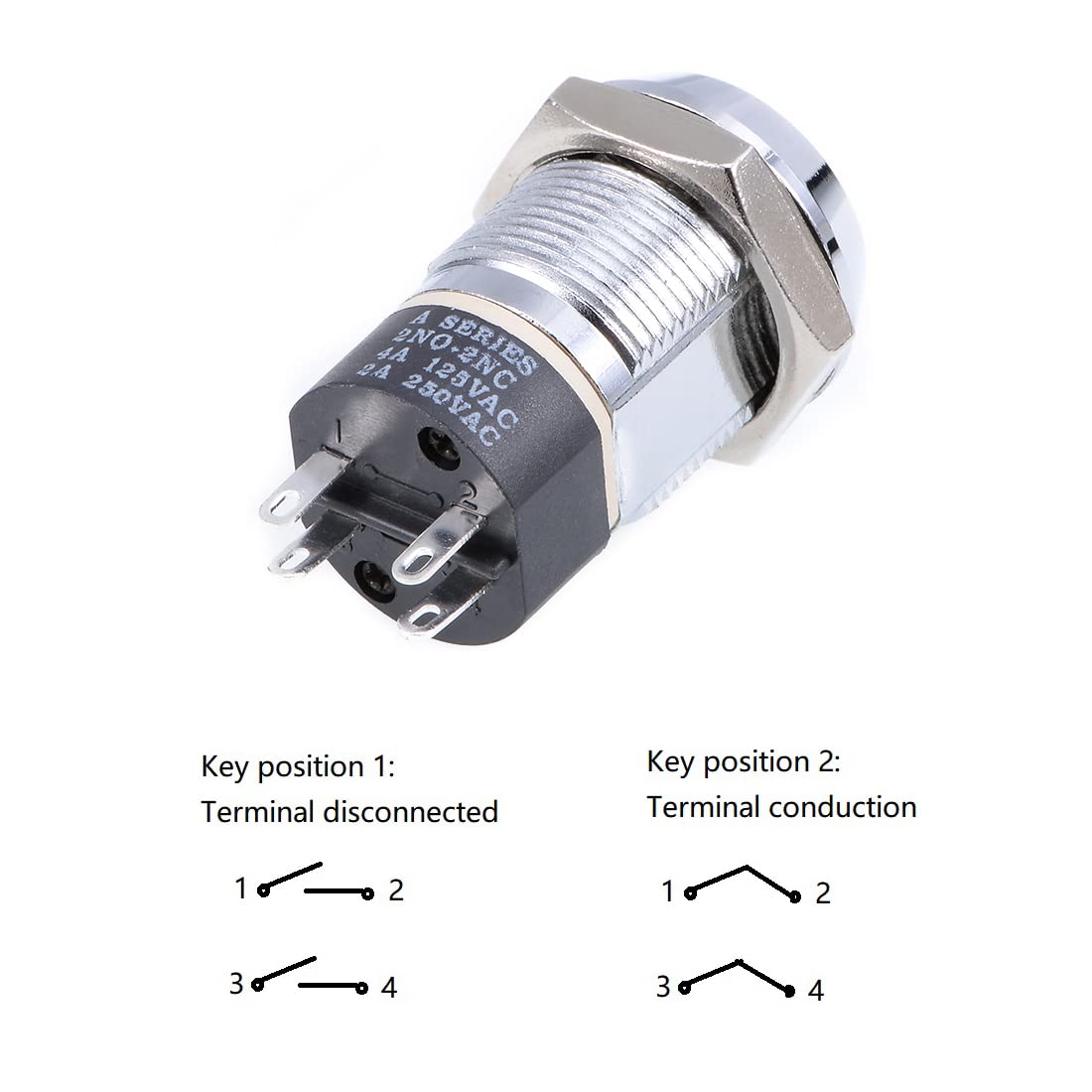

• 3.Operation Type: Locking; Contact Type: 2NO 2NC; Light Voltage: no light include
• 4.Mounting Hole Dia: 19mm / 0.75"; Position: 2

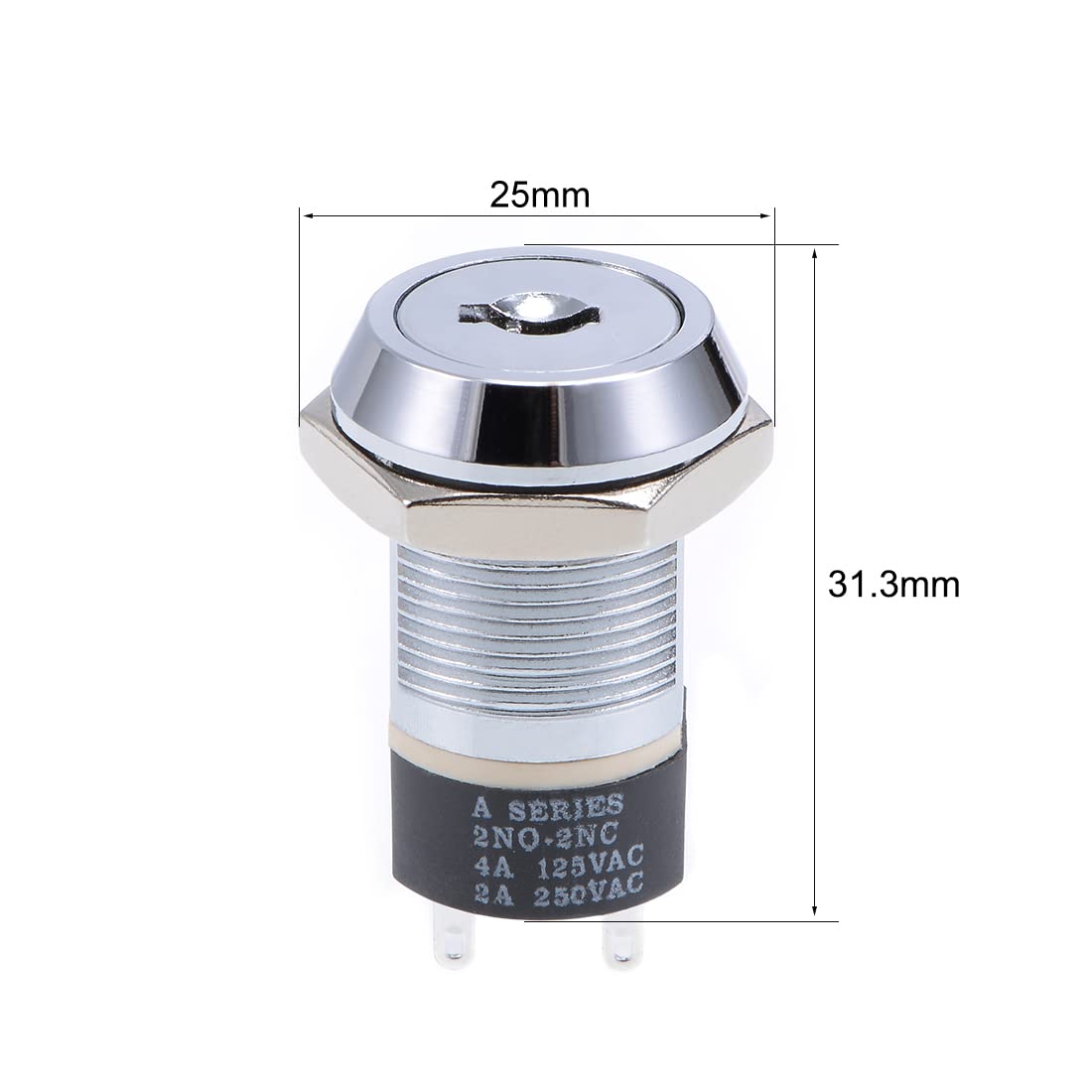

• 5.Terminals Quantity: 4; Overall Size(Approx): 31.3 x 21.7mm / 1.23" x 0.85" (L*W)

Description 1.Zinc alloy die cast housing, four terminals, in both positions, (Off-On). 2. Keyed can be taken off when the switch stays on or off position. 3. Miniature key lock switch for simple locking and switching tasks. Specifications: Main Color: Silver; (Rated) Voltage & Current: AC 250V/2A AC125V/4A Operation Type: Locking; Contact Type: 2NO 2NC; Light Voltage: no light include Mounting Hole Dia: 19mm / 0.75"; Position: 2 Terminals Quantity: 4; Overall Size(Approx): 31.3 x 21.7mm / 1.23" x 0.85" (L*W) Package Content : 1 x Key Push Button Switch / 2 x Keys / 1 x Screw Nut;
