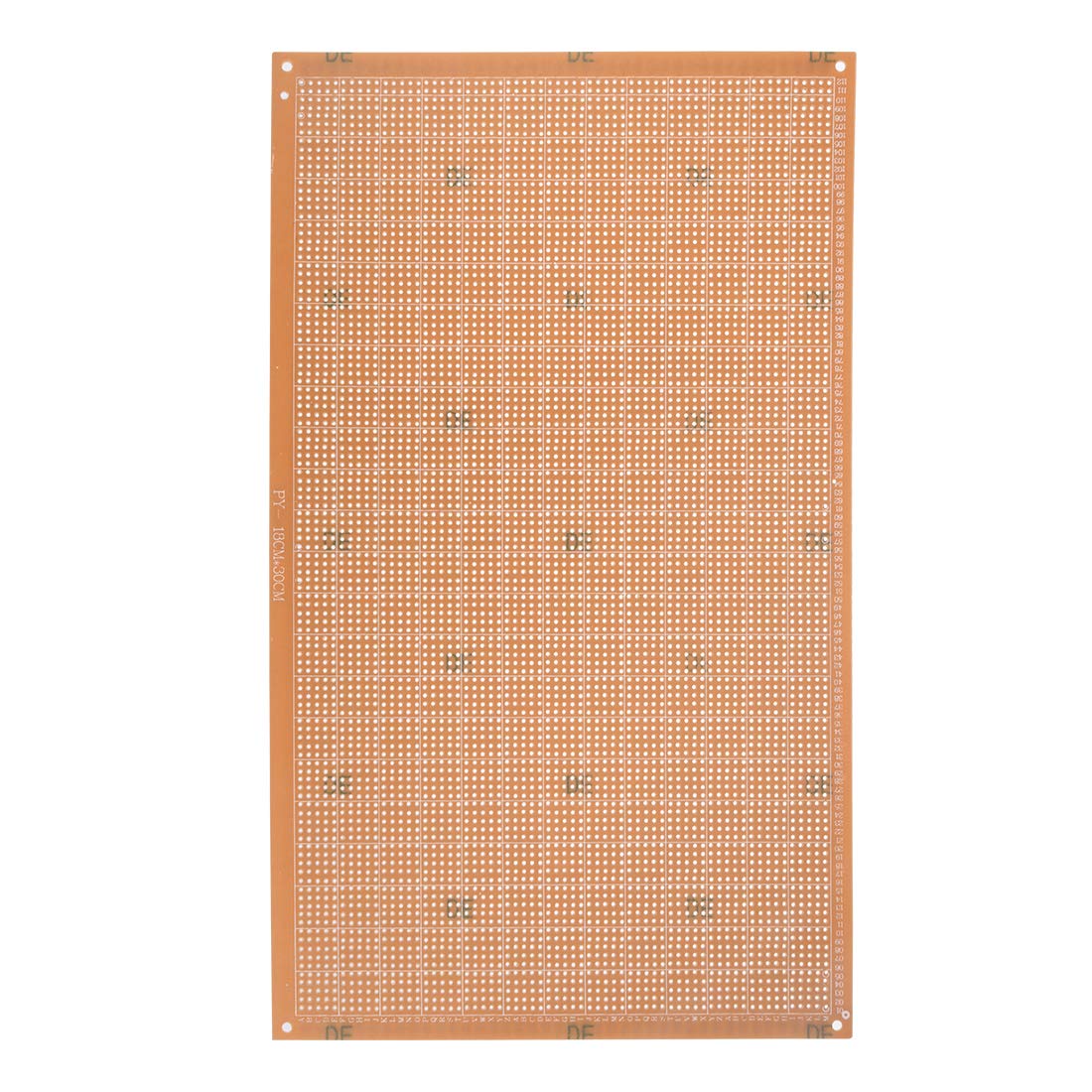

Sourcingmap 18x30cm Single Side Universal Paper Printed Circuit Board for DIY Soldering 10pcs

• PRODUCT - FR1 94HB Bakelite DIY Prototype Circuit Board Breadboard.

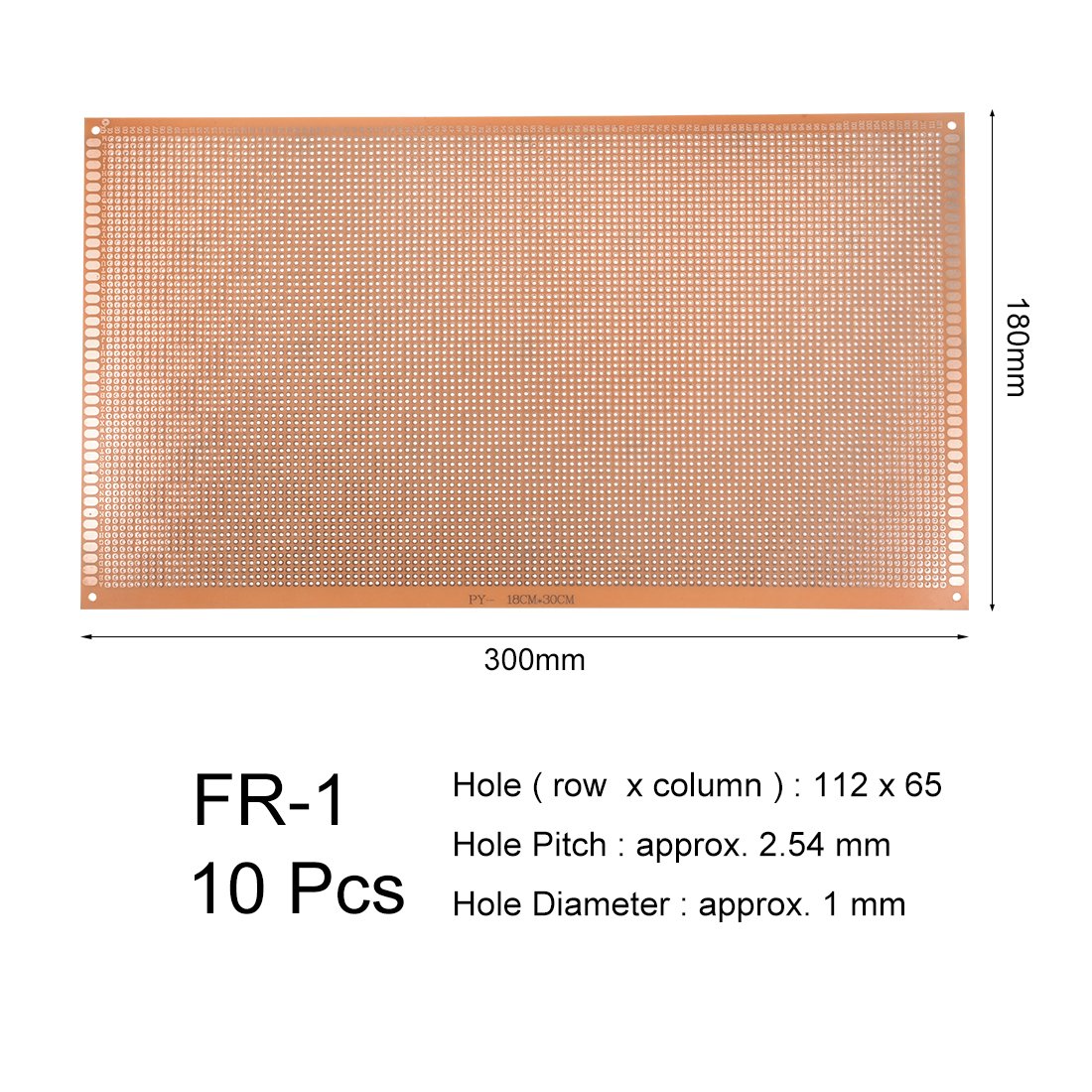

• PARAMETERS - Thickness:Approx.1.2mm ; Hole Pitch:Approx.2.54mm ; Hole Diameter:Approx.1.0mm ; Dimension:Approx.18x30 cm / 7.1x11.8 inch (W x L); Hole (row x column) : 112 x 65.
• FEATURES - The proto boards are thick and single sided. The plated holes are pre-coppered and very solid which make them very easy to solder components on.
• APPLICATION - Solderable PCB enables you to transfer your circuit and wires from a plug-in breadboard without recutting wires or changing your layout.Suitable for point to point DIY soldering.
• PACKAGE CONTENT - 10pcs x Universal PCB Board

Specifications<br />Dimension : 18x30 cm / 7.1x11.8 inch (W x L)<br />Hole ( row x column ) : 112 x 65<br />Material : glass fiber FR1<br />Thickness : approx. 1.2mm<br />Hole Pitch : approx. 2.54 mm<br />Hole Diameter : approx. 1 mm<br />Mounting Hole Diameter : approx. 3 mm<br />Net Weight : 944g<br />Color : Brown basic,Brown tone<br /> <br />Package content:<br />10 pcs x Universal PCB Board<br />
