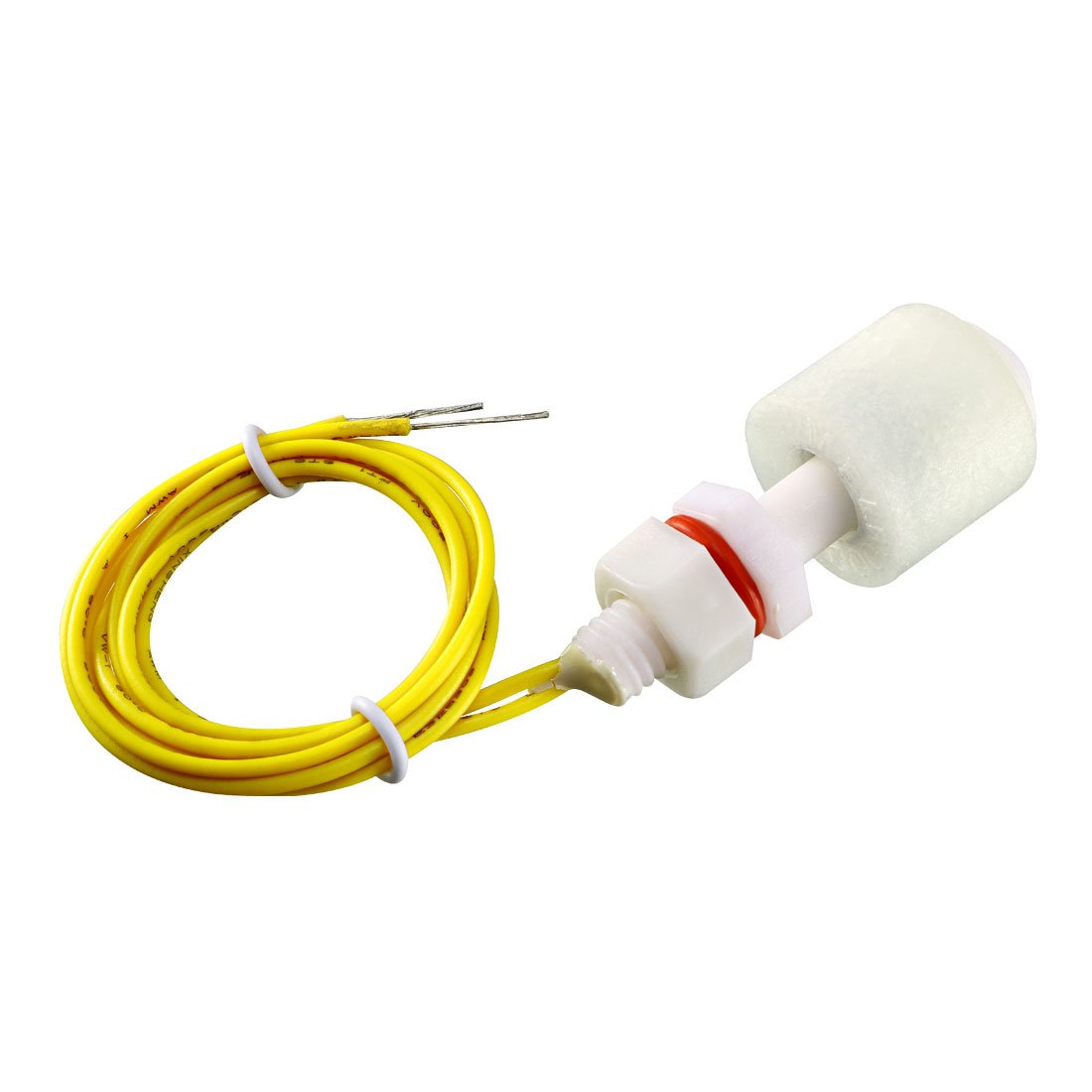

Sourcingmap 16.5" Tank Pool Water Level Control Vertical Plastic Float Ball Switch

• Product Name : Float Switch;Max Contact Rating : Max Contact Rating;10W : 10W;Max Switching Voltage : DC 100V
• Max Switching Current : 0.5A;Max Breakdown Voltage : DC 220V;Max Carry Current : 1.0A;Max Contact Resistance : 100 Ohm

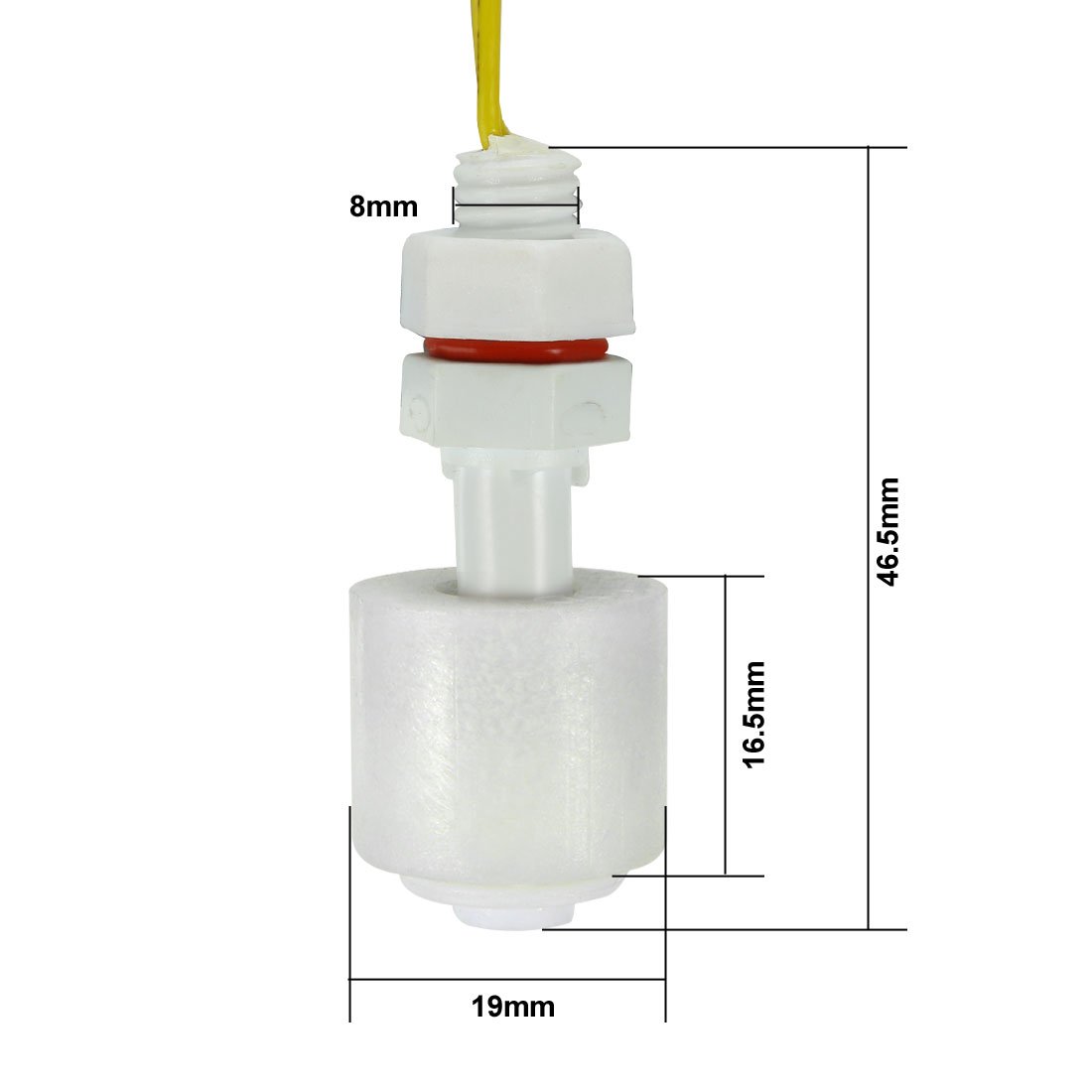

• Temperature Rating : -10 ~ +60 C / 85 C;Float Ball Size(Approx) : 19 x 16.5mm /0.75" x 0.65"(D*T);Thread Dia(Approx) : 8mm / 0.31";Nut Dia(Approx) : 14mm / 0.55"
• Bottom Clip Dia(Approx) : 13.5mm / 0.53";Straight Bar Dia : 6.5mm/0.25";Body Total Length : 46.5mm /1.8";Total Length : 42cm /16.5"
• Material : Plastic;Color : White, Yellow;Net Weight : 11g;Package Content : 1 x Float Switch

Description:<br />1.A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.<br />2.It can be easily converted from normally open to normally close by inverting the float.<br />
