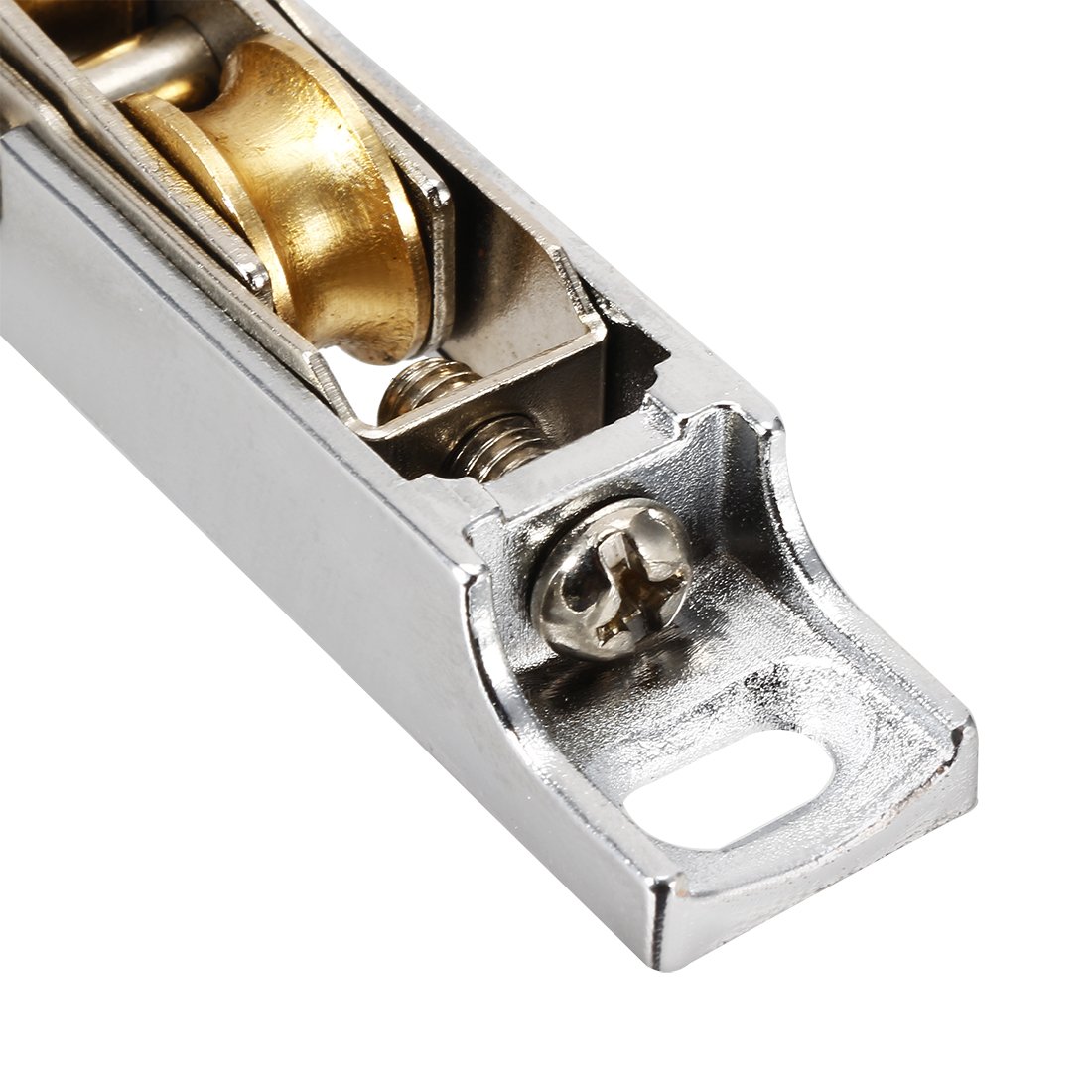

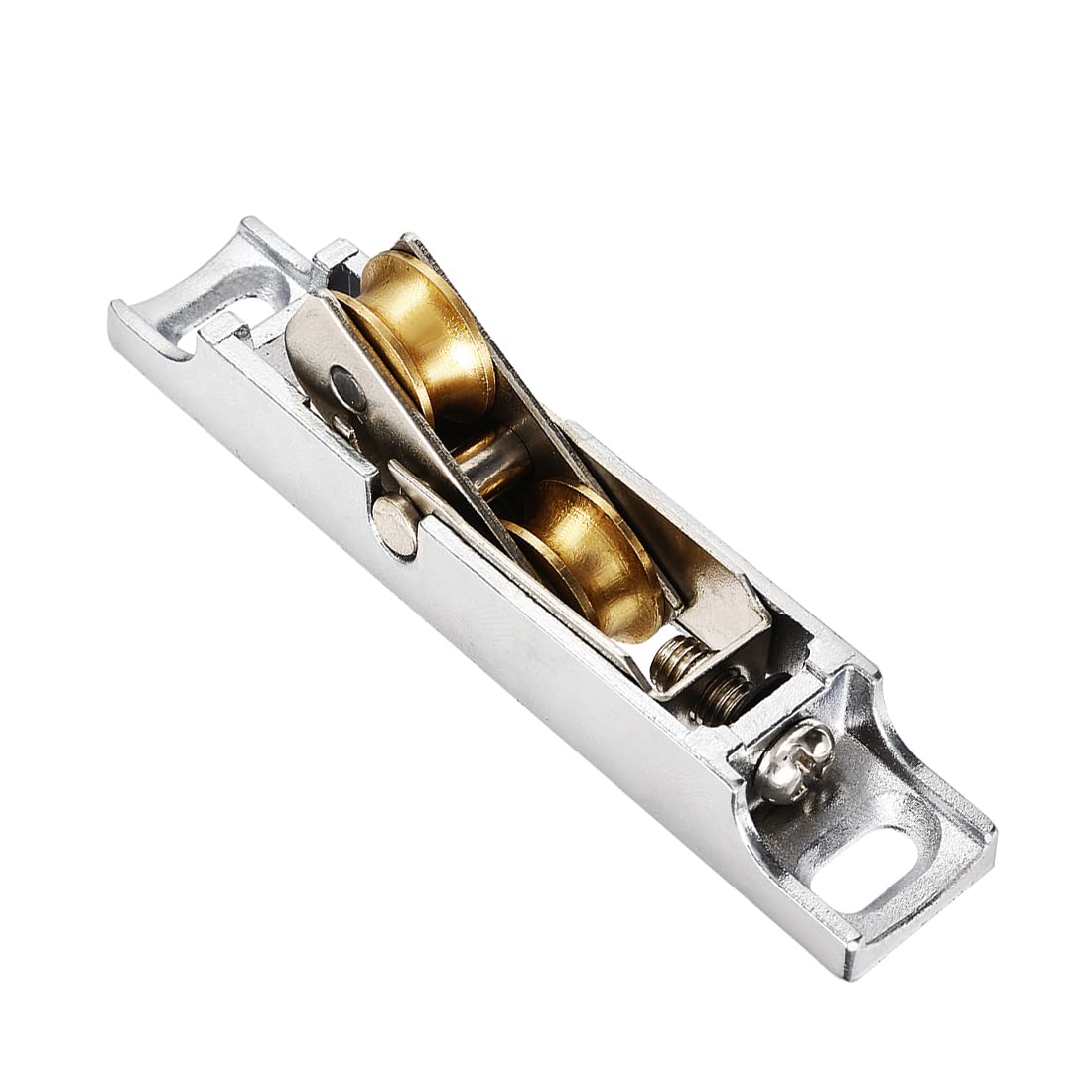

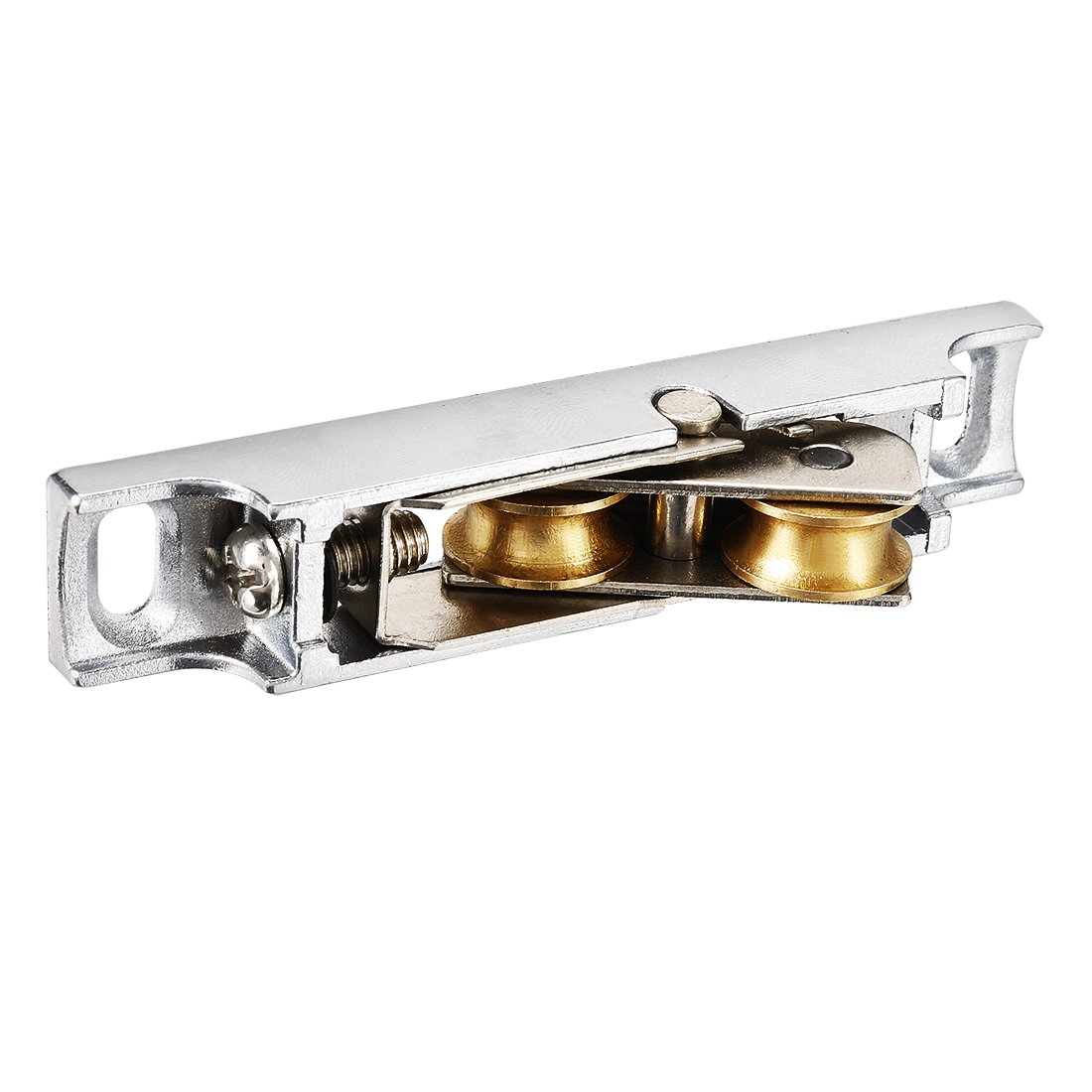

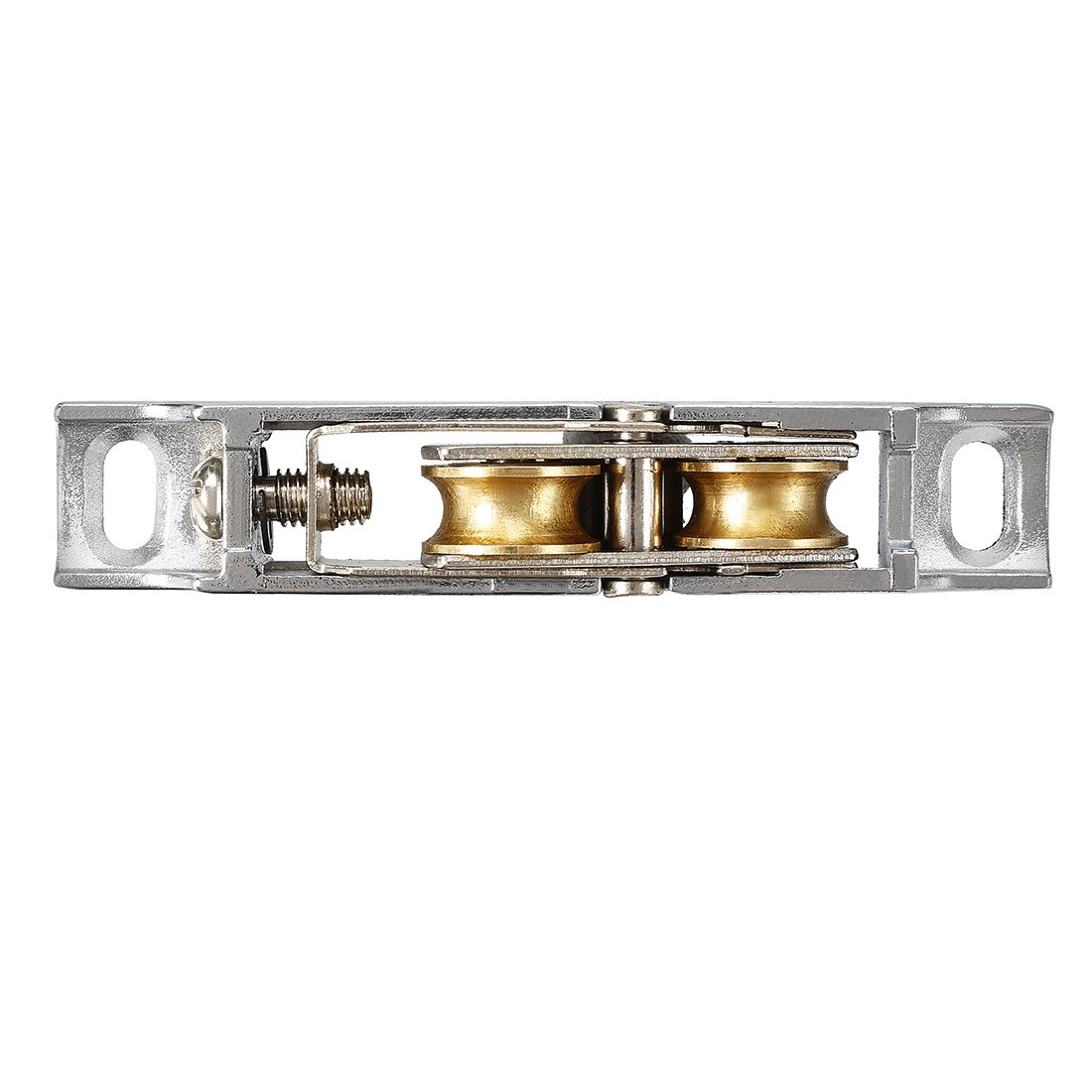

Sourcingmap 14.5mm Dia Brass Electroplating Double Wheel Sliding Door Window Pulley 2pcs

• WHEEL SIZE: Diameter:14.5mm; Thickness: 7mm
• MATERIAL: Brass Wheel, Zinc Alloy Shell, Electroplating Finish
• APPLICATION: Widely used for Sliding door, Window, Cabinet etc.
• FEATURES: U Groove Double Wheel Pulley

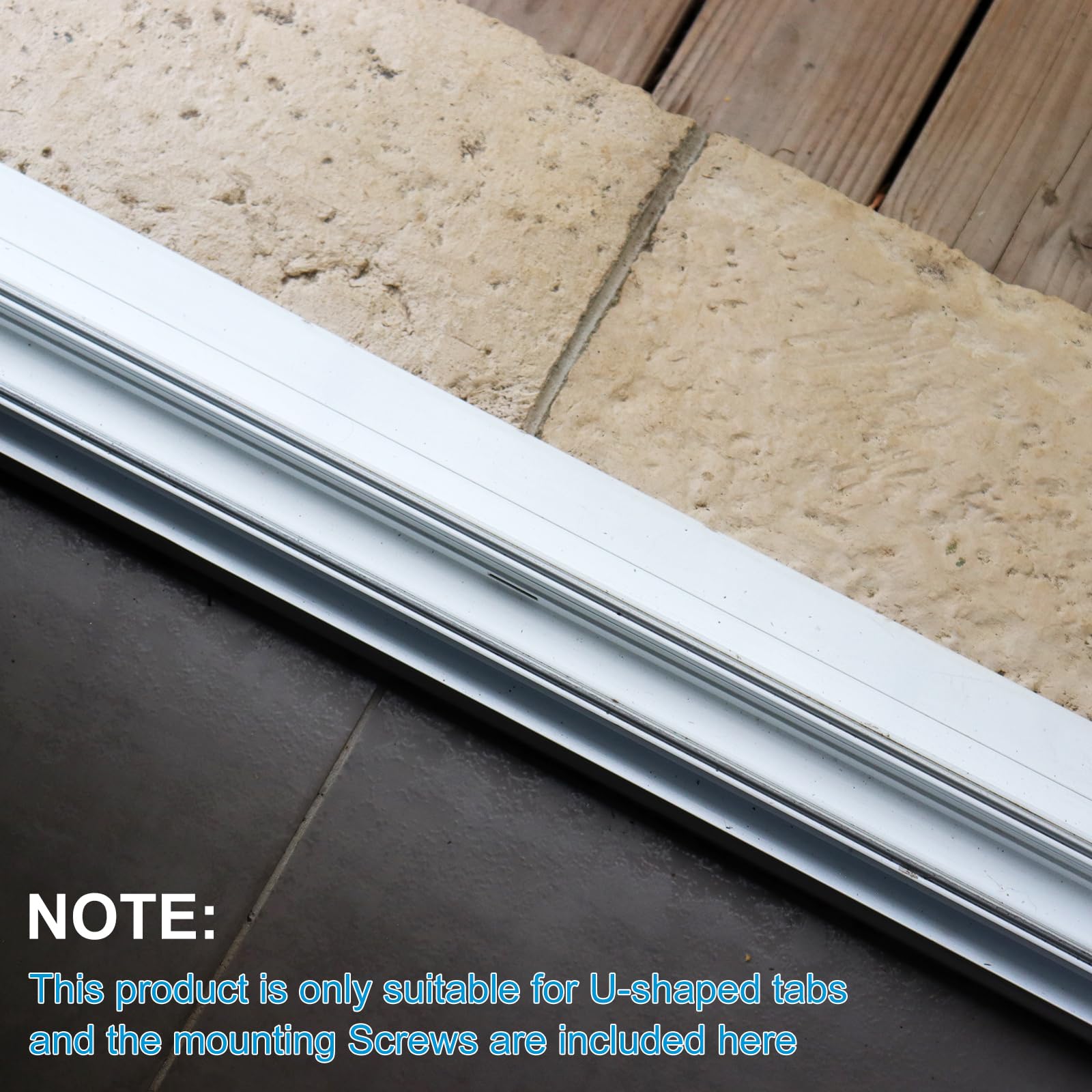

• NOTE: This product is only suitable for U-shaped tabs and the mounting Screws are included here

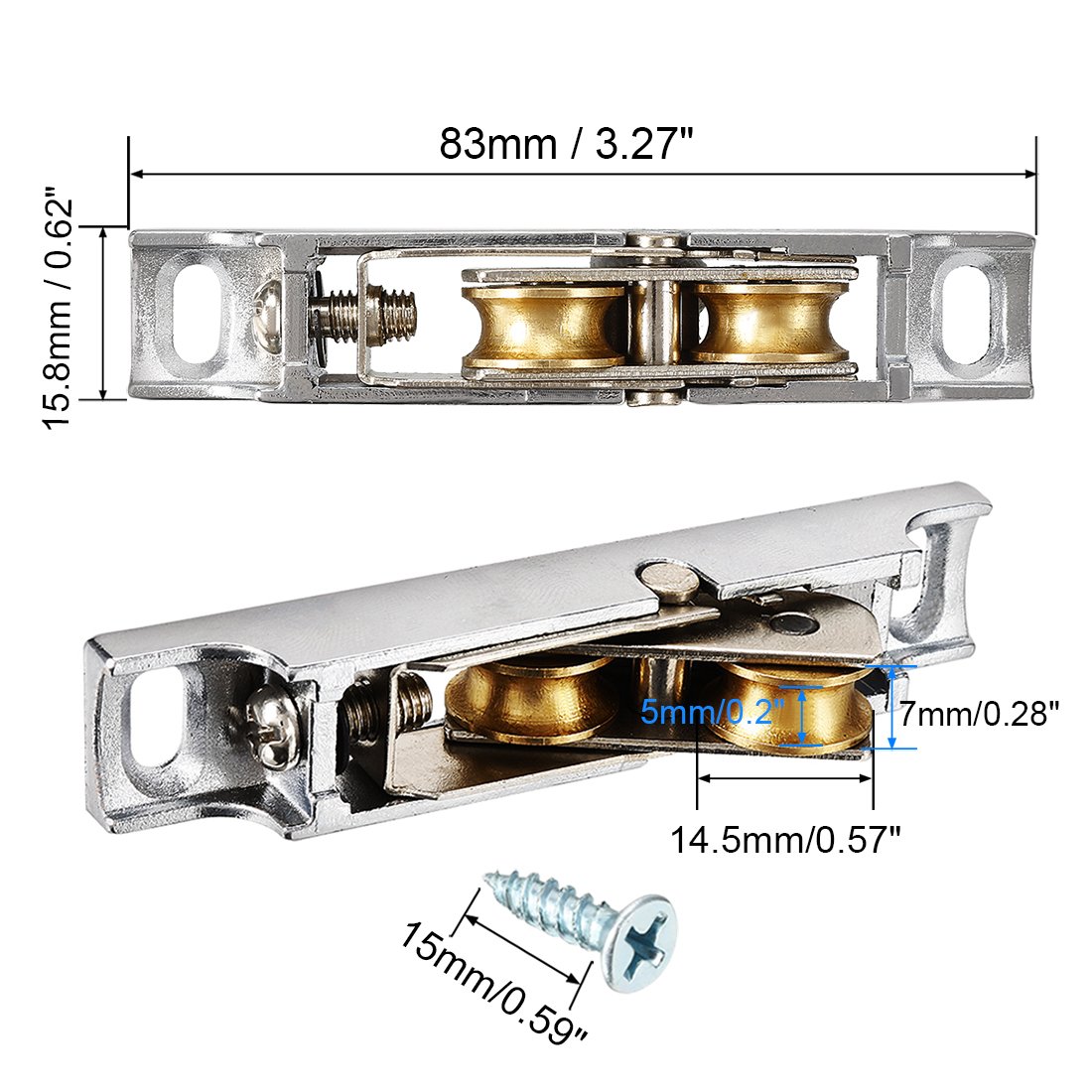

1. WHEEL SIZE: Diameter:14.5mm; Thickness: 7mm 2. MATERIAL: Brass Wheel, Zinc Alloy Shell, Electroplating Finish 3. APPLICATION: Widely used for Sliding door, Window, Cabinet etc. 4. FEATURES: U Groove Double Wheel Pulley 5. NOTE: This product is only suitable for U-shaped tabs and the mounting Screws are included here Specification: Product Name: Pulley Wheel Package Content: 2pcs x Pulley Wheel, 4pcs x Screw Main Color: Silver Tone, Brass Tone Material: Zinc Alloy, Brass Finish: Electroplating Weight: 110g Total Size: 83 x 15.8 x 14.5mm / 3.27-inch x 0.62-inch x 0.57-inch (L*W*H) Wheel Size: 7 x 14.5mm / 0.28-inch x 0.57-inch (T*D) U Groove Size: 5 x 1.8mm / 0.2-inch x 0.07-inch (W*H) Wheel Bulging Height: 1.5mm / 0.06-inch Mounting Hole Dia.: 4.5mm / 0.18-inch Mounting Hole Center Distance: 71mm / 2.79-inch Screw Size: 15 x 4mm / 0.59-inch x 0.16-inch (L*Thread.D)
