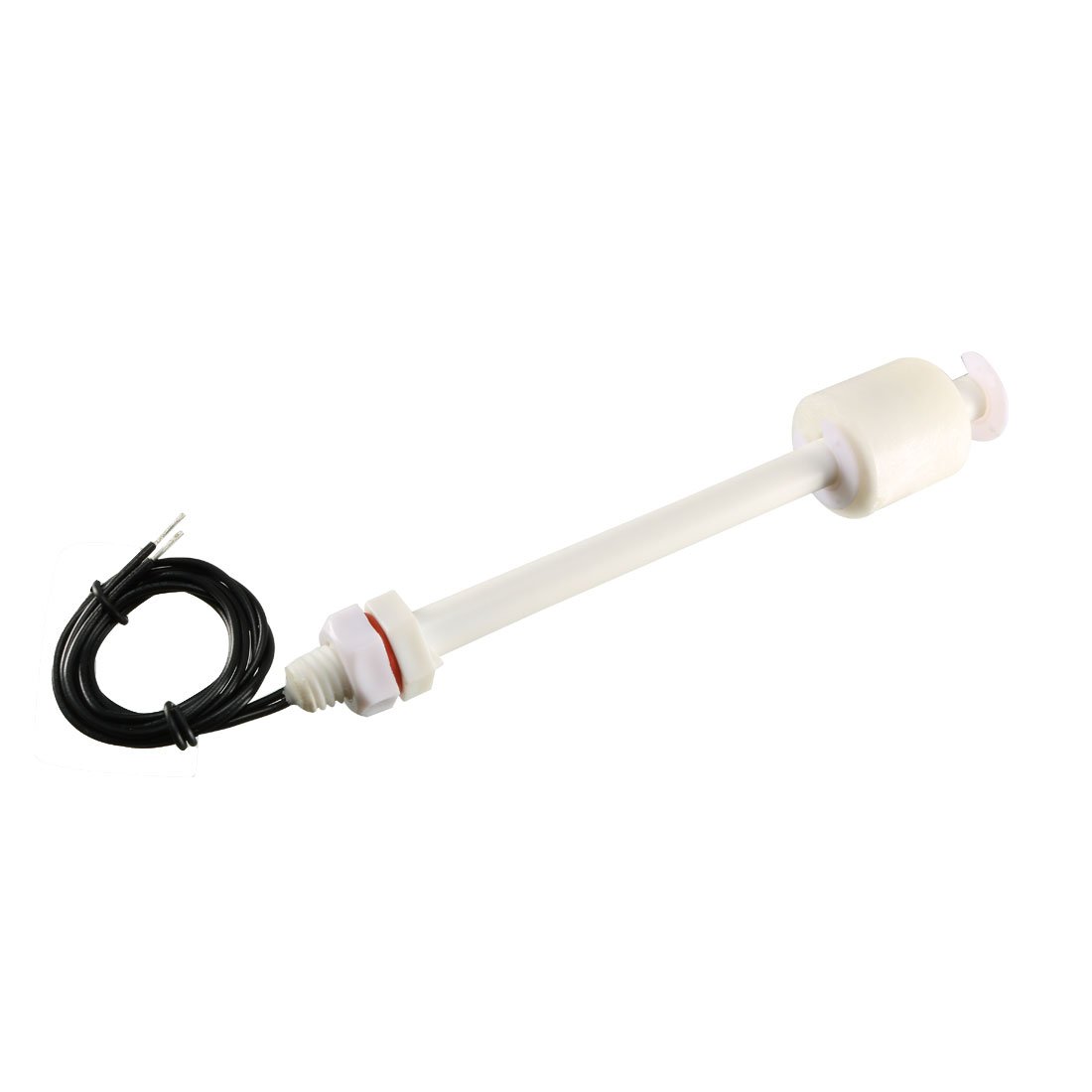

Sourcingmap 13.8" Vertical Mount Liquid Level Sensor White Plastic Floating Switch

• Product Name : Float Switch;Contacts : NO+NC;Max Contact Rating : Max Contact Rating;10W : 10W;Max Switching Voltage : DC 100V
• Max Switching Current : 0.5A;Max Breakdown Voltage : DC 220V;Max Carry Current : 1.0A;Max Contact Resistance : 100mohm

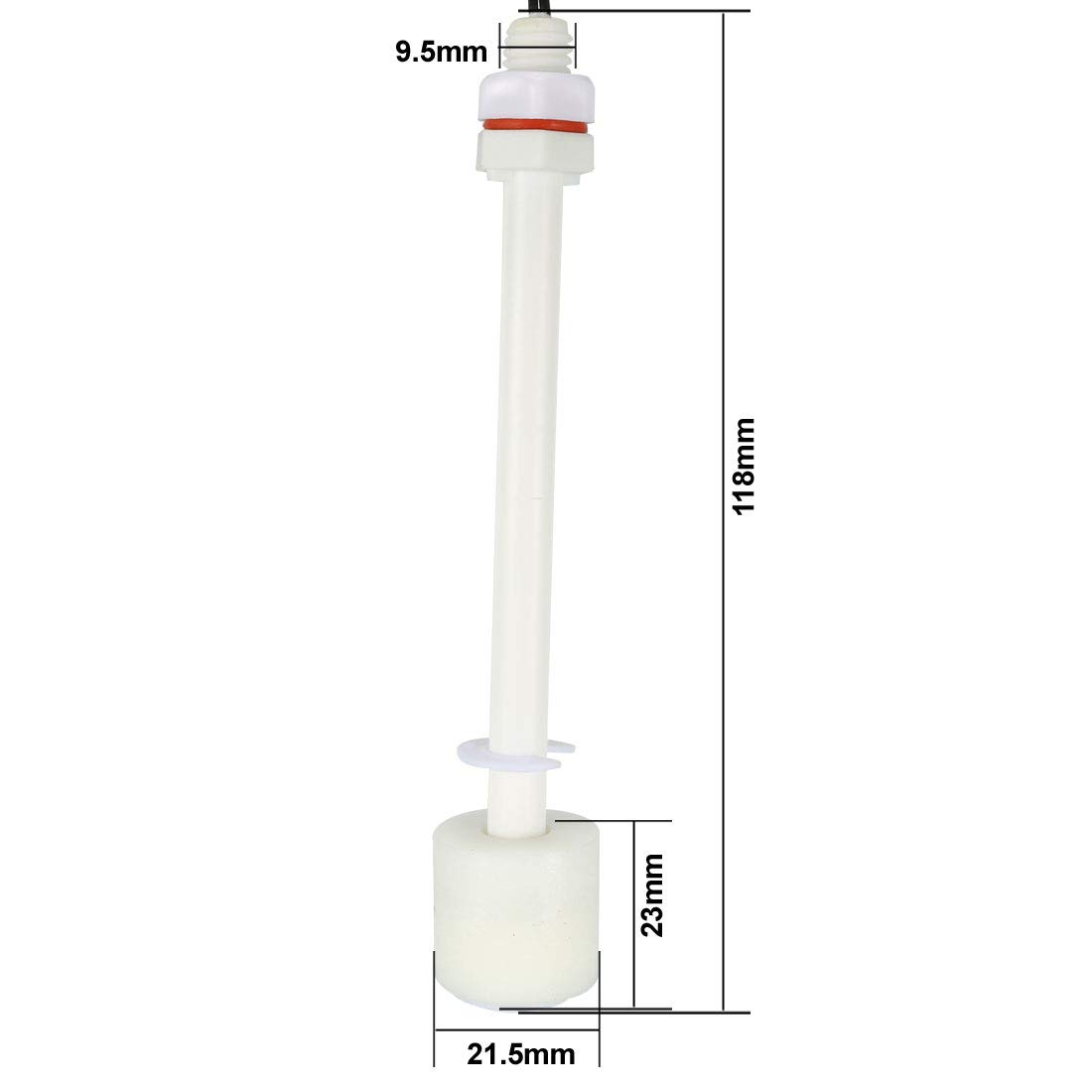

• Temperature Rating : -10 ~ +60 C / 85 C;Float Ball Size(Approx) : 23 x 21.5mm /0.91" x 0.85"(L*D);Thread Dia(Approx) : 9.5mm / 0.37";Nut Dia(Approx) : 16mm / 0.63"
• Bottom Clip Dia(Approx) : 17mm / 0.67";Straight Bar Dia : 8mm/0.31";Body Total Length : 118mm /4.6";Cable Length : 35cm /13.8"
• Material : Plastic;Color : White, Black;Net Weight : 17g;Package Content : 1 x Float Switch

Description:1.A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.2.It can be easily converted from normally open to normally close by inverting the float.3.Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
