Sourcingmap 11.5mm Dia Bearing Steel Electroplating Double Wheel Sliding Door Window Pulley 2pcs

• WHEEL SIZE: Diameter:11.5mm; Thickness: 7.2mm
• MATERIAL: Bearing Steel Wheel, Zinc Alloy Shell, Electroplating Finish
• APPLICATION: Widely used for Sliding door, Window, Cabinet etc.
• FEATURES: U Groove Double Wheel Pulley

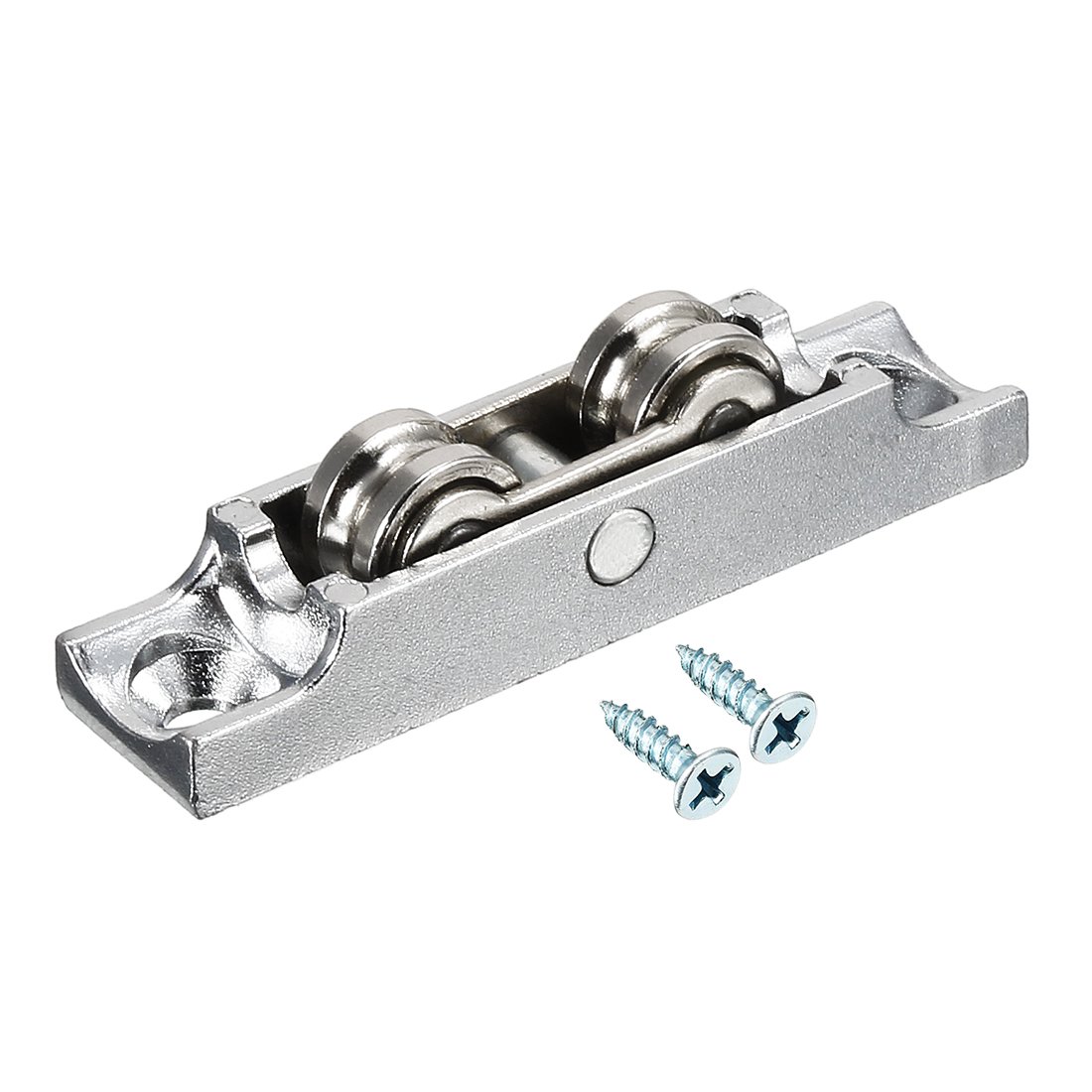

• NOTE: Mounting Screws are included here.

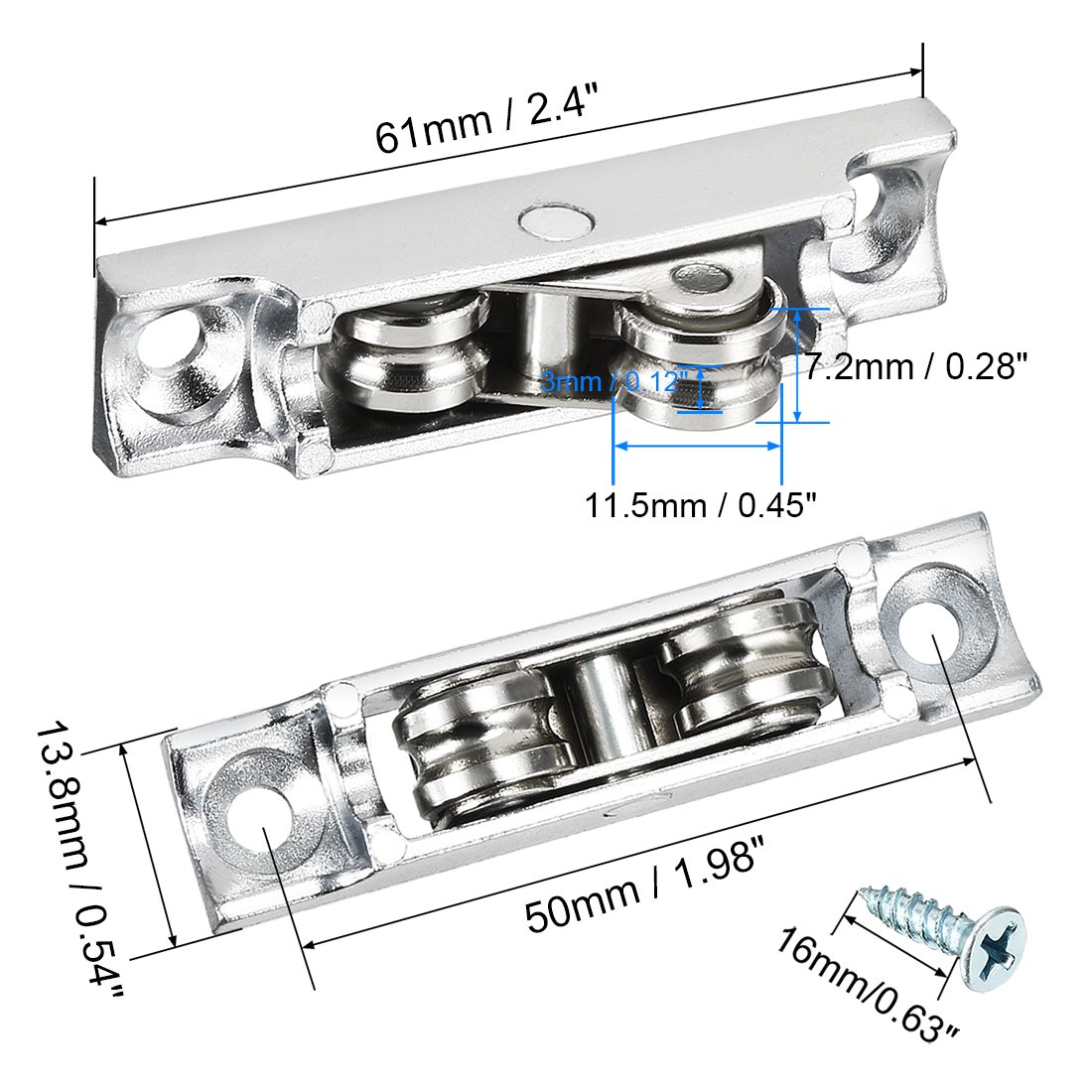

1. WHEEL SIZE: Diameter:11.5mm; Thickness: 7.2mm 2. MATERIAL: Bearing Steel Wheel, Zinc Alloy Shell, Electroplating Finish 3. APPLICATION: Widely used for Sliding door, Window, Cabinet etc. 4. FEATURES: U Groove Double Wheel Pulley 5. NOTE: Mounting Screws are included here. Specification: Product Name: Pulley Wheel Package Content: 2pcs x Pulley Wheel, 4pcs x Screw Main Color: Silver Tone Material: Zinc Alloy, Bearing Steel Finish: Electroplating Weight: 71g Total Size: 61 x 13.8 x 14mm / 2.4-inch x 0.54-inch x 0.55-inch (L*W*H) Wheel Size: 7.2 x 11.5mm / 0.28-inch x 0.45-inch (T*D) U Groove Size: 3 x 0.8mm / 0.12-inch x 0.03-inch (W*H) Wheel Bulging Height: 1.5mm / 0.06-inch Mounting Hole Dia.: 4.5mm / 0.18-inch Mounting Hole Center Distance: 50mm / 1.98-inch Screw Size: 16 x 4mm / 0.63-inch x 0.16-inch (L*Thread.D)
