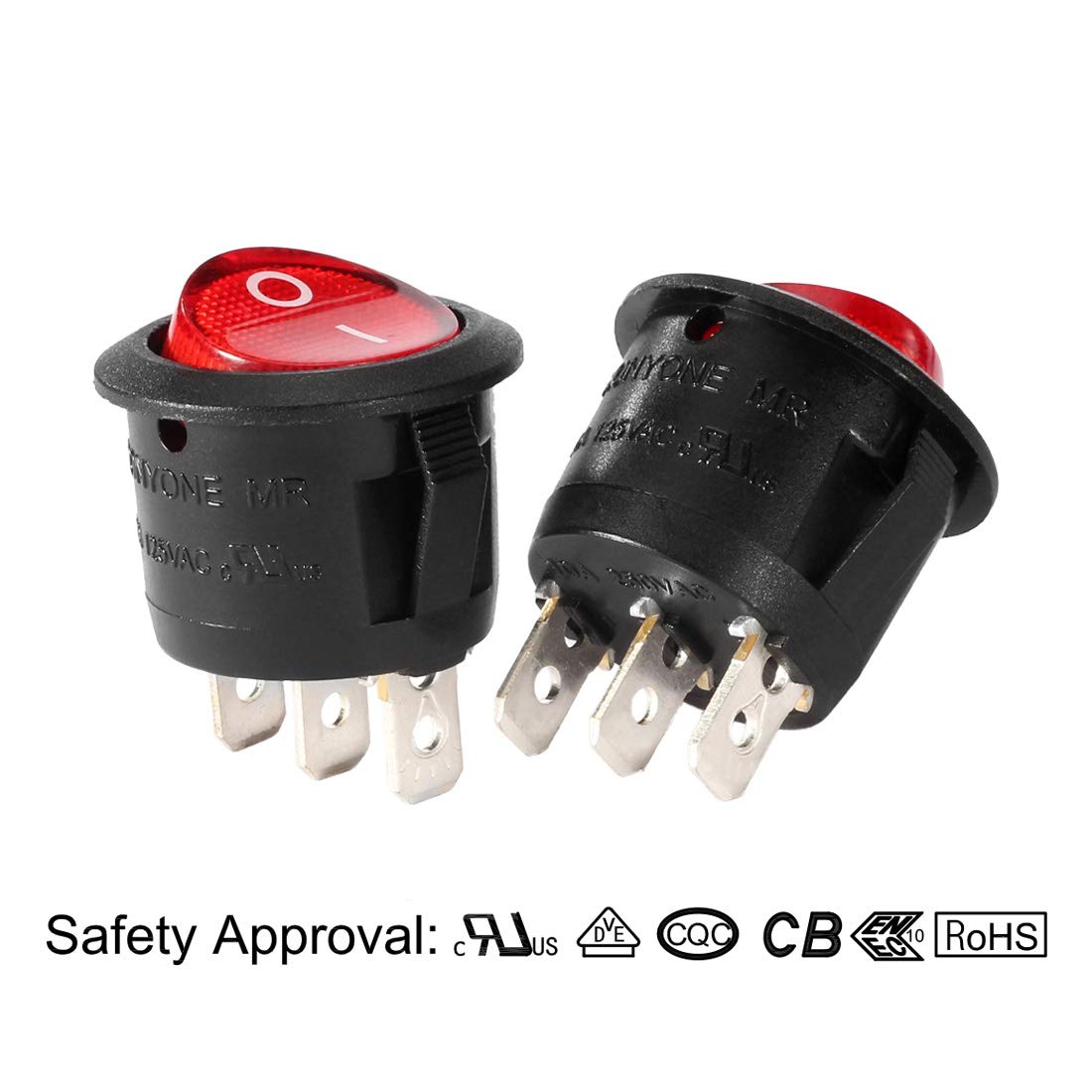

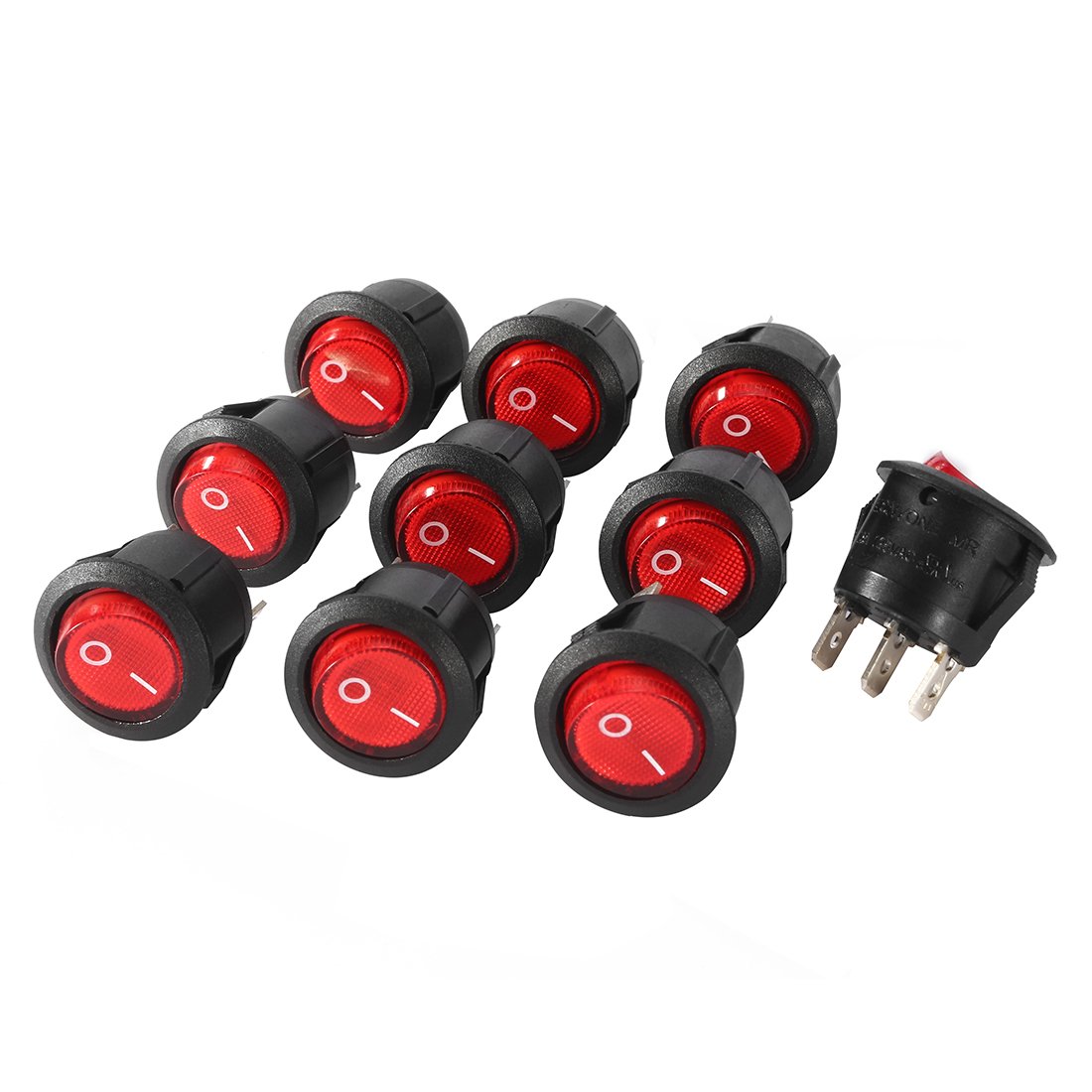

Sourcingmap 10Pcs Red Lamp 3 Terminal SPST 2 Position Marine Round Button Rocker Wiring Toggle Switch On/Off AC 250V/10A 125V/12A

• .Dimension:23 x 28mm/0.9" x 1.1"(Max.D*H); Mounting Hole Diameter:20mm/0.78" ;
• Backlit Rocker Switch features a red light on the face of the switch.
• Pole and Throw: SPST; Action: Latching(Self-Locking).
• The momentary rocker switch on off rated at AC 250V/10A 125V/12A.
• Uxcell SPST (Single Pole Single Throw) 3 Pin rocker switch works like a seesaw, easily turning on or off lights.

Description: 100% Brand New and . Easy setup, All you need is a 20mm hole and the switch will sit in nicely; no more square cut outs. Our switch comes with a kyhole slot to prevent unwanted rotation. SPST 2 pole design (On/Off) 3rd poles with LED to be connected to earth. Functions:It can be applied as the switches for the additional electronical equipment inside or outside the car. (such as flashing lights, chassis lights, and dome lights). Note: AC 250V Current rerating for different loads Inductive Load: 3.5A Lamp Load: 1.8A Motor Load: 2A Capactive Load: 1.8A AC125V Current rerating for different loads Inductive Load: 4.2A Lamp Load: 2.16A Motor Load: 2.4A Capactive Load: 2.16A Very Important Notice:Ratings on the switch label are only for Purely Resistive AC load, for other types of loads please refer to the ratings above.DC load Current ratings are much lower than AC load,if you need to use this switch with more than 0.5A DC load,contact us for compatibility at first.
