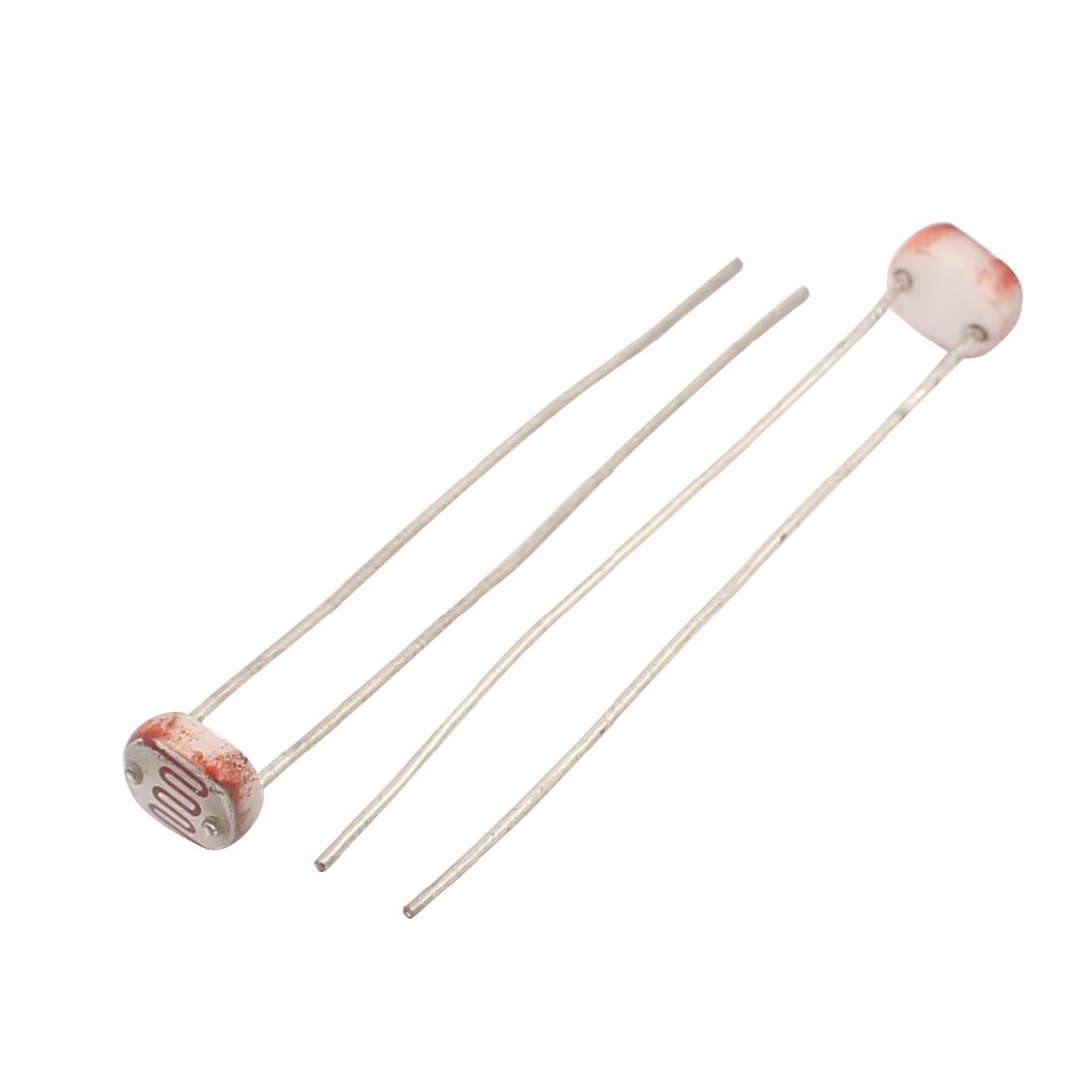

Sourcingmap 10Pcs 5517 Photoresistor LDR CDS 5mm Light-Dependent Resistor Sensor

• Product Name:Photoresistor;Materials:Metal, Electric Parts;
• Operating Temperature: -30 ~ +70 deg C;LDR Head Dia:5mm;
• Maximum Voltage: 150 Volt DC;Maximum Wattage: 100mW;
• Light Resistance (10 Lux): 10-20 Kohm;Dark Resistance: 2 Mohm
• Response time: 20ms (Rise), 30ms (Down);Model:5517;

Specification: Product Name:Photoresistor Materials:Metal, Electric Parts Weight:5g LDR Head Dia:5mm Maximum Voltage: 150 Volt DC Maximum Wattage: 100mW Operating Temperature: -30 ~ +70 deg C Spectral Peak: 540nm Model:5517 Light Resistance (10 Lux): 10-20 Kohm Dark Resistance: 2 Mohm 100?10: 0.6 Response time: 20ms (Rise), 30ms (Down) Package Content: 10Pcs x Photoresistor Descriptions: Light-dependent resistors or photoresistors are a staple of electronics. If you need a way to sense the level of ambient light then there is no easier way to do it. As the light on the sensor increases then the resistance across the two leads decreases. If you have a rear view mirror that darkens when its hit buy headlights you can check in the little hole on face of the mirror and you will see those wavy lines of photoresistor!
