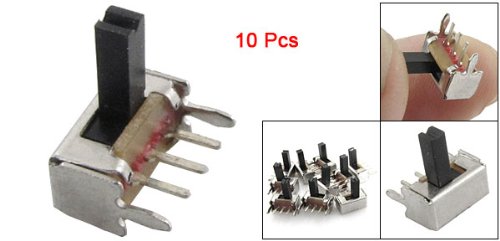

sourcingmap 10 Pcs 3 Terminal 2 Position 1P2T SPDT Panel PCB Horizontal Slide Switch SK12D01-VG6

• Product Name : Horizontal Slide Switch;Model No. : SK12D01-VG6;Position : 2;Terminal Design : Single Row 3 Terminal
• Contact Type : 1P2T;Terminal Width : 0.5mm/ 1/50";Terminal Pitch : 2mm;Rating : DC 50V, 0.5A
• Contacts Resistance : 30M Ohm;Insulation Resistance : 100M Ohm;Minimum Load : DC 500V;Dielectric Strengths : AC 500V / 1 minute
• Life Test : 10000 cycles/ minute;Knob Size : 2 x 2 x 6mm / 0.08" x 0.08" x 0.24"(L*W*H);Main Body Size(not include Terminal & knob) : 8.7 x 4.4 x 4mm/ 0.34" x 0.17" x 0.16" (L*W*H);Overall Size : 8.7 x 10.4 x 7.5mm/ 0.34" x 0.41" x 0.3" (L*W*H)
• Material : Plastic & Metal;Color : As picture shown;Weight : 6g;Package : 10 x Horizontal Slide Switch

Specification: Description: Slide Switch is for changing circuit by sliding the mini handle of the switch to control the circuit to be ON or OFF. The Slide Switch is widely used in the electric toy, sound equipments, fax, test instrument equiopments, or other low voltage circuit electronic equipments. This Slide Switch is with terminals design for easily welding onto the circuit. The slide knob is 6mm in height
