sourcing map Toggle Clamp GH-22185 Horizontal Clamp Quick Release Tool 250Kg 550lbs Capacity

• 250Kg 550lbs holding capacity horizontal toggle clamp, complete with adjustable rubber pressure tips
• Retracted clamp will allow for vertical removal of clamped item
• Mechanism allows maximum clearance; low height design
• Cold-rolled carbon steel with zinc plated coating for corrosion resistance, oil and stain resistant red plastic cover handle for easy, safe and comfortable operation
• Ideal for quickly holding down sheet metal or circuit boards, for machine operation, woodworking, welding, mould, electronic equipment assembly, etc field

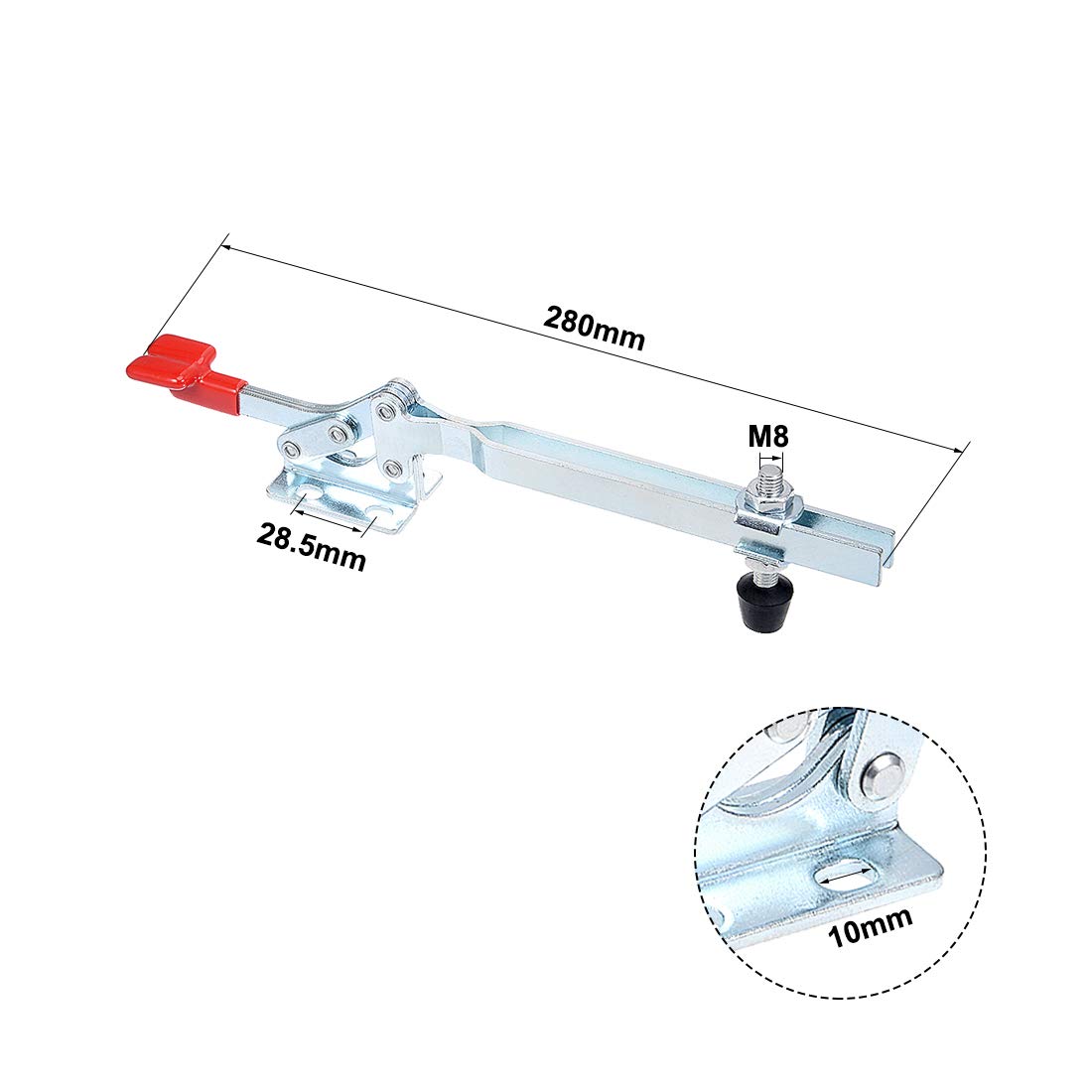

Specifications: Type: Horizontal Model: GH-22185 Bar Opens Angle: 96° Handle Opens Angle: 88° Holding Capacity: 250Kg / 550lbs Finish: Zinc Plated Material: Metal, Plastic, Rubber Cushion Handle Color: Red Mounting Hole Size: 10 x 6.5mm(L*W) Mounting Hole Distance: 28.5mm x 22mm(L*W) Screw Size: M8 x 42mm Clamp Size: 280 x 36 x 52mm(L*W*H) Package Content: 1pcs x Toggle Clamp Description： This Horizontal Quick-Release Toggle Clamp, is a must-have addition to your jig assembly. With its sturdy construction and efficient design, this essential tool ensures that you achieve a rock-solid grip on your work piece, thus providing a hold that won’t slip.
