sourcing map Terminal Block 500V 60A Dual Row 3 Positions Screw Electric Barrier Strip 5Pcs

• It is made of brass conductors, with great electrical conductive and reliability.

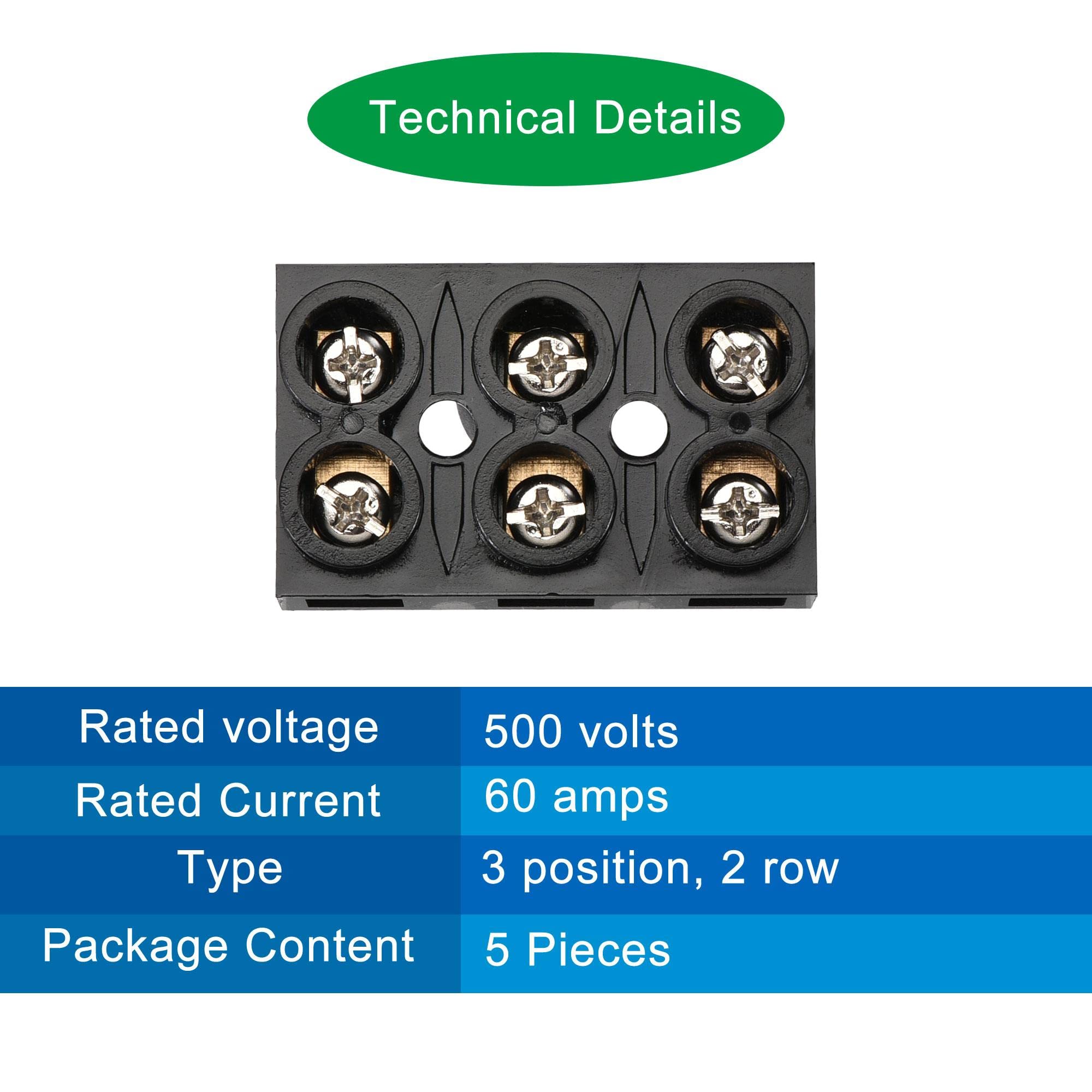

• Rated Voltage/Current: 500 volts/60 amps; Type: 3 Positions, 2 Rows, H Shape; Fit for Cable: 2.5-16mm².

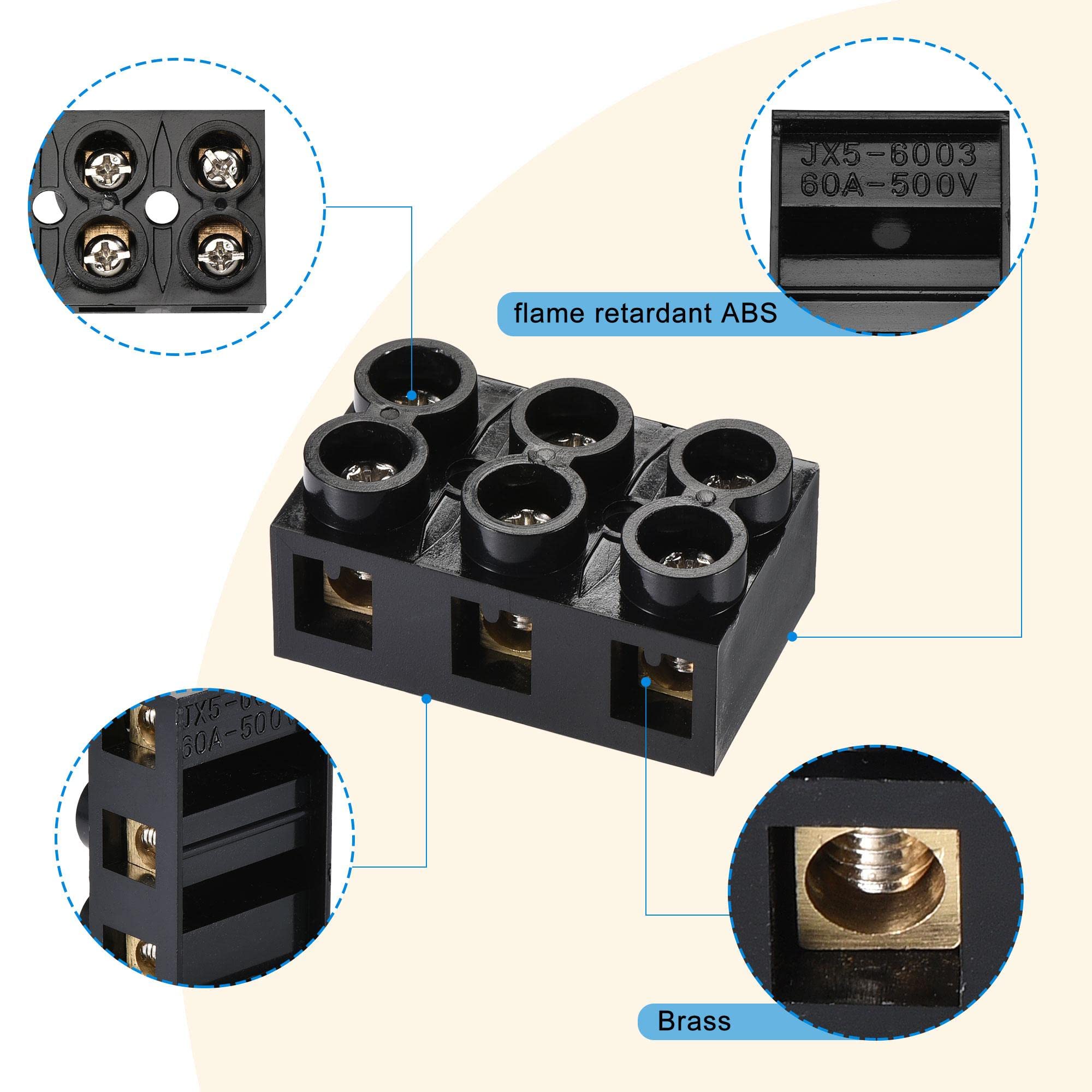

• The Terminal Block is an electrical connector, it consists of flame retardant ABS insulation part brass conductor. For wiring or grounding function.
• Loose the screw, insert the wire into the conductor hole, then fasten the screws to hold tightly.
• When wiring, be sure to disconnect the power; Do not use it in the case of exceeding the rated voltage or current.

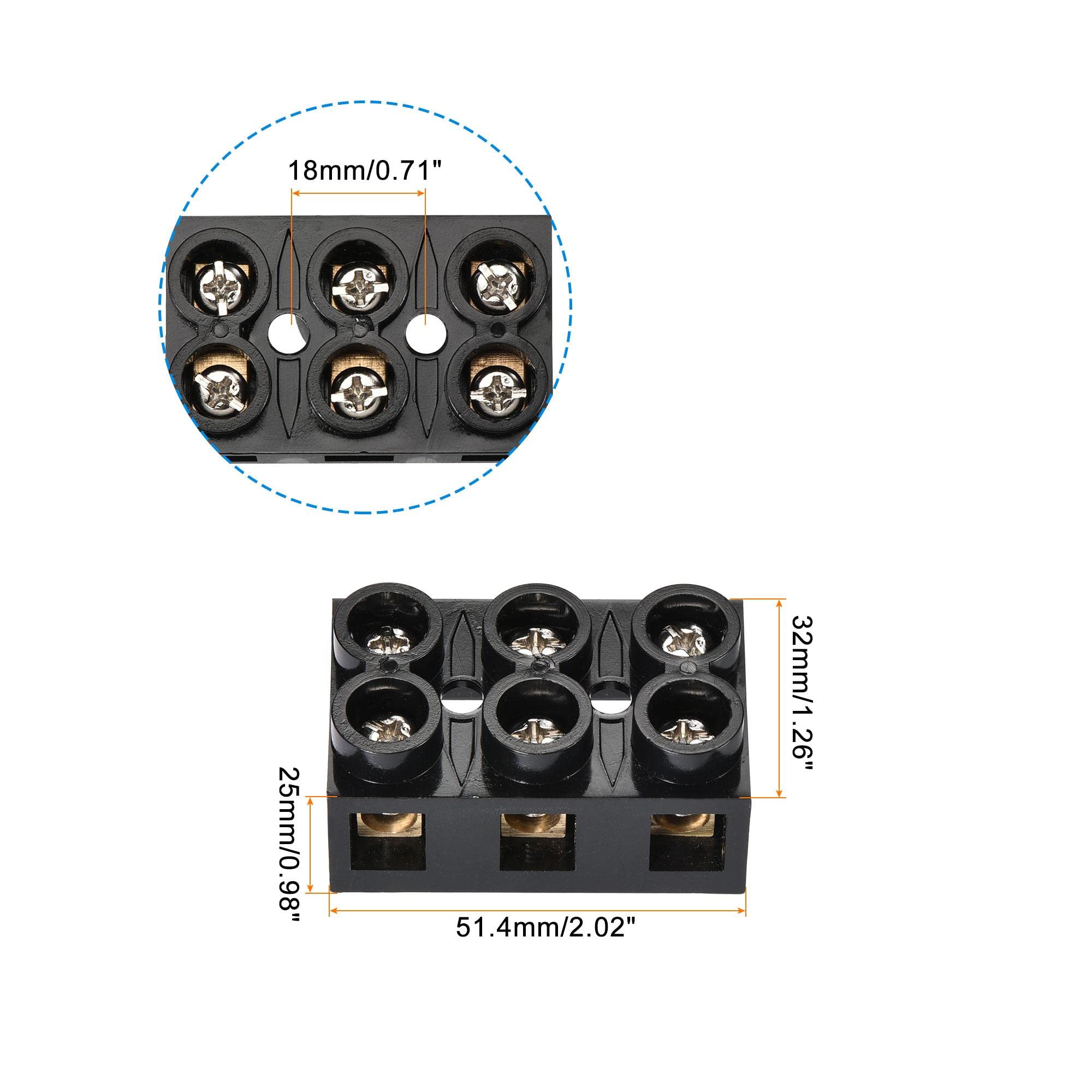

What is this? The Terminal Block is an electrical connector, it consists of flame retardant ABS insulation part brass conductor. For wiring or grounding function. What will I get? The terminal block, we provide here, is in size of: Poles: 3 Positions(Dual Row); Maximum Rated Voltage: 500 Volts; Maximum Rated Current: 60 Amps; Conductor Material: Brass; Insulating Material: ABS; Mount Hole Distance: 18mm/0.71 inch; Total Size: 51.4mm x 32mm x 25mm/2.02 inch x 1.26 inch x 0.98 inch(L*W*H); Color: Black; Fit for Cable: 2.5-16mm² In the package of 5 Pcs x terminal block Are there any advantages of the product? It is made of brass conductors, with great electrical conductive and reliability. How to use it? Loose the screw, insert the wire into the conductor hole, then fasten the screws to hold tightly. What should I notice? When wiring, be sure to disconnect the power; Do not use it in the case of exceeding the rated voltage or current.
