sourcing map Synchronous Motor AC 220-240V 0.9-1.1RPM 50-60Hz CCW/CW 4W Reduction Gear Motor

• [Specification] - Voltage: AC 220-240V; Speed: 0.9-1.1RPM; Frequency: 50-60Hz; Power: 4W; Direction: CW/CCW; Torque: 12 kgf.cm; Wire Length: 40cm/ 15.7 inch.
• [Typical Applications ] - heater machine / electric fan / Christmas tree / Air conditioner / Massagers / Dynamic Visualizer / Arts & Crafts lighting / popcorn machine.
• [Show Your Style] - An Good Motor For Hand-Made, DIY Project, Model And Anything Else You Want.
• [Features] -AC motor is small power consumption, torque, low noise, small size, light weight, easy to use.
• [Advantage] - The permanent magnet synchronous motor and the slowdown in one body can control the pros and cons of the synchronous motor.At rated frequency, the motor speed is not affected by voltage and remains stable. If the motor is overloaded or stalled, the motor coil will not burn.

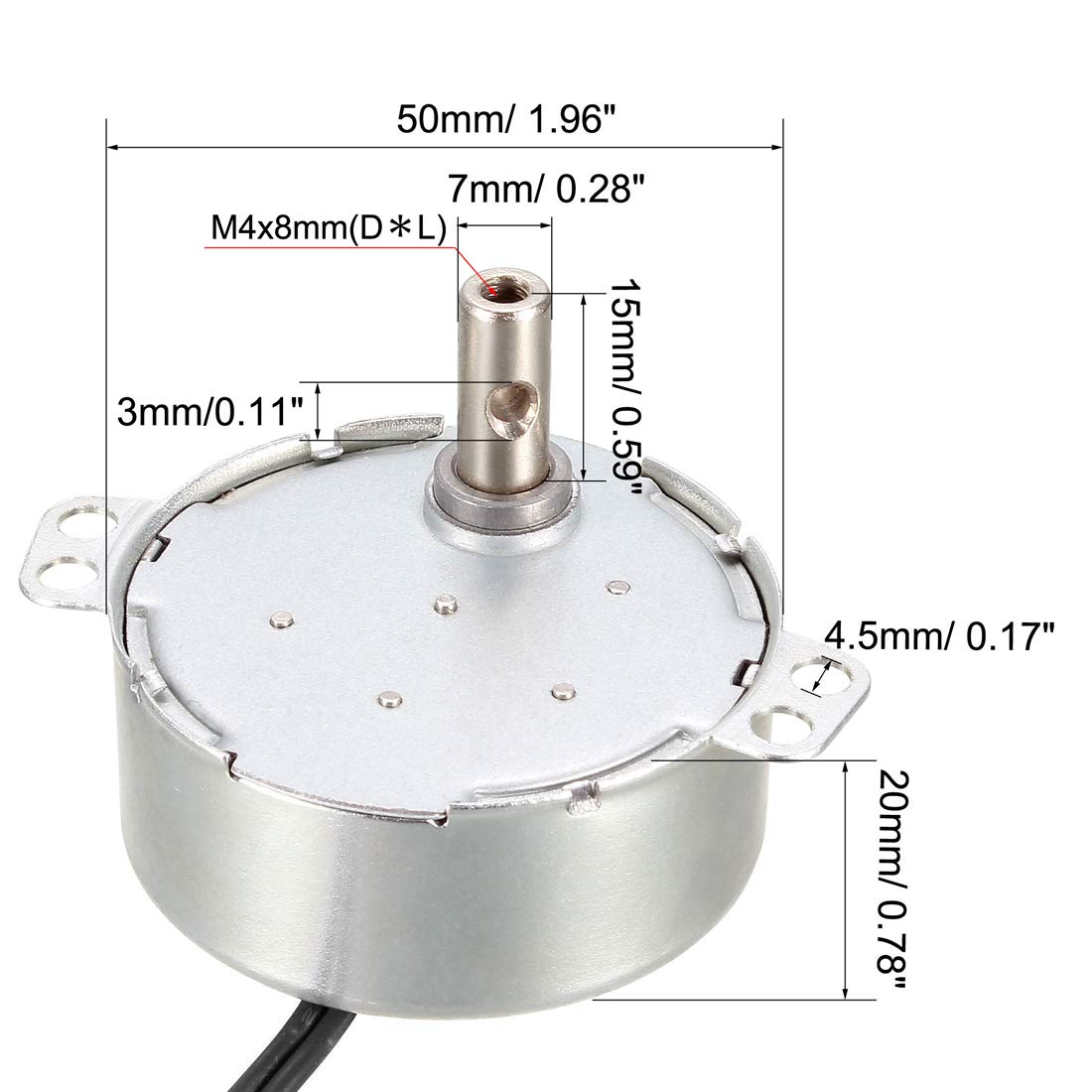

Description It is mainly used for gluing machine, heaters, monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus, science and education instruments. Typical Applications: Mahjong desk, Automatic Equipment, Electric-drive devices. Specification Rated Voltage: AC 220-240V Power: 4W Manner of Working: CW/CCW Rated Frequency: 50-60Hz Rated Speed: 0.9-1.1RPM Torque: 12kgf.cm Body Diameter: 50mm/ 1.96 inch Body Height: 20mm/ 0.78 inch Total Length: 65mm/ 2.55 inch Mounting Hole Diameter: 4.5mm/ 0.17 inch Shaft Diameter: 7mm/ 0.28 inch Shaft Length: 15mm/ 0.59 inch Shaft Hole diameter: 3mm/0.11 inch Wire Length: 40cm/ 15.7 inch Package: 1 x AC Synchronous Motor
