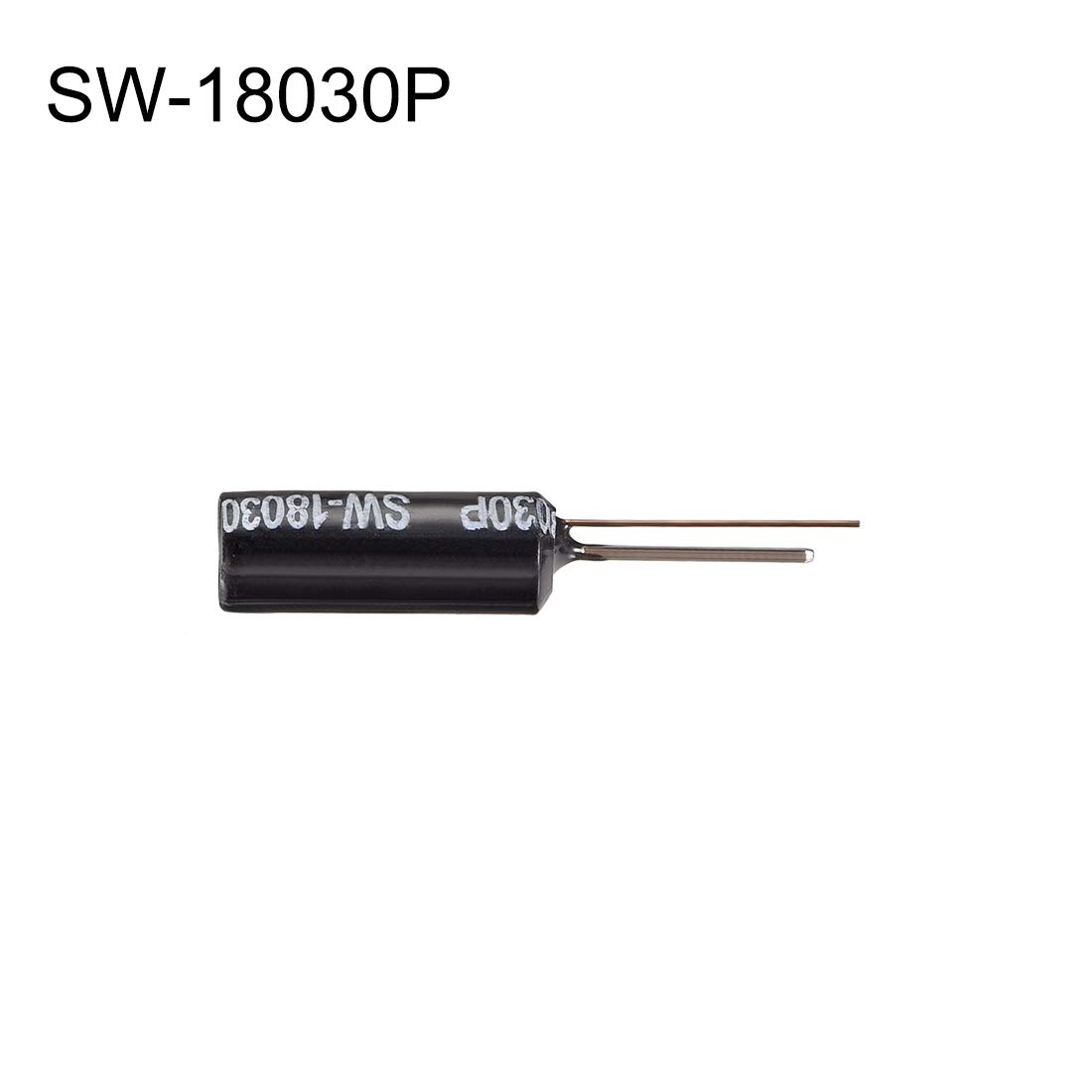

sourcing map SW-18030P Retarded Sensitivity Spring Electronic Vibration Sensor Switch 30Pcs

• Model Number: SW-18030P; Sensitivity: Retarded Sensitivity; Max.Voltage: 12V
• Rated Thermal Current: 5mA; Insulation Resistance: 10M ohm; Max.Temperature Resisting: 100℃
• 【CHARACTERISTICS】Non-directional,turning on by any touching off angle.
• 【ADVANTAGE】Features retarded sensitivity, sealed package, good performance and reliable.
• 【APPLICATION】Applied to the small household appliance, sports equipmens and anti-theft devices.

Description: 1.Non-directional,turning on by any touching off angle. 2.Applied to the ,small household appliance, sports equipmens and anti-theft devices. 3.Features retarded sensitivity, sealed package, good performance and reliable. 4.In silent surroundings it keeps on turning off state with any angle, When it is hit by outside force and comes to the proper shaking state or the moving speed comes to the proper centric force, then the current leader point will display turning on state for a short time the electric character will be changerd, as the outside force disappears, it restores the turning off state. Specification: Product Name: Vibration Switch Model Number: SW-18030P Sensitivity: Retarded Sensitivity Max.Voltage: 12V Rated Thermal Current: 5mA Insulation Resistance: 10M ohm Max.Temperature Resisting: 100℃ Pin Size: 10mm x 0.6mm(L*D) Body Dimension: 12mm x 4.5mm(L*D) Package Content: 30 x Vibration Switch
