sourcing map Surface Mount Wired NC Door Sensor Alarm Magnetic Reed Switch White MC-38

• [Specification] - Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 10~15mm

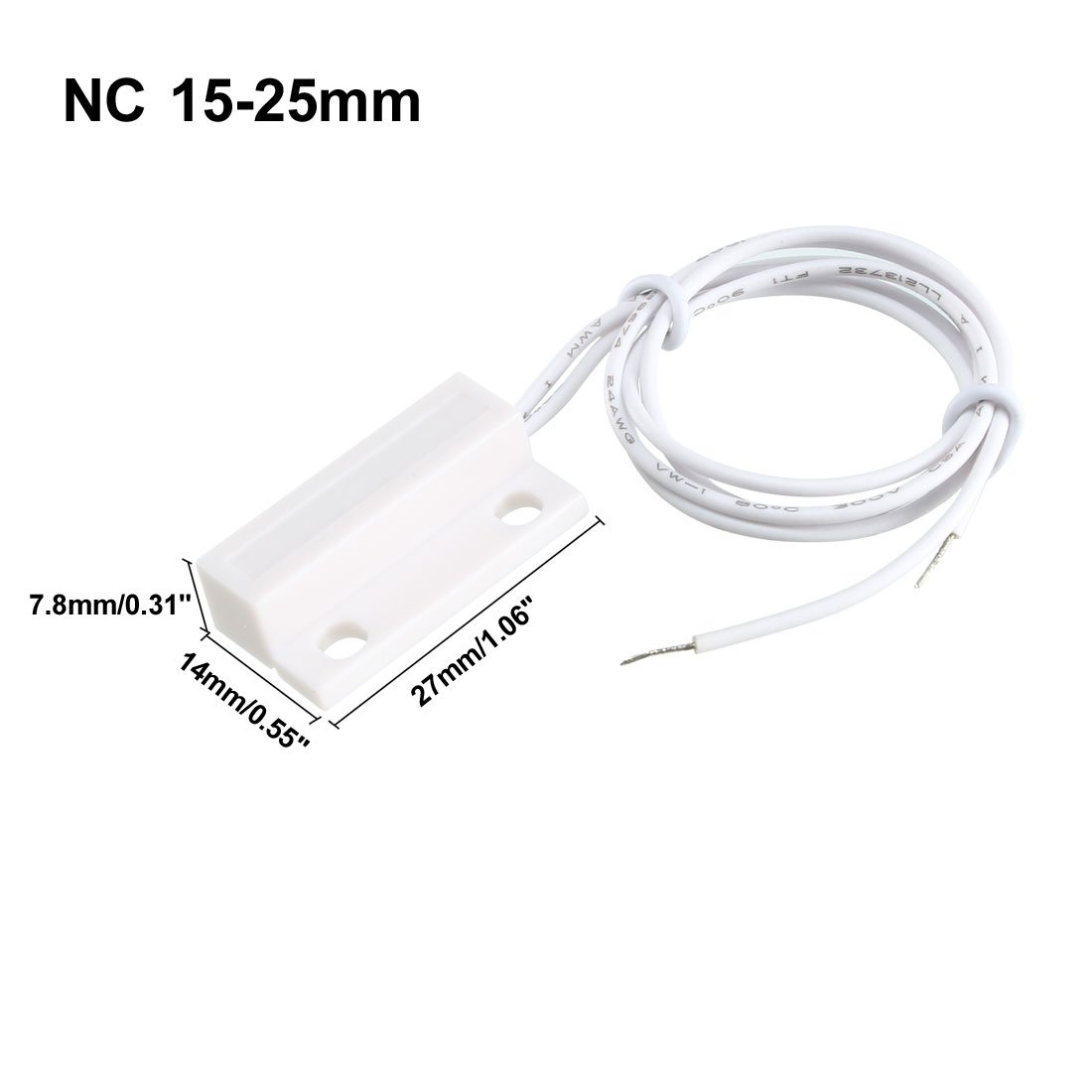

• [Dimension] - Cable Length: 26cm/10.24"; Total Size: 27 x 14 x 7.8mm / 1.06" x 0.55" x 0.31" (L*W*H)
• [Material] - The magnetic switch alarm is with durable ABS housing for better rust resistance

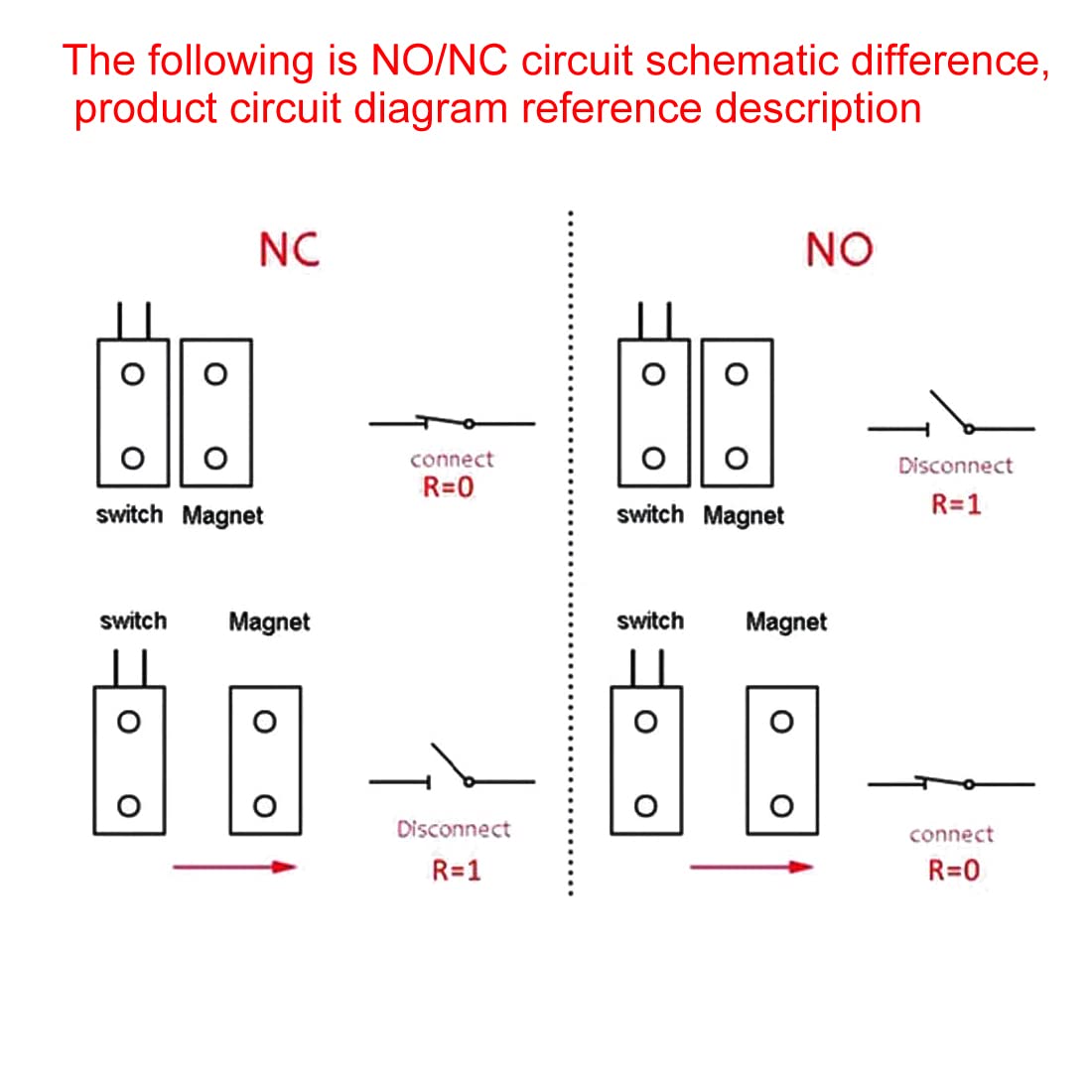

• [Normally Closed] - N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off )
• [Applications] - The Wired Door Sensor is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.

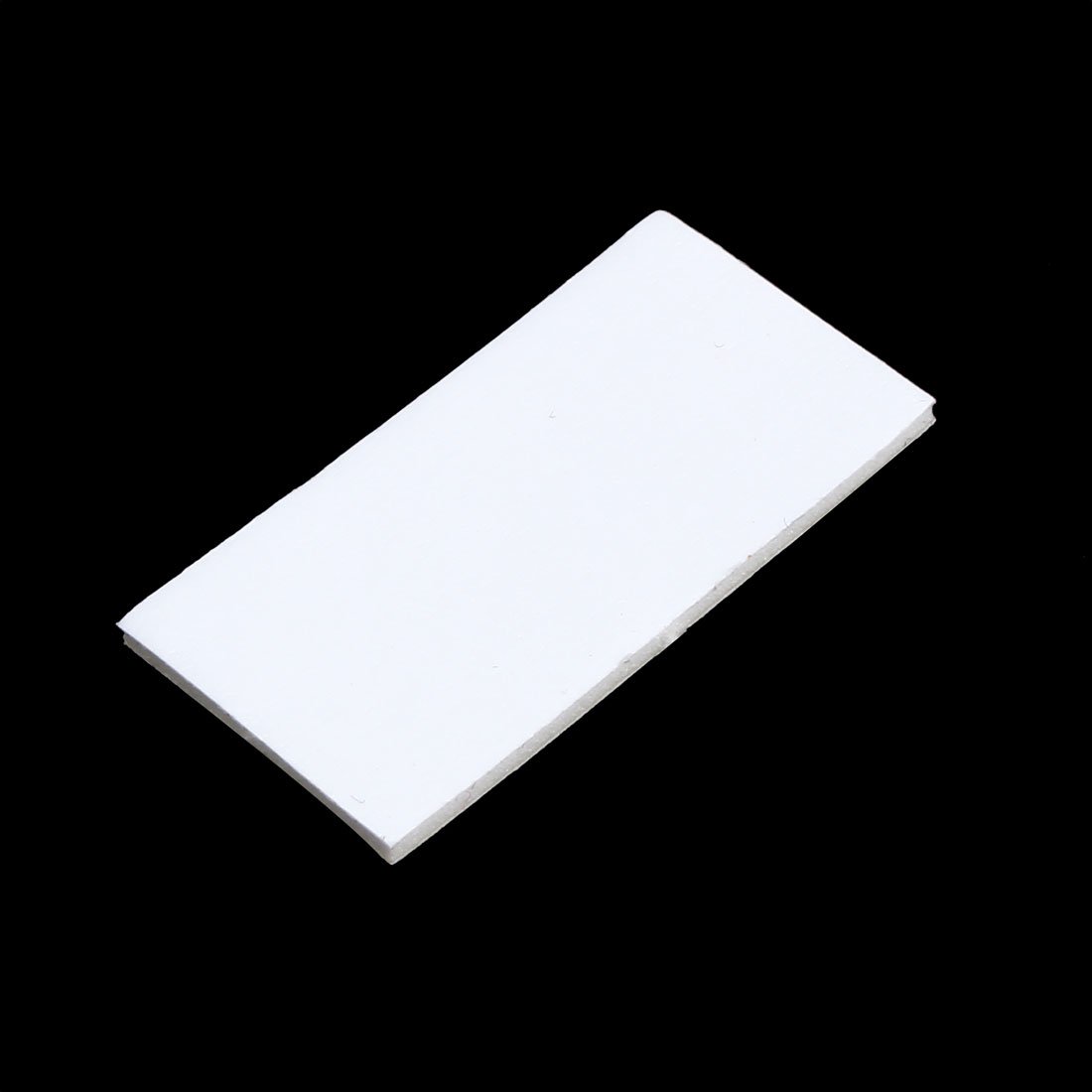

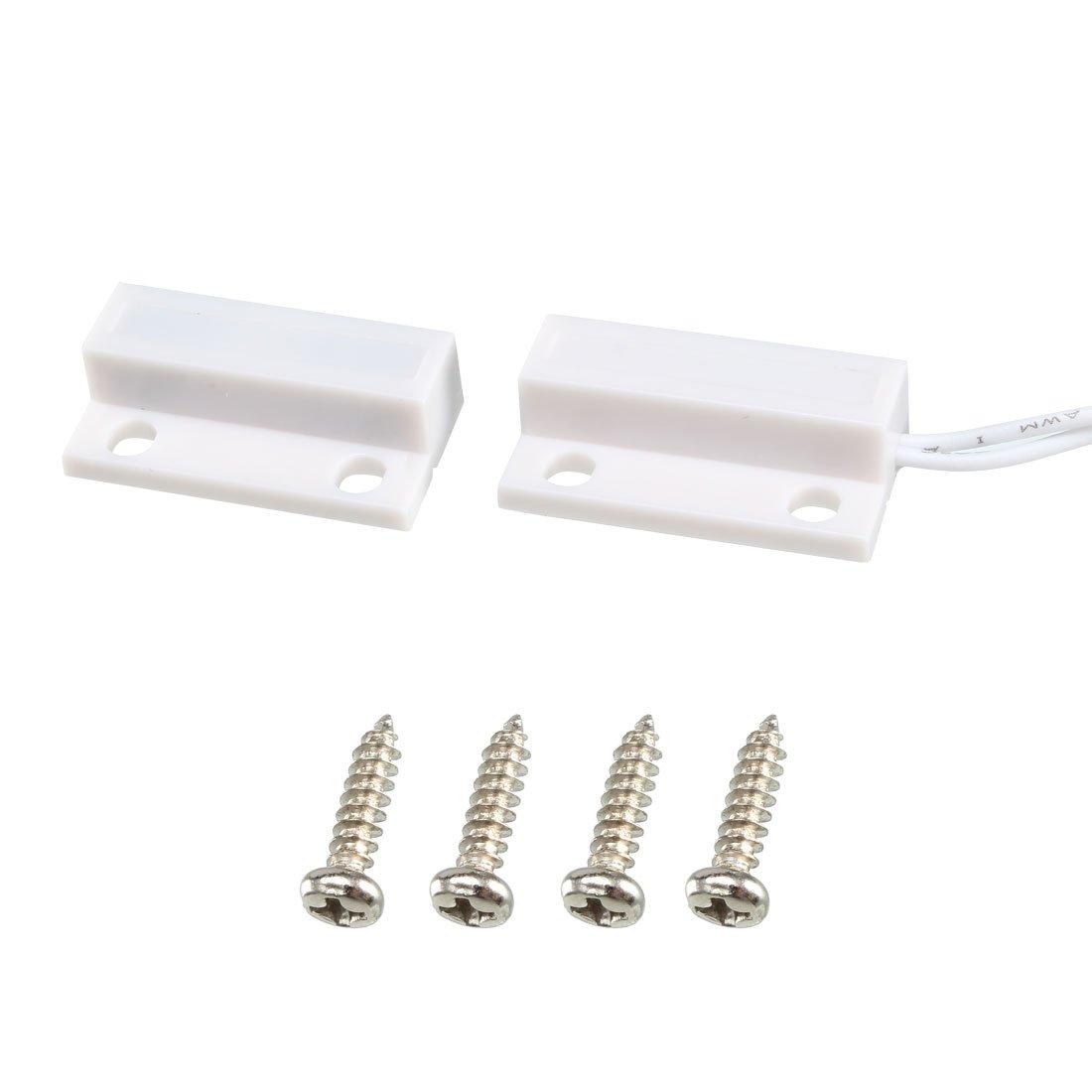

Description: 1.Self-Adhesive Mount, Screw Surface Mount contact, ABS Housing. Long wire lead that can side mounted. 2.Switch Type: NC means Normally Closed:When the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit is not conductive ( light off ). 3.Work as an anti-theft alarm, perfect for wood door and window. 4.N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ) Specification: Product Name: Magnetic Door Switch Model: MC-38 Contact Type: NC (Normally Closed) Actuation Distance: 10-15mm Max. Current: 0.5A Max. Power: 10W Working Voltage: DC100V Each Size(Approx): 27 x 14 x 7.8mm / 1.06-inch x 0.55-inch x 0.31-inch (L*W*H) Mounting Hole Diameter: 4mm/0.16-inch Cable Length(Each): 26cm / 10.24-inch Material: ABS (Housing) Wire Type: 1007UL#24AWG Color: White Net Weight: 12g Package Content: 1 x Magnetic Door Switch, Some Install Parts Note: Door magnetic induction can only provide a switch signal, which can not directly load the power, nor directly connect the lamp!
