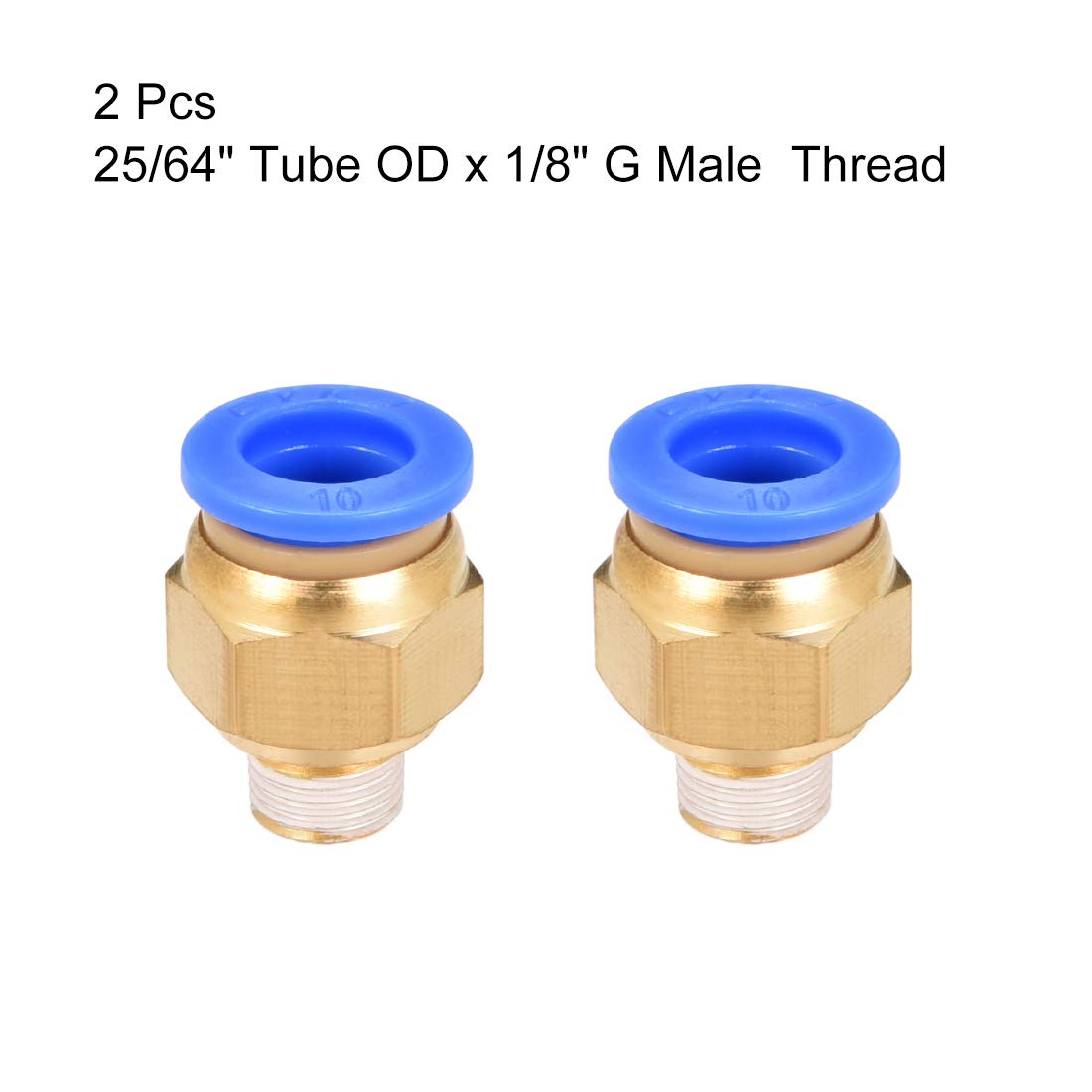

sourcing map Straight Pneumatic Push to Quick Connect Fittings G1/8 Male x 10mm Tube OD 2pcs

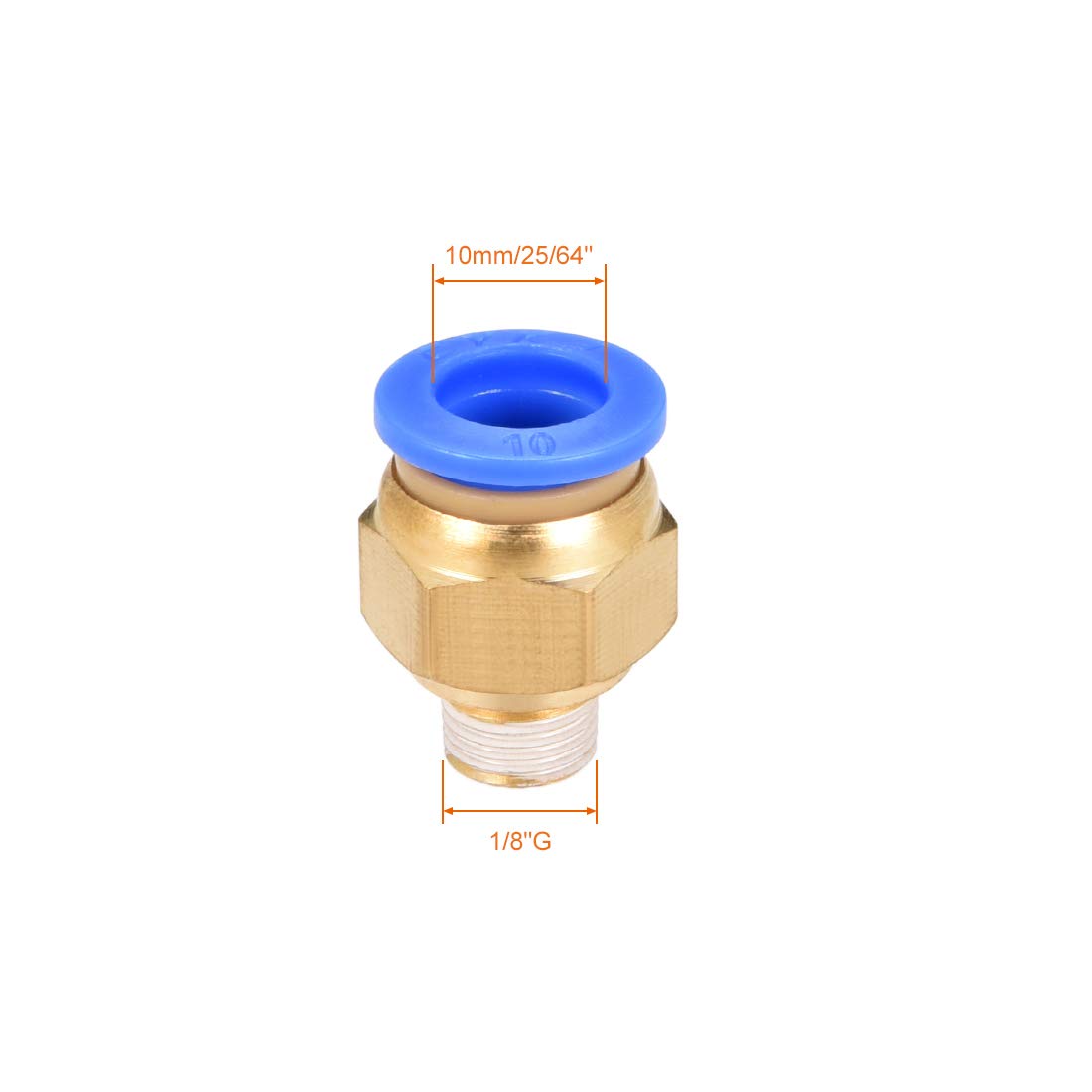

• Product Name : push to quick fitting; Model : PC10-01 ; Tube and Thread Size : 10mm x 1/8" G
• Operating Pressure : 0-0.9MPa ; Operating temperature：0 - 60 Degree Celsius
• TUBE FITTINGS. Push-to-connect tube connection on one end and male threads on the other end. A good release cap can withstand greater and stronger pressure without tripping.
• ADVANTAGE. Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
• MATERIAL. Designed for using to connect with polyethylene, nylon and PU tubing.Quick and simple installation.

<br>Product Features:</b><br />Product Name : Quick Fittings<br />Model : PC10-01<br />Net Weight : 22g<br />Color : Gold Tone,Blue<br />Material : Plastic,Brass<br />Thread Size : 1/8" G<br />Tube Size (OD) : 25/64" /10mm<br />Type: Male Straight Thread Connector<br />Thread Tube Inner Hole Type : Hex Type<br />Operating Pressure : 0-9MPa<br />Operating temperature：0 - 60 Degree Celsius<br />Dimension : 25mm x 17mm / 0.98-inch x 0.67-inch (L x W）<br /> <br /><br>Package Content:</b><br />2pcs x Quick Fittings<br /> <br /><br>Description:</b><br />1.The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely.<br />2.Push-to-connect tube connection on one end and male G threads on the other end.<br />3.A good release cap can withstand greater and stronger pressure without tripping.<br />4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.<br />5.Elliptical release ring help to connect tube easily by manual, no special tools required.<br />6.Outside (and Inside where applicable) hexagonal wrench tightening.<br /> <br /><br>Mounted:</b><br />1.Cut the pipe flat, no slope<br />2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.<br />3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.<br />4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.<br />
