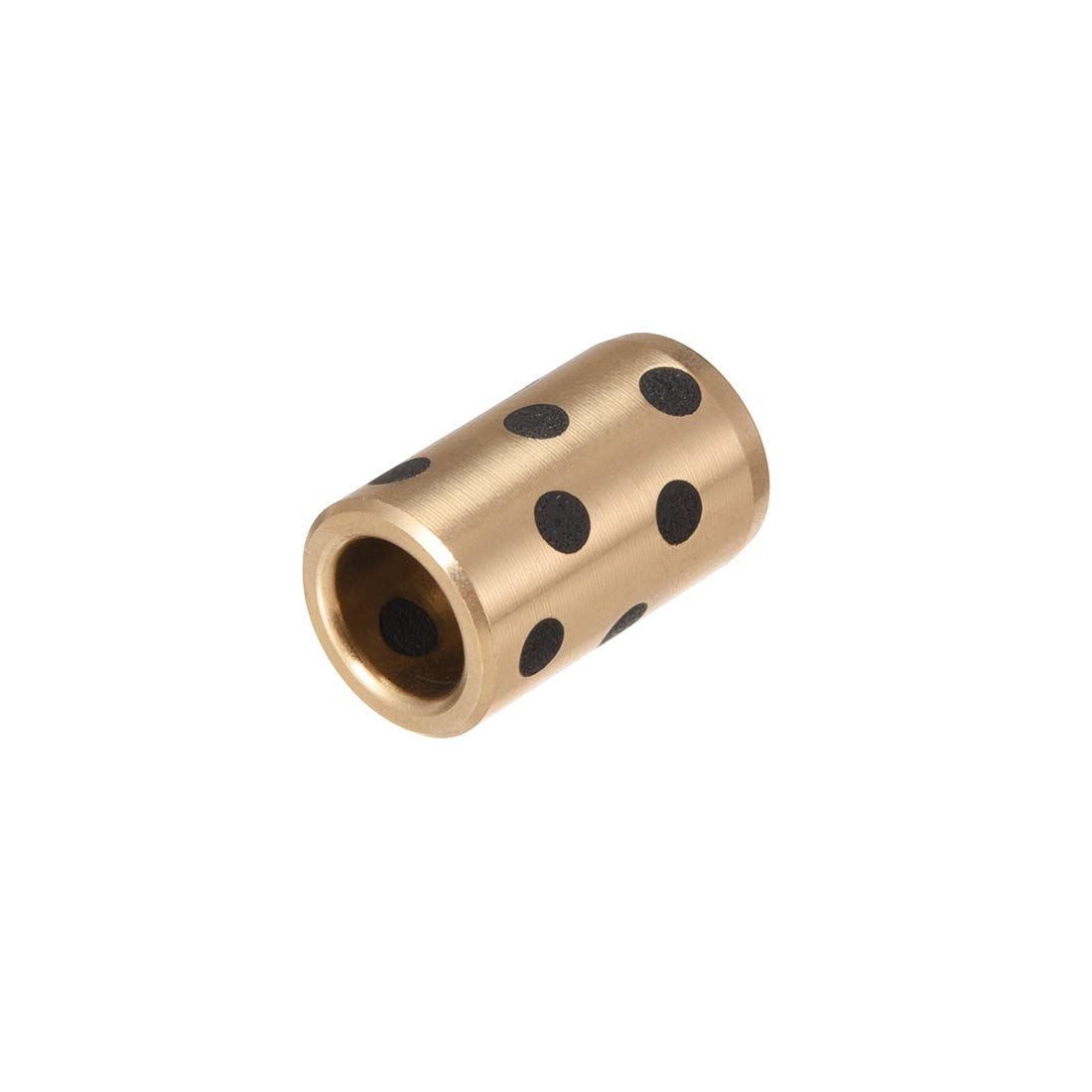

sourcing map Sleeve Bearing 8mm Bore x 12mm OD x 20mm Length Cast Brass Bushings

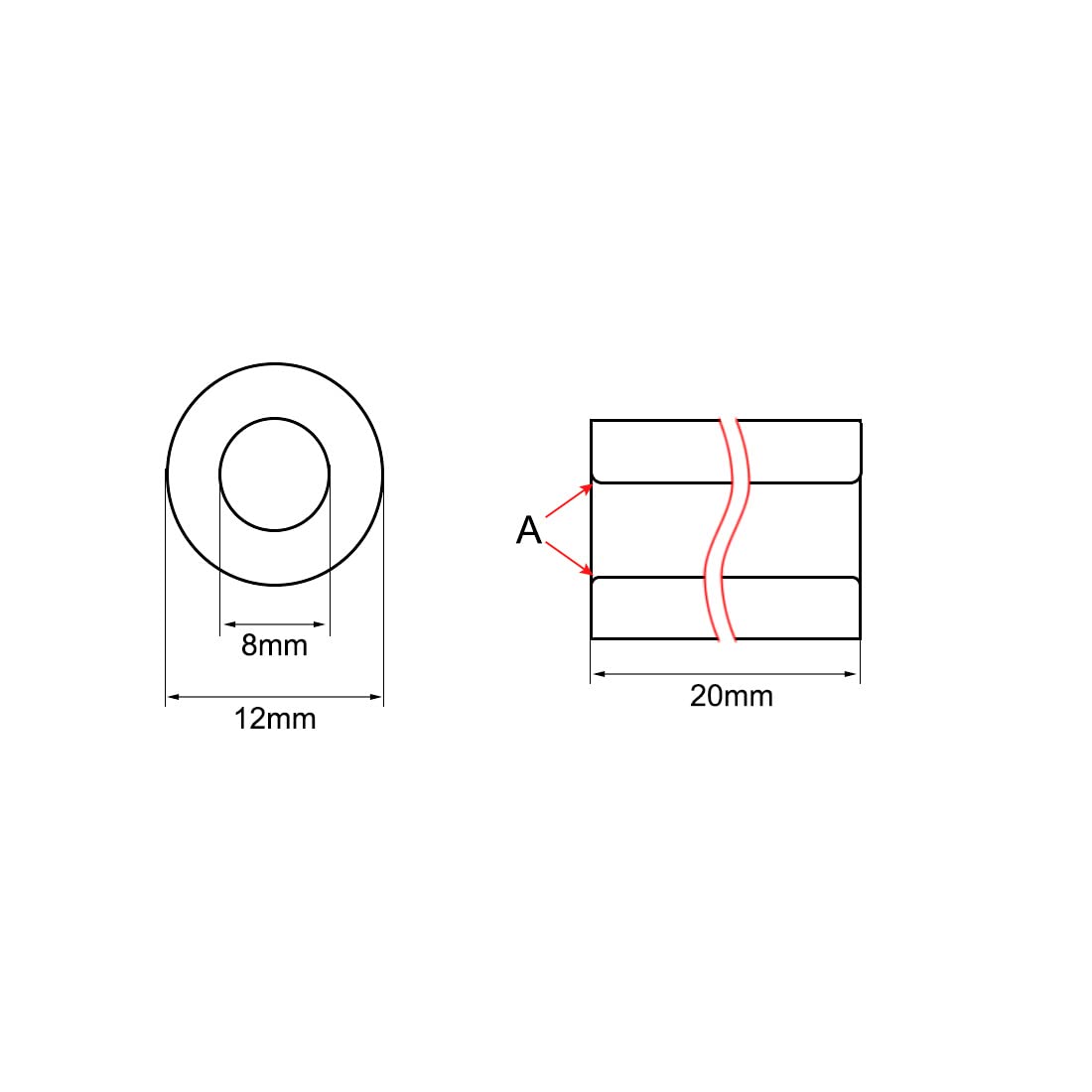

• Bore: 8mm, Outside Diameter: 12mm, Length: 20mm
• Material - Made of cast brass and fitted with graphite which is self-lubricating and does not require oiling.
• Feature - Oilless, maintenance-free, good frictional property. Featured with good load capacity and wear resistance performance.
• Function - The bushings can be used for different purposes, such as positioning, wear and vibration reduction, or to isolate the shaft from special media to increase the life of the shaft.
• Application - Wide application such as textile machine, printing machine, hydraulic loader, fitness equipment and agricultural machinery.

Description: Plain Bearings are made of cast brass mounted with graphite, which are self-lubricating and don't need oiling. As good frictional property as high sliding , Sleeve Bearings have a small friction factor about 0.12. Cast Brass Bushing still allows high sliding during high temperature and corrosive environment. Oil-less Sleeve Bearings are most suitable for applications with rotating movements and where self-lubricating properties of the material Lubricating. Fixed method: Use vise or punching machine to press in. Use adhesive or locking screws to Anti falling. Specification: Material: ZCuZn25Al6Fe3Mn3+Graphite Bore Diameter: 8mm Outside Diameter: 12mm Length: 20mm Number of Item: 1 Pack
