sourcing map Sleeve Bearing 30mm Bore x 34mm OD x 30mm Length Plain Bearings Wrapped Oilless Bushings

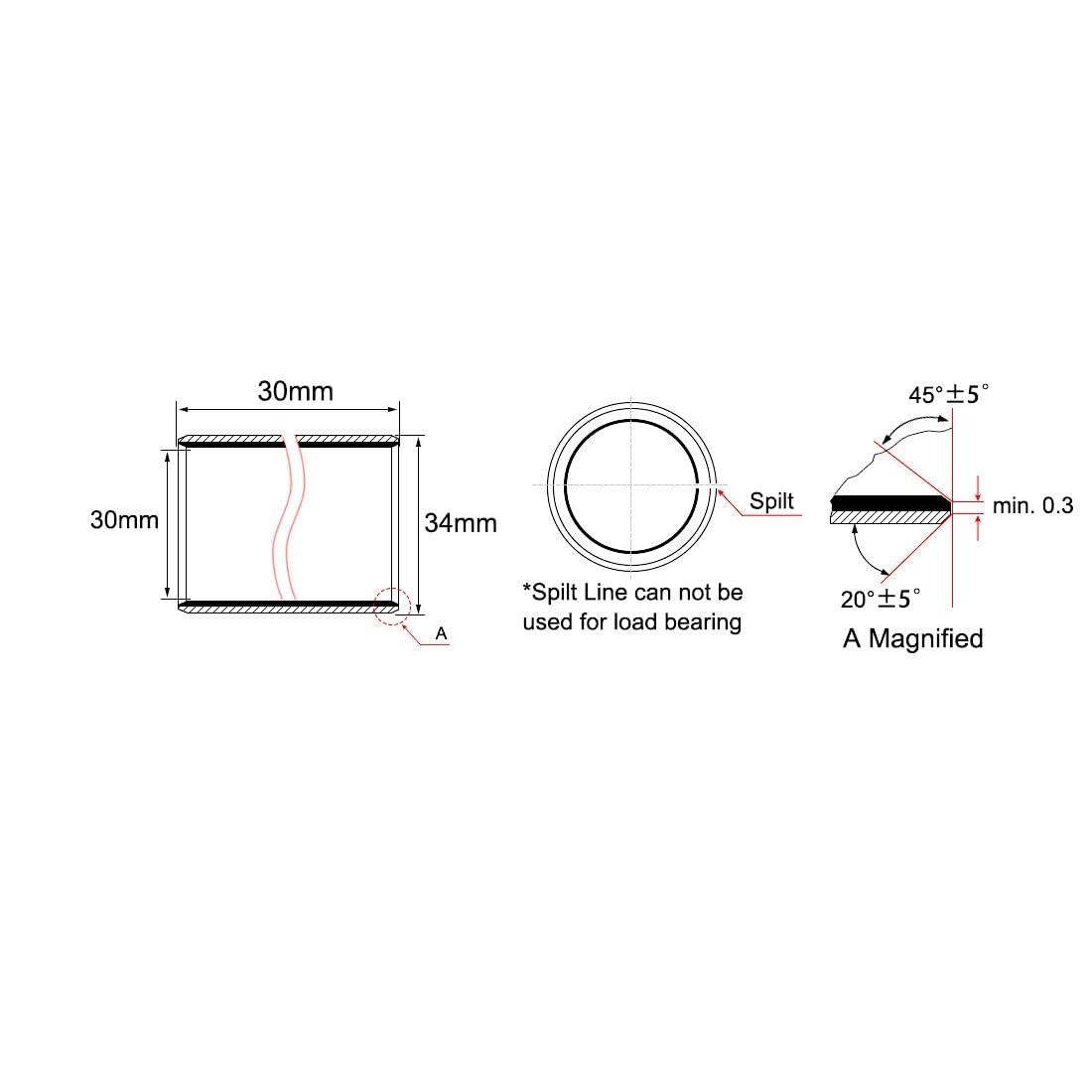

• Bore: 30mm, Outside Daimeter: 34mm, Length: 30mm
• Oilless, maintenance-free, good frictional property
• Carbon steel base with Bronze Sintered and composite coating. Suitable for sliding movements
• Featured with good load capacity and wear resistance performance
• Wide application such as textile machine, printing machine, hydraulic loader, fitness equipment and agricultural machinery

Description: Plain Bearings are constructed with carbon steel as base, sintered porous bronze as its interlayer, rolled with PTFE and Lead compound as inner surface, and copper-plated on the outer surface. Wrapped Bushing is self-lubricating. It offers good frictional property, wear resistance and low noise. Solid friction Oilless Bushing can operating during wide temperature rang. Suitable for applications with sliding movements. Oilless Sleeve Bearings are most suitable for place where self-lubricating properties of the material are required. Note: Spilt Line can not be used for bearing. Specification: Material: Carbon Steel Base with Porous Bronze Sintered Finish: PTFE and Lead Rolling, Copper Plating Friction Factor (Dry Friction): 0.04-0.2 Friction Factor (Oil Lubrication): 0.02-0.07 Bore Diameter: 30mm Outside Diameter: 34mm Length: 30mm Number of Item: 1 Pack
