sourcing map Sleeve Bearing 1/2" Bore x 19/32" OD x 1/2" Length Plain Bearings Wrapped Oilless Bushings 2pcs Self-Lubricating for Industry Equipment

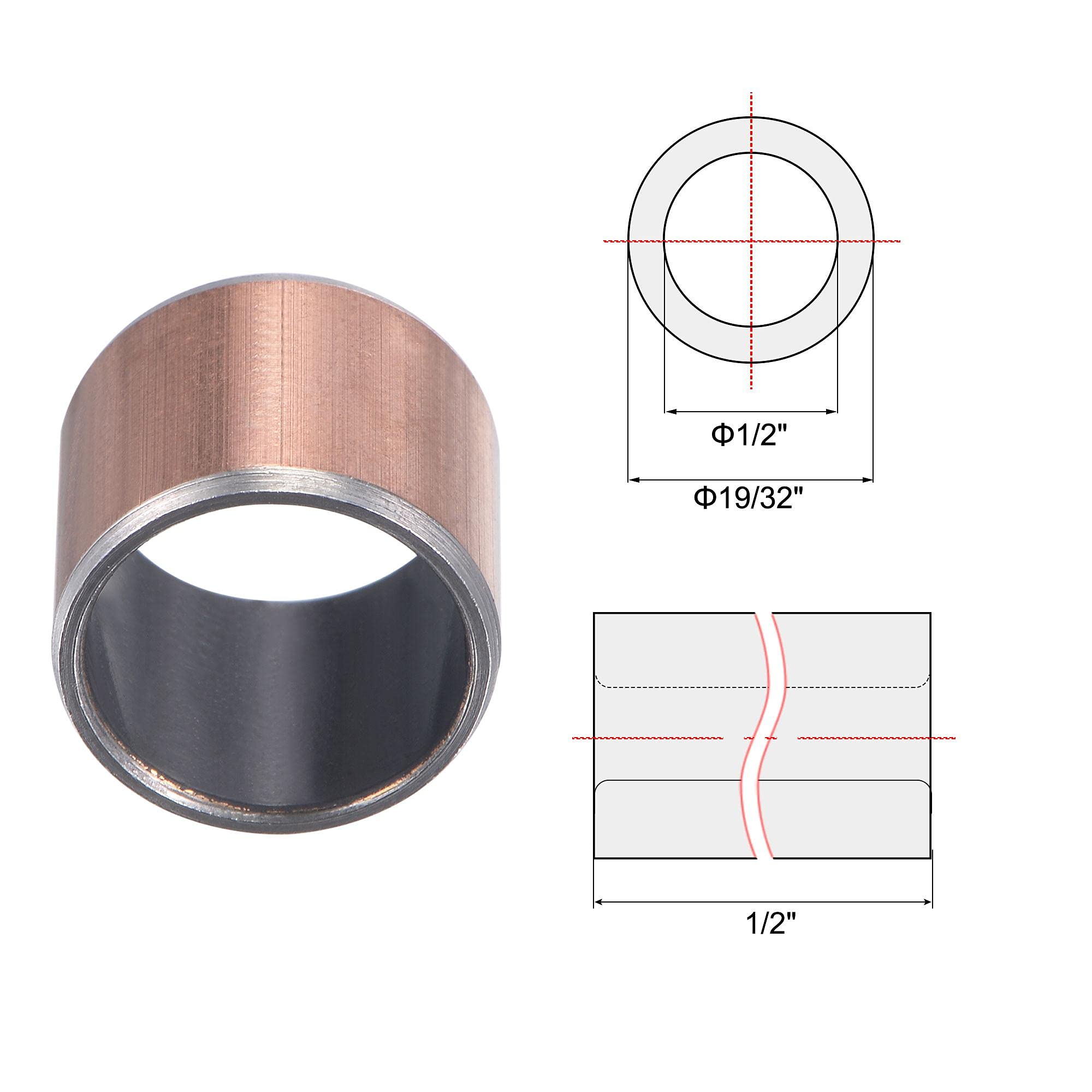

• Size - Bore Diameter: 1/2", Outside Diameter: 19/32", Length: 1/2". Good dimensional stability. Thin wall and light weight, suitable for compact spaces.
• Material - Carbon steel base with Bronze Sintered and composite coating. With high mechanical strength and good thermal conductivity, it is suitable for use in a wide range of low and high temperatures.
• Feature - Oilless, maintenance-free, good frictional property, stable low friction coefficient. Featured with good load capacity and wear resistance performance.
• Function - The bushings can be used for different purposes, such as positioning, wear and vibration reduction, isolate the shaft from special media to increase the life of the shaft.
• Application - Wide application such as textile machine, printing machine, hydraulic loader, fitness equipment, agricultural machinery and other industrial equipment.

Specification: Material: Steel backing, Sintered Porous Spherical Copper Powder Layer, PTFE Finish: Copper Plating Friction Factor (Dry Friction): 0.04-0.2 Friction Factor (Oil Lubrication): 0.02-0.07 Bore Diameter: 1/2" Outside Diameter: 19/32" Length: 1/2" Package Contents: 2 x Sleeve Bearings Description: Plain Bearings are constructed with steel as a base, sintered porous spherical copper powder layer, rolled with PTFE and Lead compound as inner surface and copper-plated on the outer surface. Wrapped Bushing is self-lubricating. It offers good frictional property, wear resistance and low noise. Solid friction Oilless Bushing can operate during a wide temperature range. Suitable for applications with sliding movements. Oilless Sleeve Bearings are most suitable for places where self-lubricating properties of the material are required. Note: Spilt Line can not be used for bearing.
