sourcing map Shunt Resistor 200A 75mV for DC Current Ammeter Analog Panel Meter External FL-2 Shunt Resistance Divider

• 75mV Voltage Drop and 200A Rated (Maximum) Current, 75mV satisfies most of the DC ammeter.
• Made of Copper with Anti-Rust plated, ensures the performance of stability and durability.
• 0.5% Accuracy and 120% Overload Rated Current(For 2 hours)

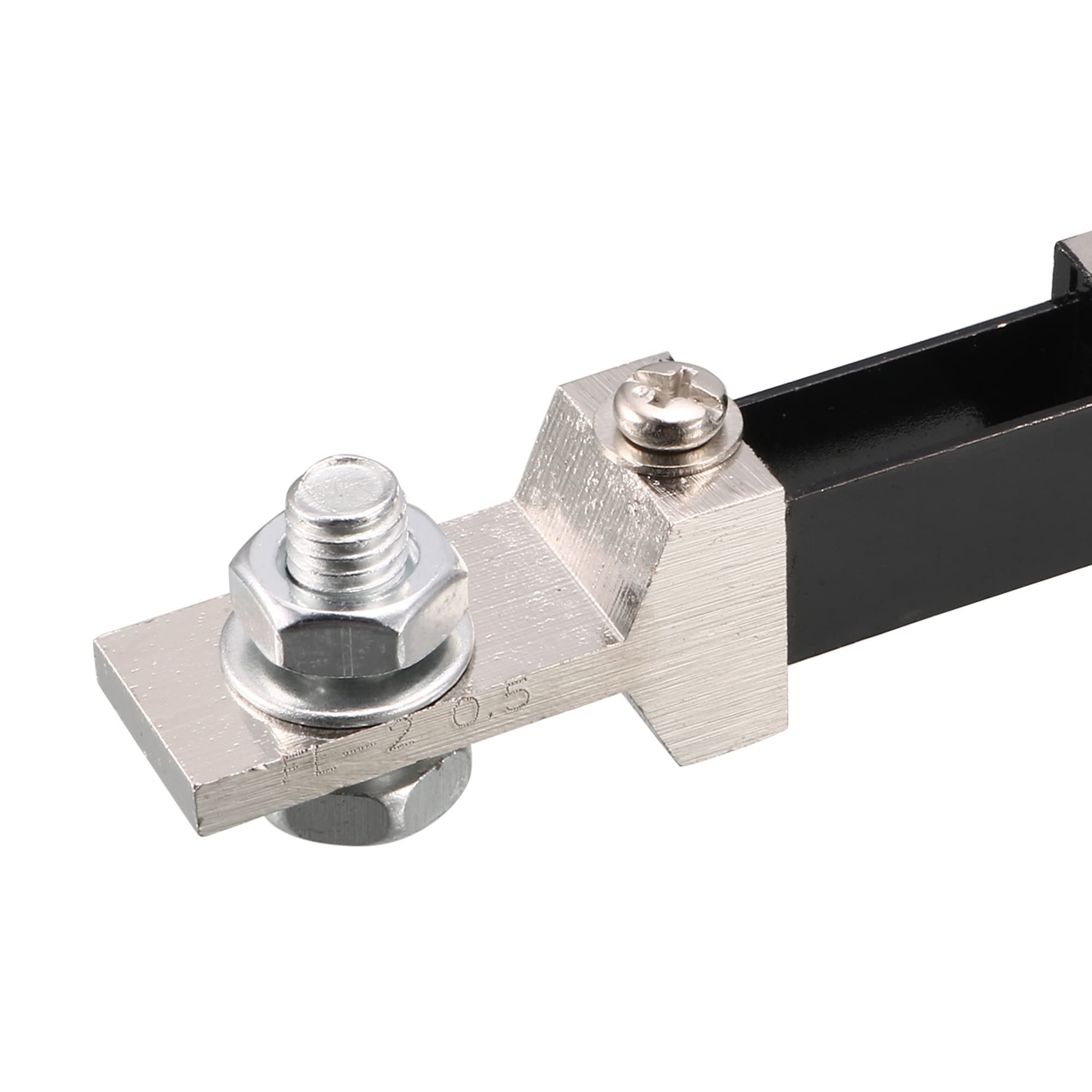

• External type. Two holes on both sides for a solid placing, and nuts for the circuit connection.
• Connection. A shunt needs to be placed parallel with the Ammeter(Moving Coil Galvanometer), to bypass the current. Normally, the two outside terminals were connected with the power circuit directly, and both the inside terminals placed in series with the Meter.

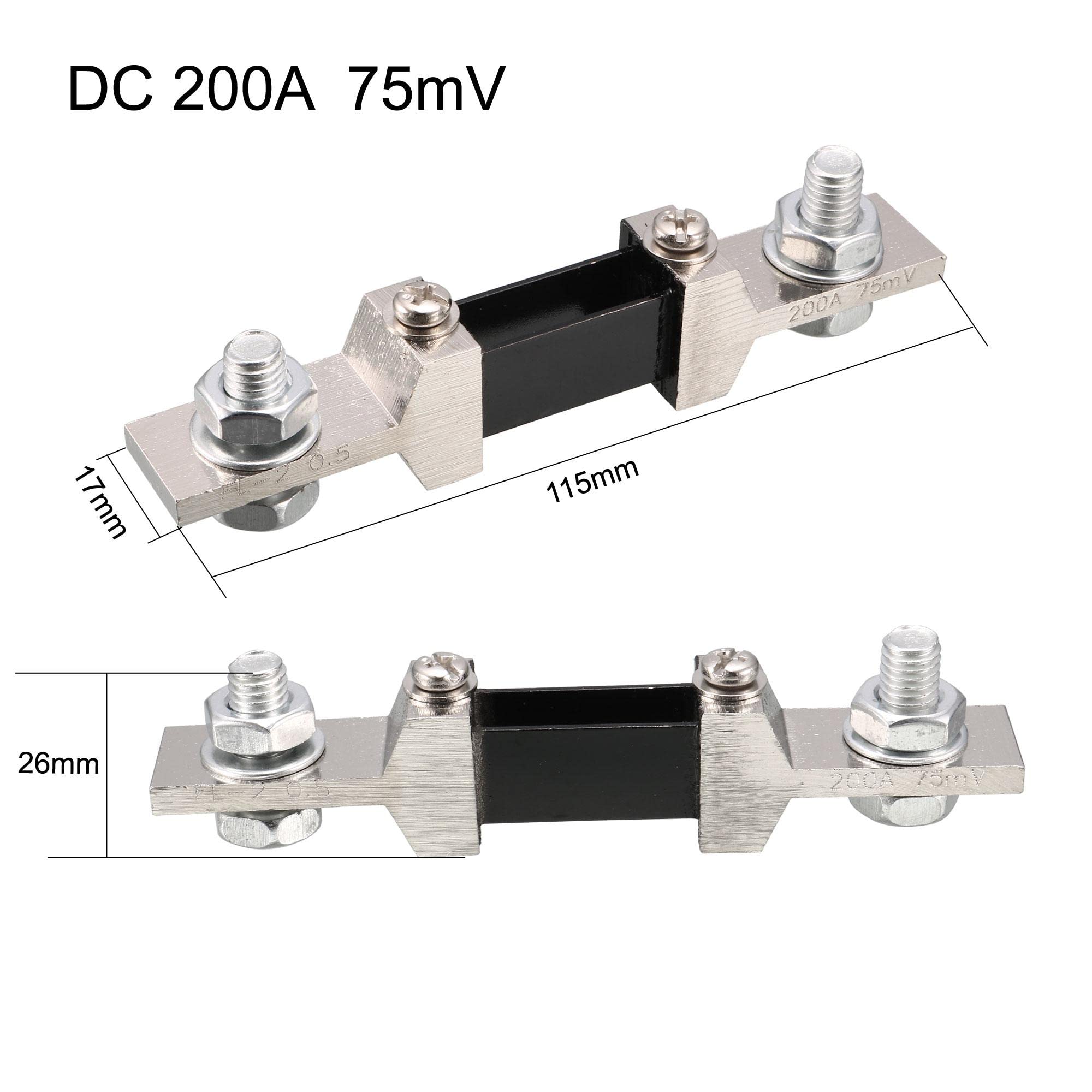

200A DC Ammeter Shunt Resistor Rated Current: 200A Voltage Drop: 75mV Materials: Copper Overload Rated Current: 120%(2 Hours) Accuracy: 0.5% Working Temp: -40C to 60C(-40F to 140F) Type: FL-2 External Length: 115mm Width: 17mm Overall Height: 26mm Weight: 142g Application: An ammeter shunt allows the measurement of current values too large to be directly measured by a particular ammeter. In this case, a separate shunt, a resistor of very low but accurately known resistance, is placed in parallel with a voltmeter, so that all of the current to be measured will flow through the shunt. Package Content:1 pcs 200A / 75mV External Shunt Resistor
