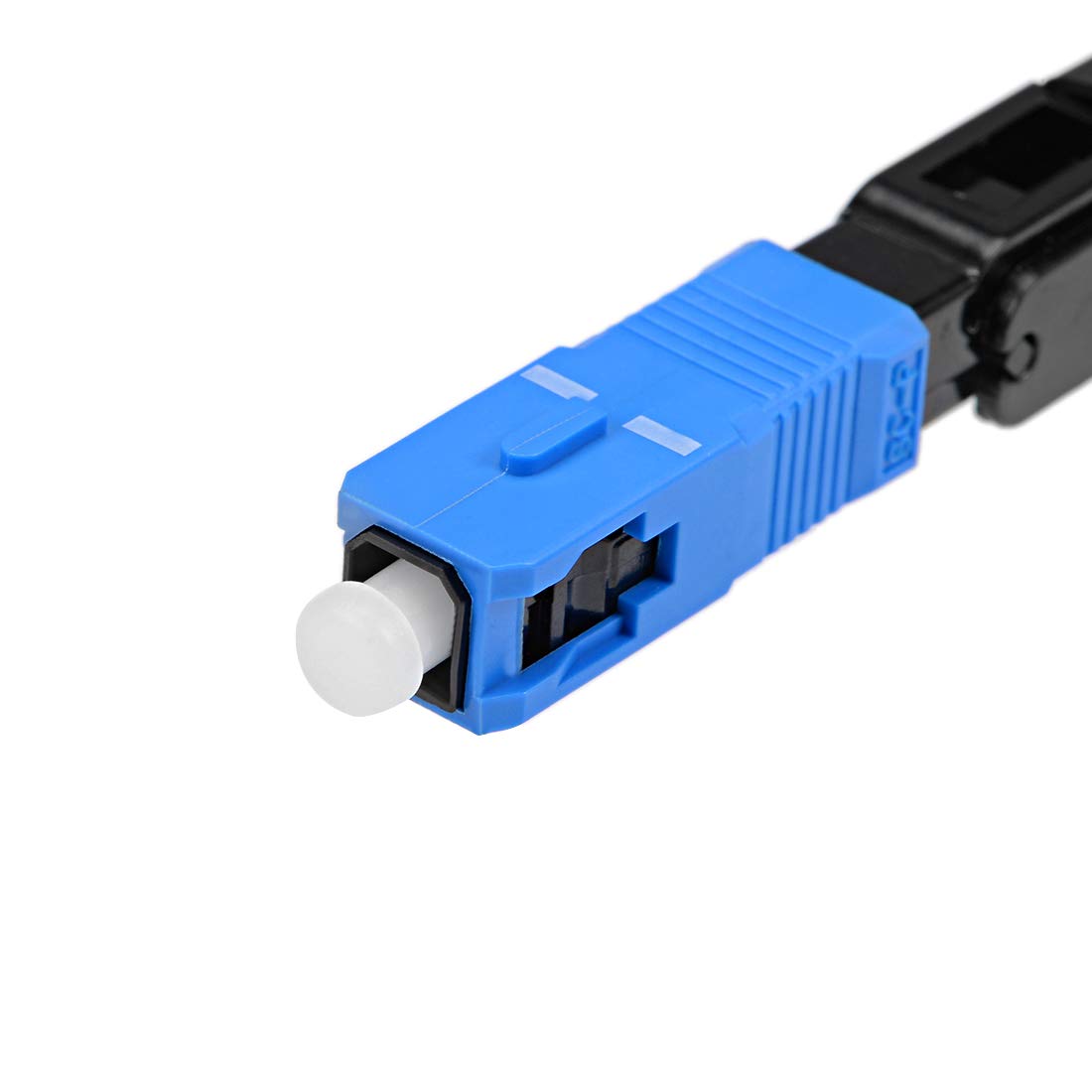

sourcing map SC/UPC Optic Fiber Quick Connector for Server Rack, Patch Panel Fast Adapter MM/SM for FTTH/OD 4Pcs

• [Main Parameter]: SC; UPC; DGH; Multi-mode/Single-mode; Insertion Loss: <0.3dB.
• [Professional Design]: Adopting A-level tricyclic ceramic ferrule - low insertion loss
• [Features]: Good repeatability, high return loss, stable and reliable performance, high installation quality, high success rate and high reliability.
• [Application]: Widely Used for optical distribution frame (ODF), FTTH, CATV, optical-fiber local area network, optical fiber instrument etc.
• [Easily installed]: Quick assembly SC connector can provide quick and easy termination of fibers in the field.

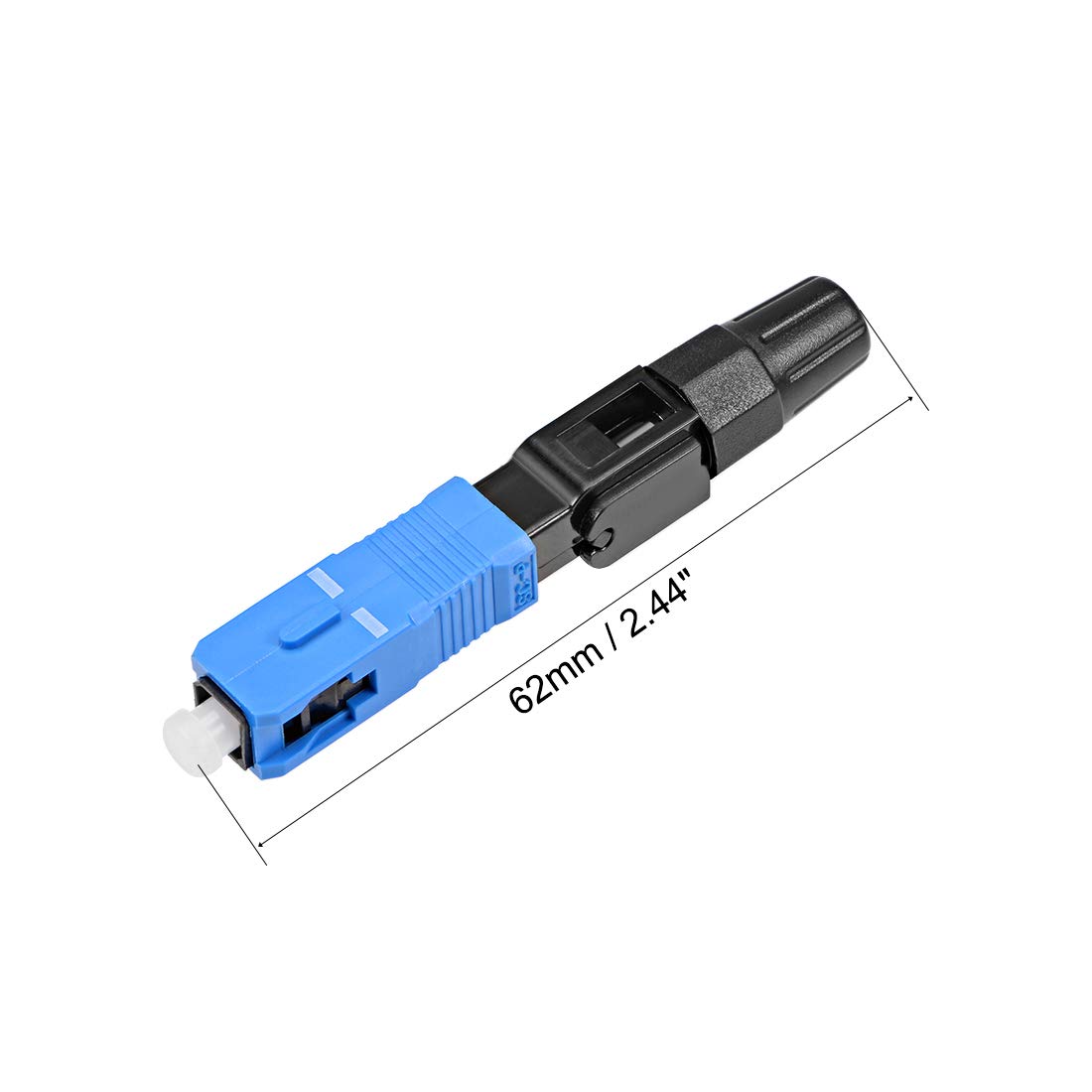

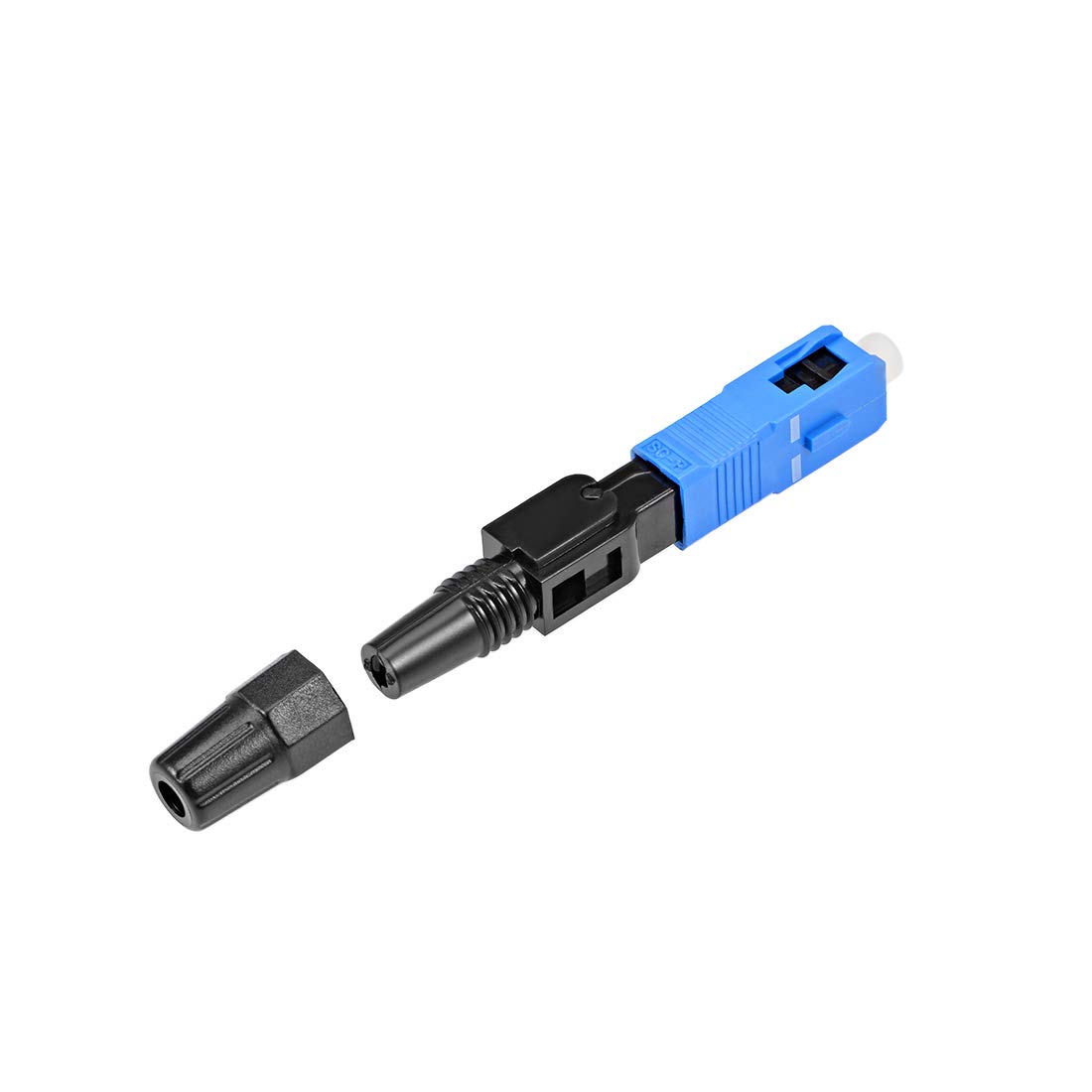

<b>Features:</b><br />1. Can be used for Telecom and Unicom fiber.<br />2. Professional design, adopting A-level tricyclic ceramic ferrule - low insertion loss.<br />3. Quick assembly SC connector can provide quick and easy termination of fibers in the field.<br />4. This connector features of good repeatability, high return loss, stable and reliable performance, high installation quality, high success rate and high reliability.<br />5. Widely used for optical distribution frame (ODF), FTTH, CATV, optical-fiber local area network, optical fiber instrument etc.<br /> <br /><b>Specifications:</b><br />Product Structure: frame, connector body, dustproof cap, ferrule<br />Loss: ≤ 0.3dB (MAX0.5)<br />Return Loss: ≥ 50dB<br />Type: SC/UPC-P fiber connector<br />Application: Single Mode<br />Temperature Change Rate: < 0.5dB (-40 ~ + 75 ℃) <br />Temperature: -40 ~ +75 ℃<br />Totally Size:62mm x10mmx10mm/2.44"x0.4"x0.4"<br />Material: Plastics<br />Color: Blue+Black<br /> <br />Package List:<br />4 x SC Optic Fiber Quick Connector<br />
