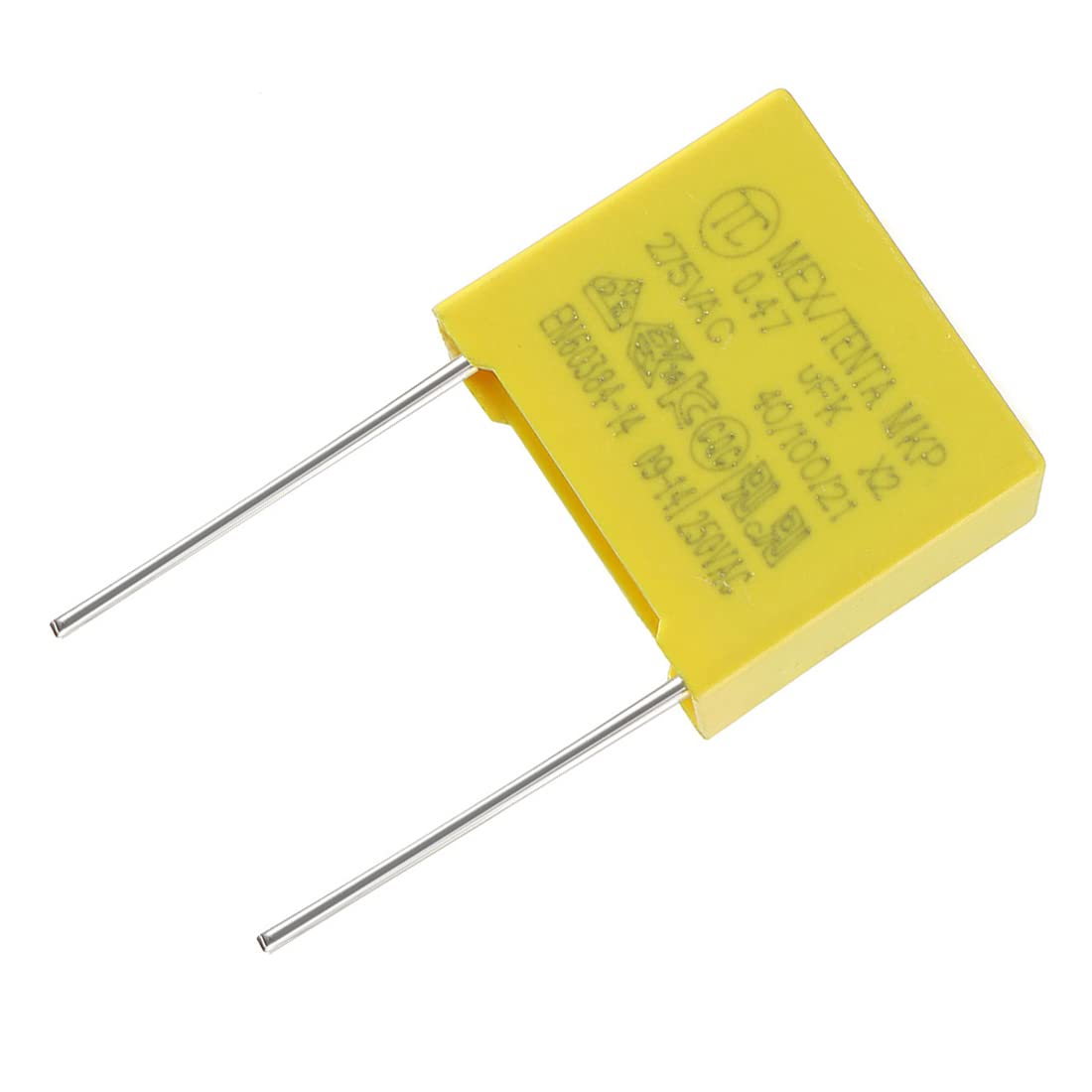

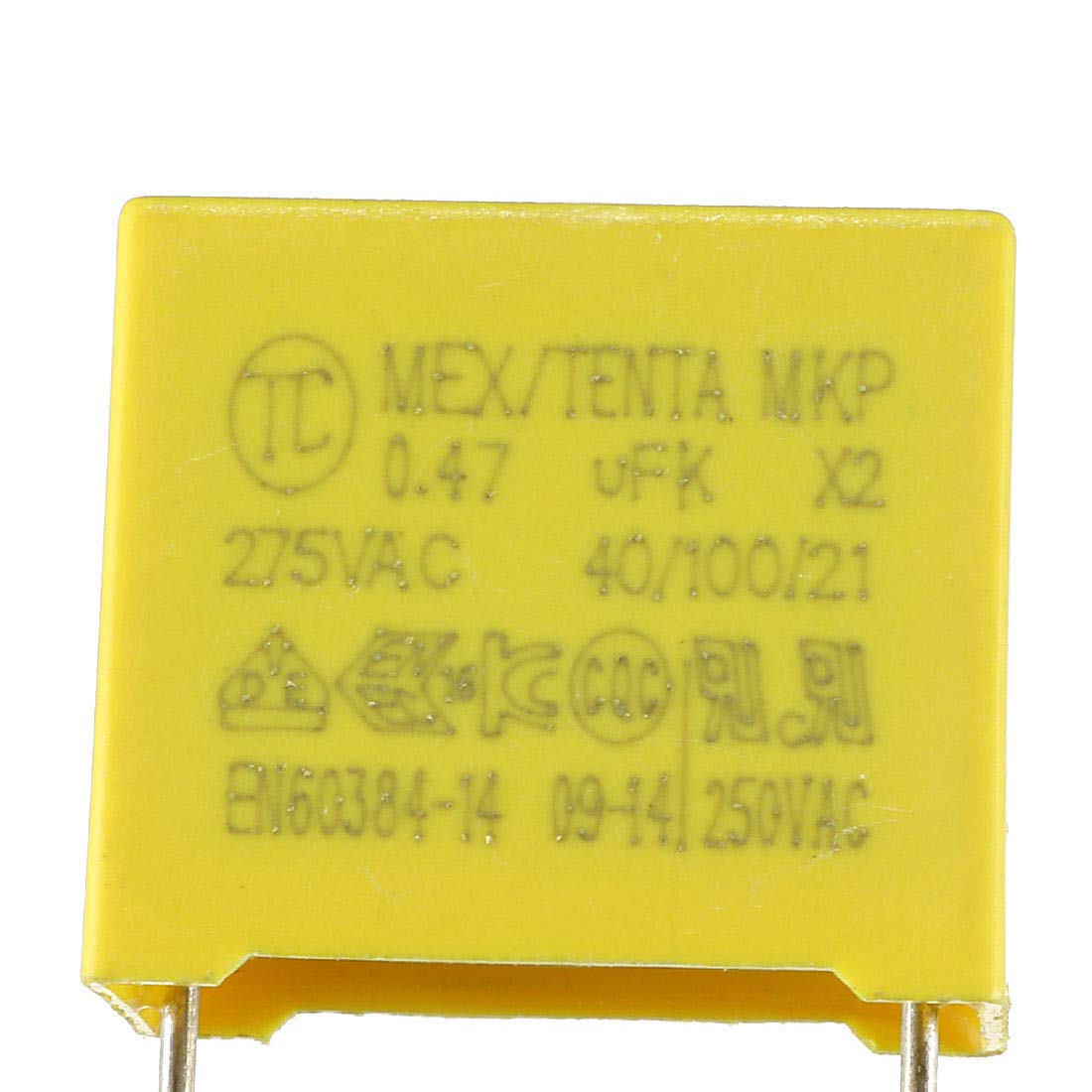

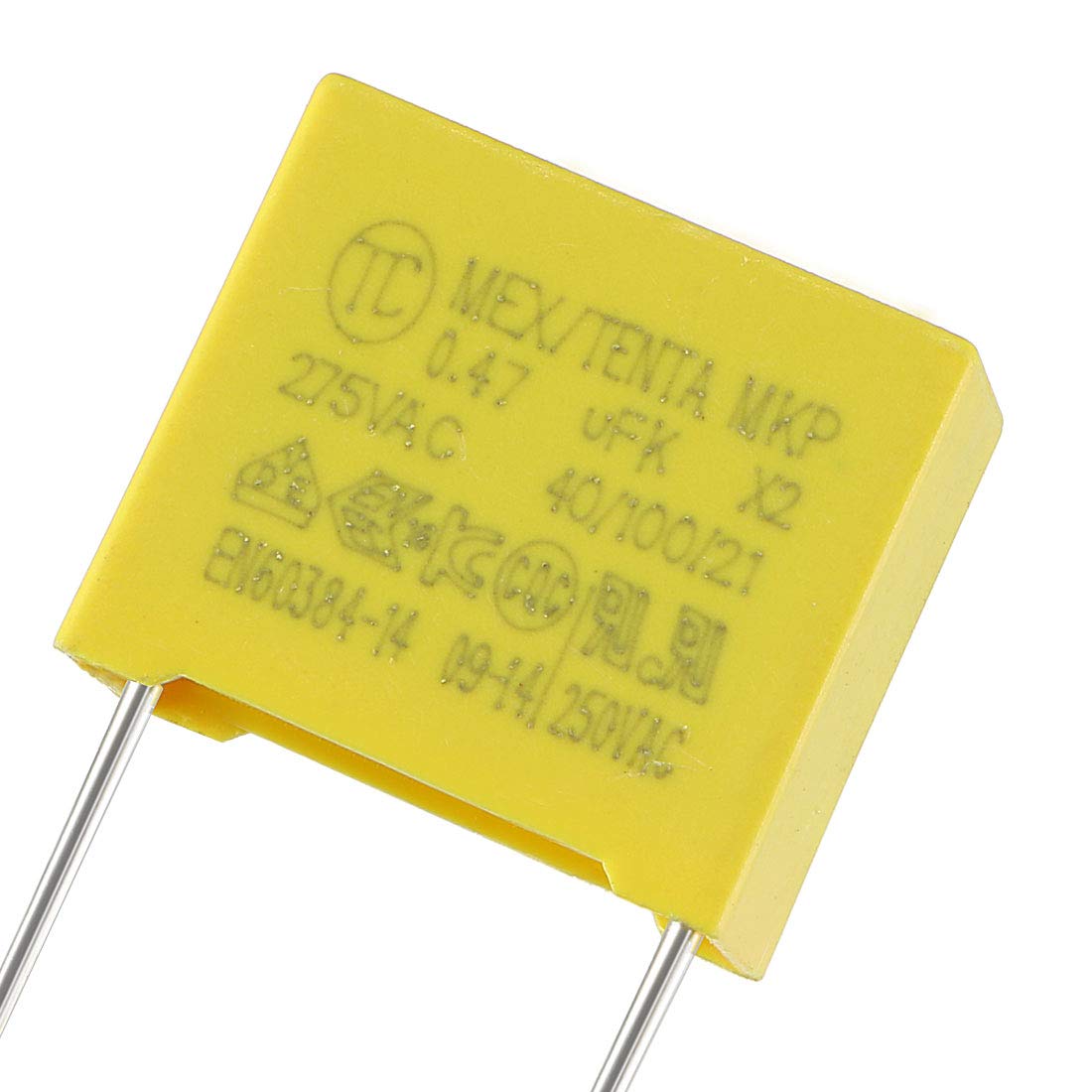

sourcing map Safety Capacitors Polypropylene Film 0.47uF 275VAC X2 MKP

• Capacitance: 0.47uF; Tolerance: K(±10%); Withstand Voltage: 275V AC.
• Lead Size (Approx.): 0.7 x 20mm / 0.03 x 0.8inch; Pin Pitch (Approx.): 14.5mm / 0.57inch.
• Performance: Anti-electromagnetic interference, it can withstand over-pressure shock, and has excellent flame retardant and moisture-proof ability.
• Durable: Small size is suitable for high-density components of the circuit board; low frequency loss, and it has long service life.
• Application: Widely used in the bypass of various electronic and electrical products, DC blocking, filtering, coupling and resonance.

Description: * X2 Series safety capacitor features dip mounting type and compact size. * Anti-electromagnetic interference, it can withstand over-pressure shock, and has excellent flame retardant and moisture-proof ability. * Small size is suitable for high-density components of the circuit board; low frequency loss, and it has long service life. * It applies to jumper the power line, EMI filters, switching power supply and other power supply with security requirements. * Widely used in the bypass of various electronic and electrical products, DC blocking, filtering, coupling and resonance. Specification: * Product Name: Safety Capacitor * Model: 275V474P15 * Color: Yellow * Material: Polypropylene, Metal * Shape: Rectangle * Withstand Voltage: 275V AC * Rated Voltage: 275V AC * Capacitance: 0.47uF * Tolerance: K(±10%) * Temperature Characteristic: 40/100/21 * Lead Type: Radial Direction * Lead Shape: S * Lead Size (Approx.): 0.7 x 20mm / 0.03 x 0.8inch * Pin Pitch (Approx.): 14.5mm / 0.57inch * Body Size (Approx.): 18 x 15.5 x 10mm / 0.71 x 0.61 x 0.39inch (L*W*T) Package Content: * 1 x Safety Capacitors
