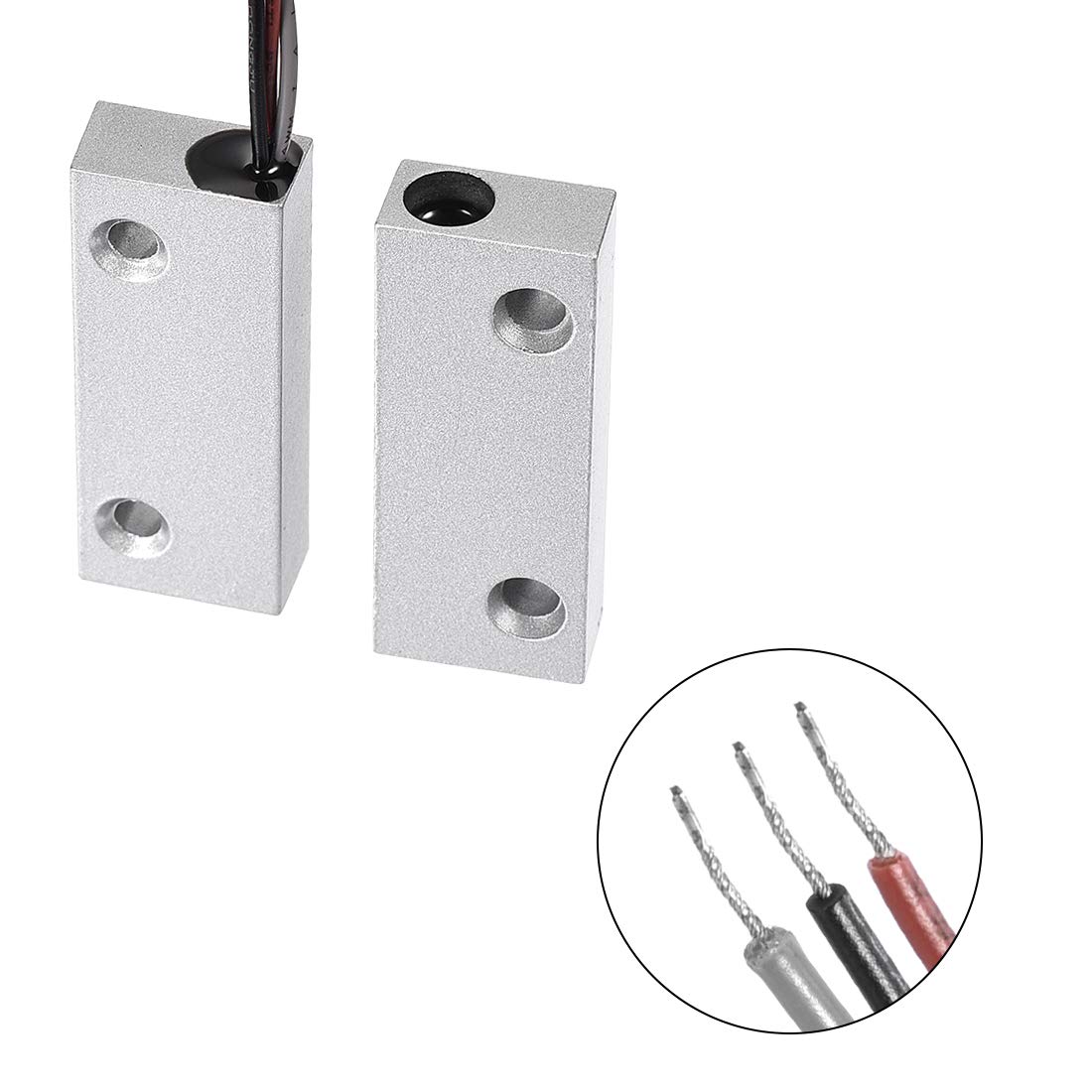

sourcing map Rolling Door Contact Magnetic Reed Switch Alarm with 3 Wires for N.O./N.C. Applications MC-52 2Set

• [Specification] - Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 20~35mm

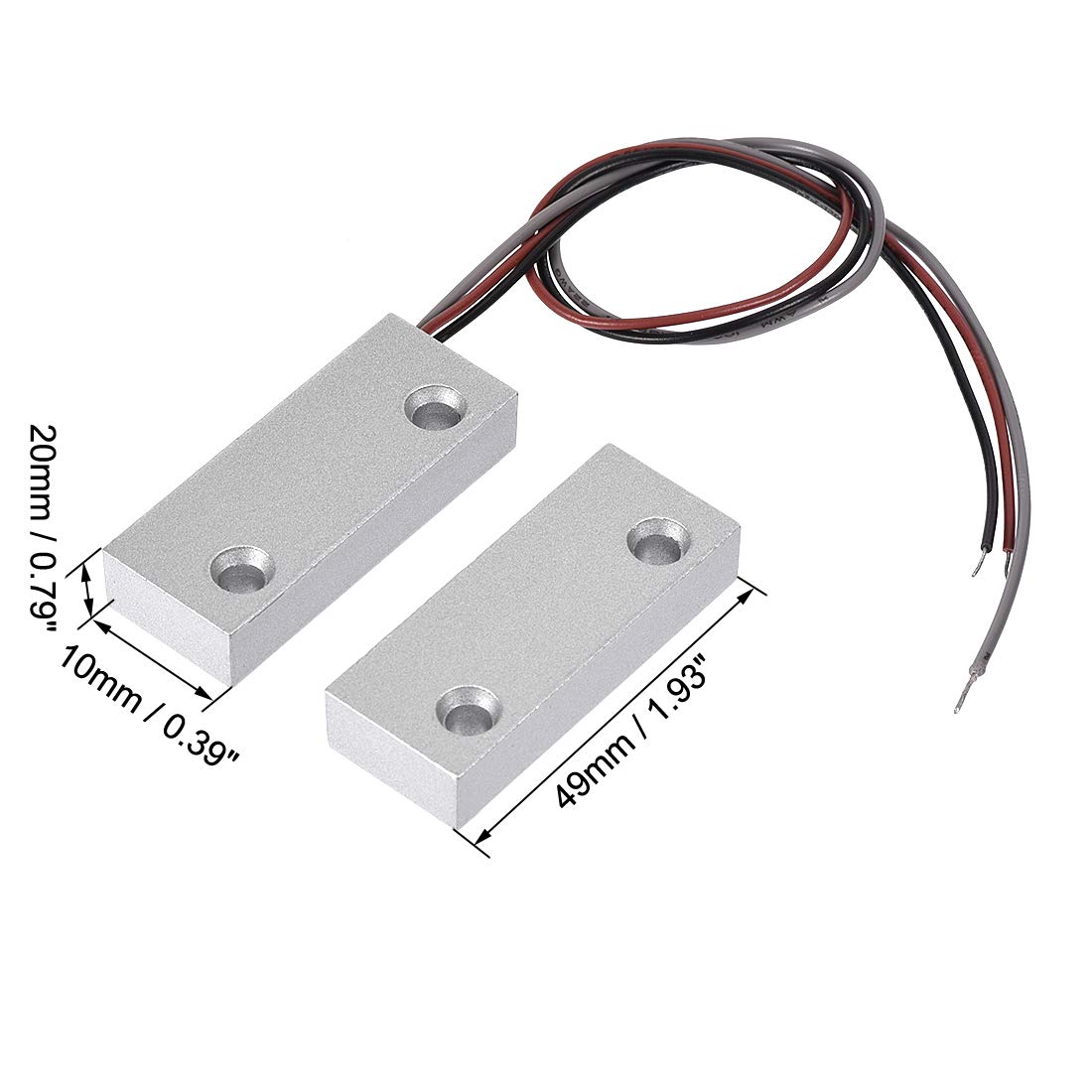

• [Dimension] - Cable Length: 23cm/9.1"; Total Size: 49mm x 20mm x 10mm / 1.93" x 0.79" x 0.39"(L*W*H)
• [Material] - The magnetic switch alarm is with durable zinc alloy housing for better rust resistance
• [N.O./N.C.] - N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ). N.O. means Normally Open: when the magnet separates, the circuit is conductive( light on ); When the magnet together, the circuit is not conductive ( light off ). When make order, pls check carefully!
• [Applications] - The Rolling Door Contact is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.

Description: 1.Actuation Distance: 20-35mm.Silver gray zinc alloy housing. 2.The reed switch is an electrical switch operated by an applied magnetic field. 3.Designed for use with alarm systems. Great for use in family and factory window, door. etc. 4.Screw Mounted for easily install. 5.NC means Normally Closed:When the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit is not conductive ( light off ). NO means Normally Open: when the magnet separate, the circuit is conductive( light on );When the magnet together, the circuit is not conductive ( light off ).When make order,pls check carefully! Specification: Product Name: Magnetic Door Switch Model: MC-52 Contact Type: NC+NO Actuation Distance: 20-35mm Max. Current: 0.5A Max. Power: 10W Working Voltage: DC100V Size(Approx): 49mm x 20mm x 10mm / 1.93" x 0.79" x 0.39"(L*W*H) Hole Dia.: 4.2mm Cable Length(Each): 23cm / 9.1-inch Material: Zinc Alloy (Housing) Wire Type: 1007UL#22AWG Color: Silver Gray Net Weight: 217g Package Content: 2Set x Magnetic Door Switch, 8 x Screws Note: Door magnetic induction can only provide a switch l, which can not directly load the power, nor directly connect the lamp!
