sourcing map Push to Connect Tube Fittings 8mm Tube OD x 1/4 PT Female Straight Pneumatic Connector Pipe Fitting Silver Tone 2Pcs

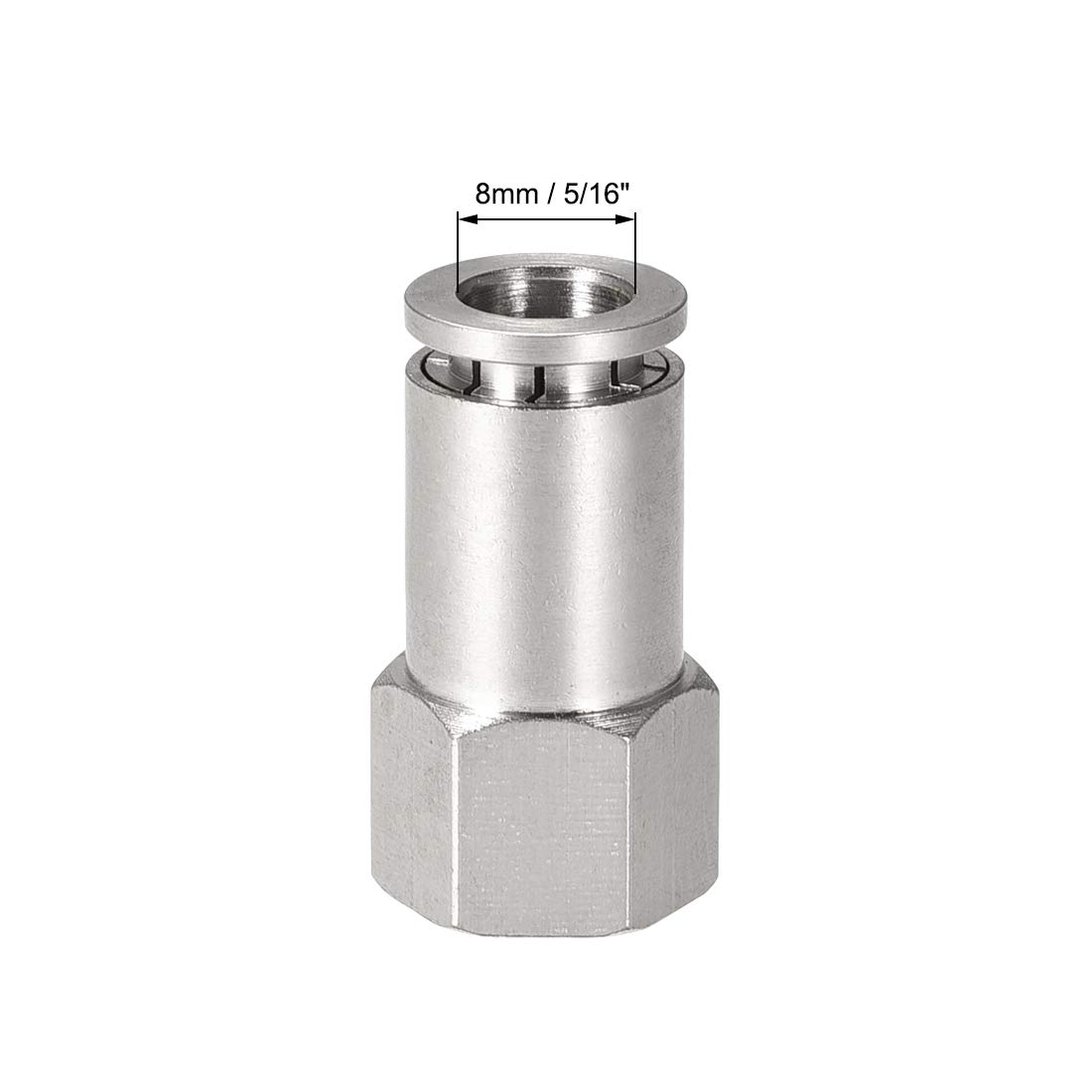

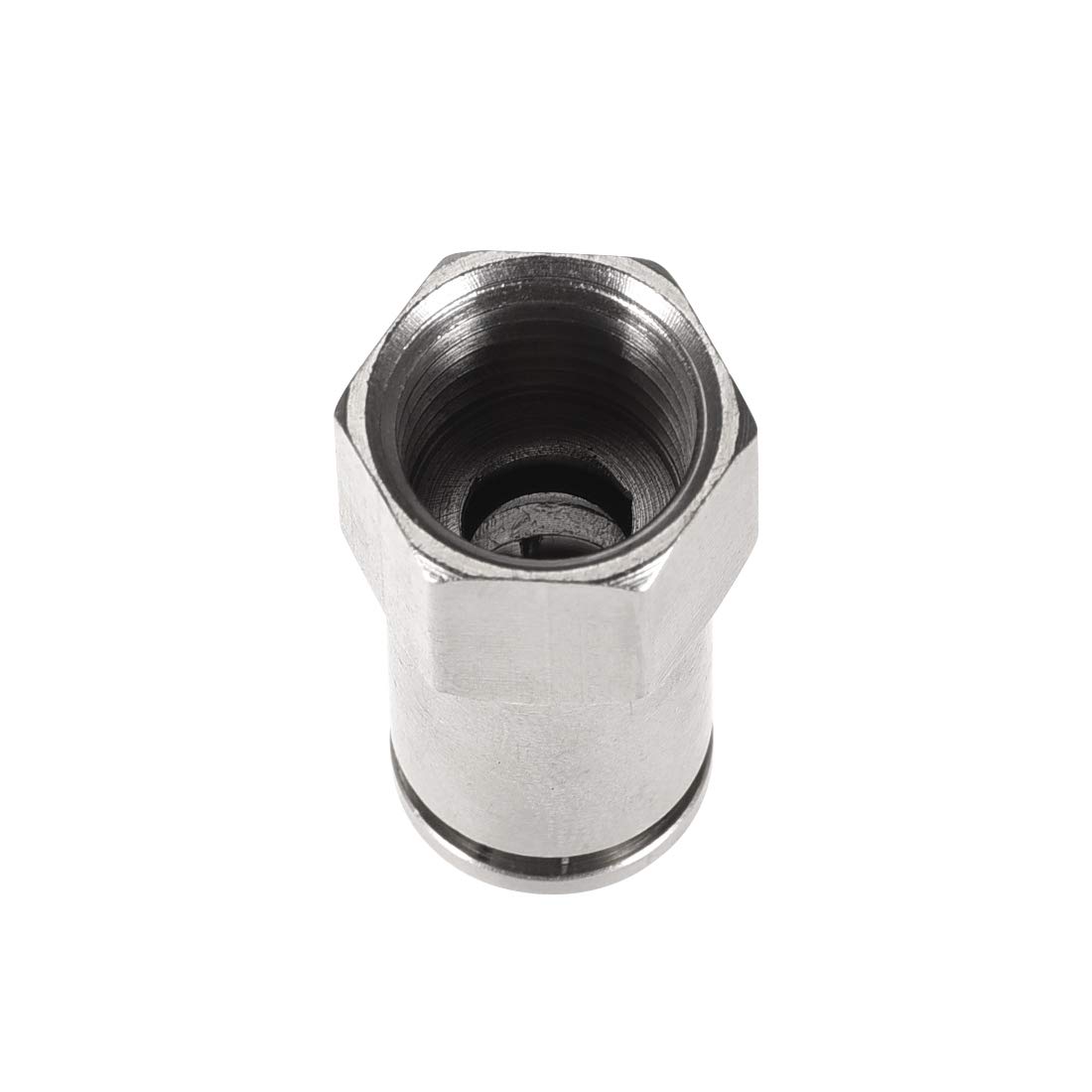

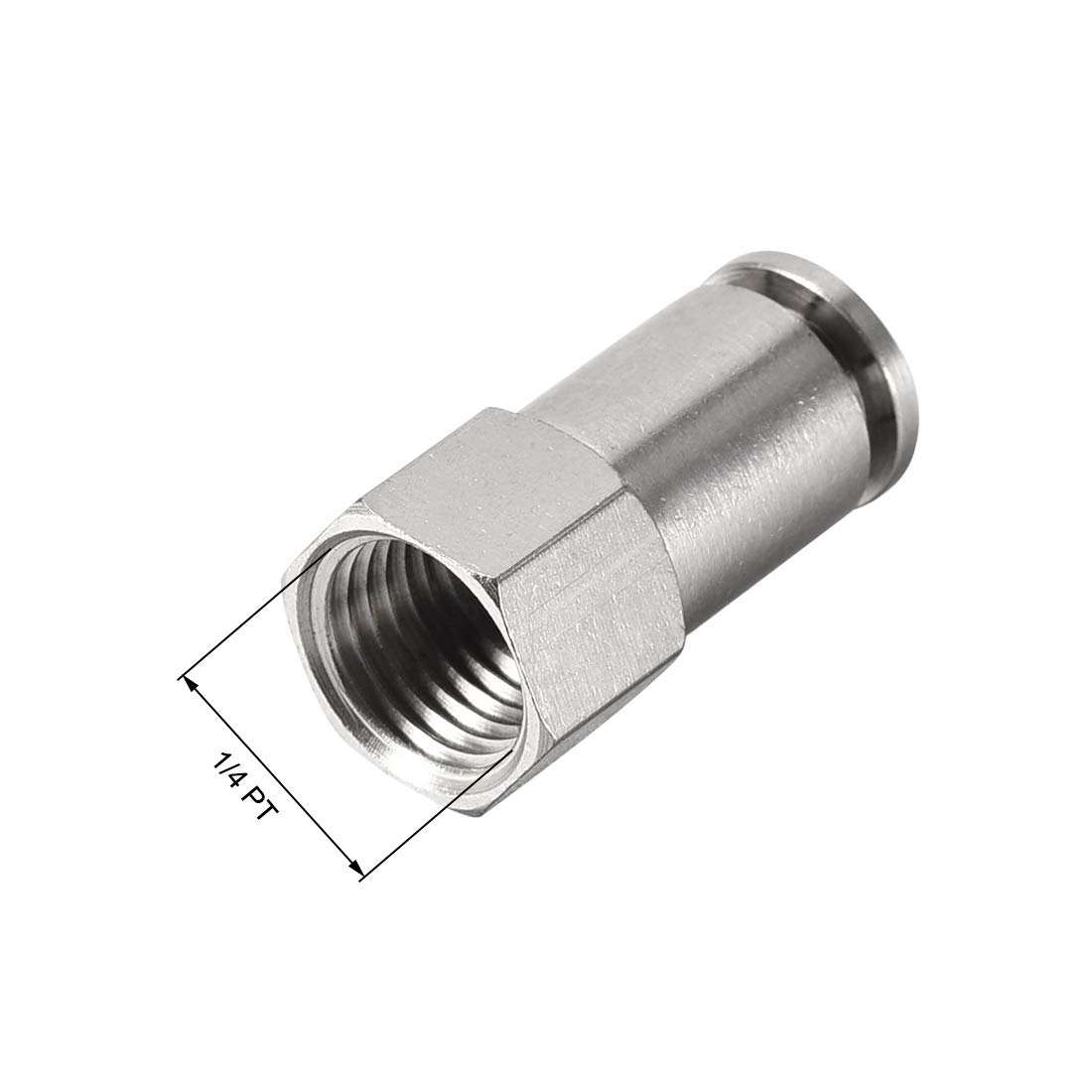

• Fit Tube OD: 8mm; Male Thread Size: 1/4PT(Approx OD 12.8mm).
• Push-to-connect tube connection on one end and female threads on the other end. A good release cap can withstand greater and stronger pressure without tripping.
• This quick fitting is made of nickel-plated brass, and has resistance to high temperature and pressure, good sealing performance and long service life.
• Applications: Mainly used for air compression systems, vacuum systems, pneumatic systems.
• Note: Make sure that the cutting surface of the pipe is vertical. Please insert the tube into the bottom before use.

Product Features: Color : Silver Tone Material : Nickel-plated Brass Thread Size : 1/4 PT Tube Size (OD) : 8mm / 5/16" Type: Female Straight Thread Connector Operating Pressure : 0-9MPa Operating temperature：0 - 60 Degree Celsius Dimension : 30mm x 15mm / 1.18-inch x 0.59-inch (L x W ) Package Content: 2Pcs x Push to Connect Fittings Description: 1.The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely. 2.Push-to-connect tube connection on one end and female PT threads on the other end. 3.A good release cap can withstand greater and stronger pressure without tripping. 4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life. 5.Elliptical release ring help to connect tube easily by manual, no special tools required. 6.Outside (and Inside where applicable) hexagonal wrench tightening. Mounted: 1.Cut the pipe flat, no slope 2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak. 3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected. 4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
