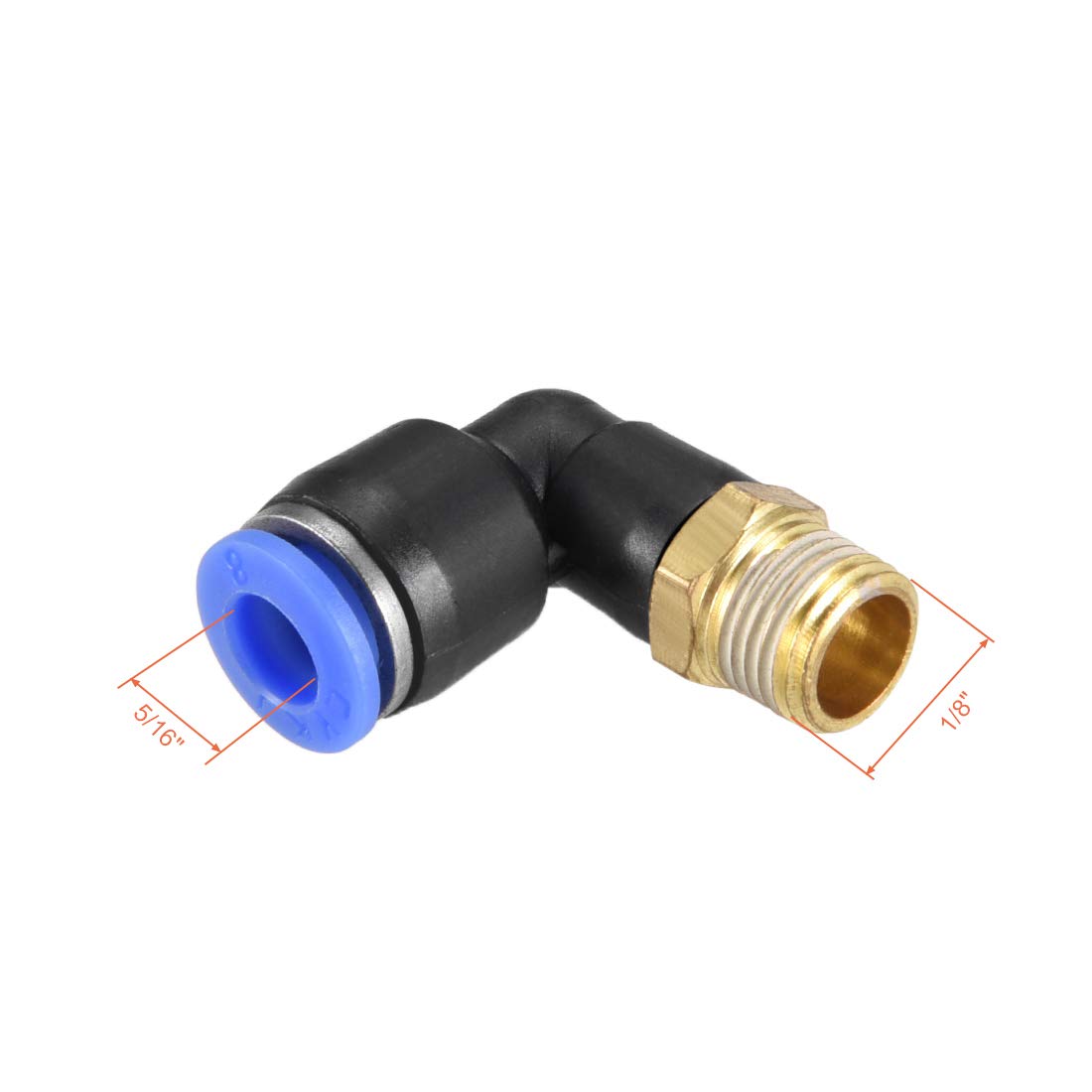

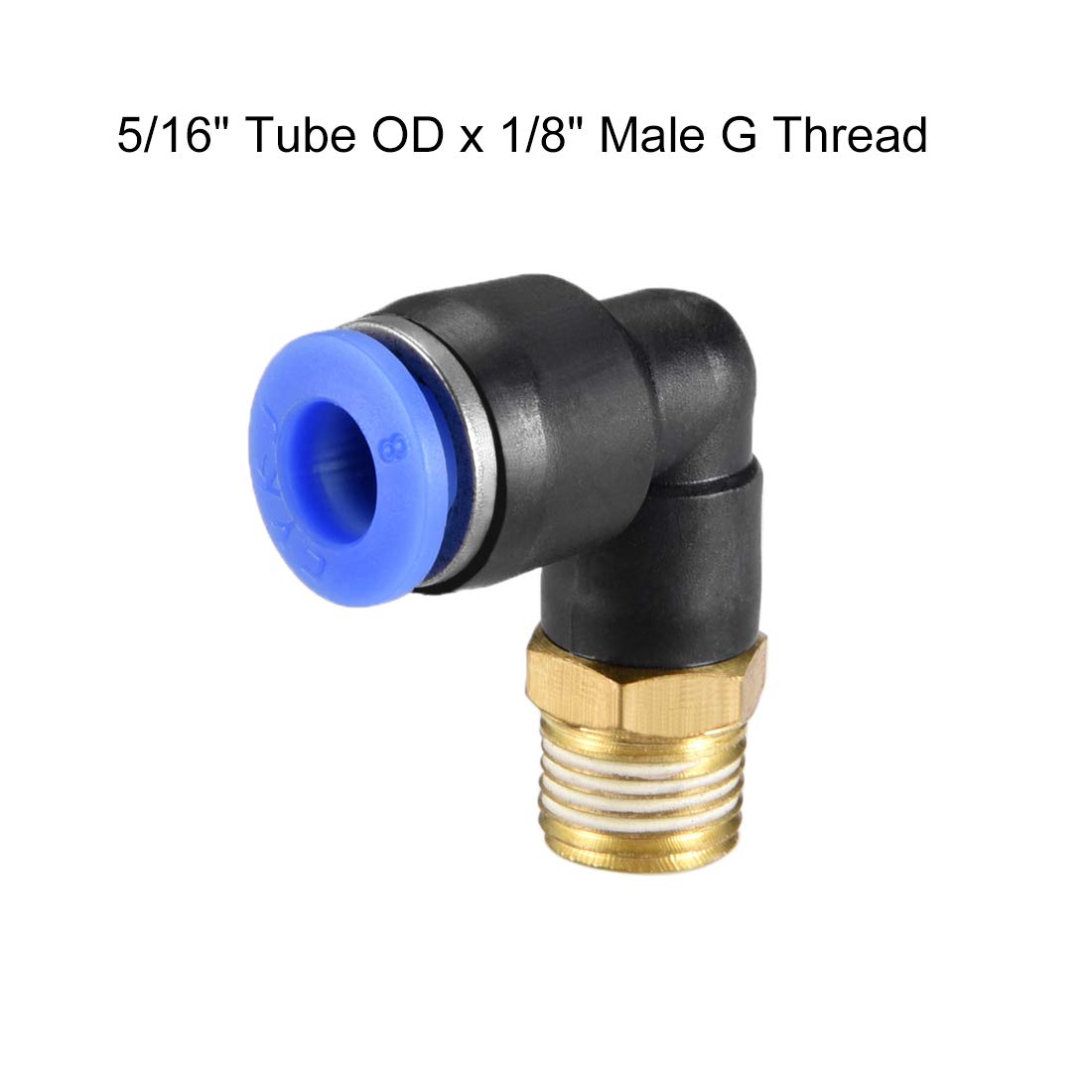

sourcing map Push to Connect Tube Fitting Male Elbow 8mm Tube OD x G1/8" Thread Pneumatic Air Push Fit Lock Fitting Blue

• UNIVERSAL DESIGN: Tube and Thread Size : 8mm OD x G1/8" Male; Operating Pressure : 0-1MPa ; Operating temperature：-10 - 60 Degree Celsius
• Push to connect fitting can realize the pipeline together or disconnected without tools, mainly used for air compression systems, vacuum systems, pneumatic systems, 3D printers.
• GOOD DESIGN: Push-to-connect tube connection on one end and male G threads on the other end. A good release cap can withstand greater and stronger pressure without tripping. Even after installation, the release cap can be rotated 360 degrees.
• ADVANTAGE:Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
• APPLICATION: Elbow Air Fitting has Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.

Product Features:<br />Product Name : Connect Fitting<br />Model : PL8-01<br />Net Weight : 11g<br />Color : Black,Blue<br />Material : Plastic,Metal<br />Male Thread Type : G Type<br />Operating Pressure : 0-1MPa <br />Operating temperature：-10 - 60 Degree Celsius<br />Type: 90 Deg Swivel Elbow Male Connector<br />Thread Size :G1/8" <br />Tube Size (OD) : 0.31" / 8mm <br />Dimension : 31mm x 28mm x 15mm / 1.22-inch x 1.1-inch x 0.59-inch (L x W x H)<br /> <br />Package Content:<br />1pcs x Connect Fitting<br /> <br />Description:<br />1.Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.<br />2.Push-to-connect tube connection on one end and male G threads on the other end.<br />3.A good release cap can withstand greater and stronger pressure without tripping.<br />4.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.<br />5.Easy to install, insert the plastic tube, the cap can be rotated freely, but its rotation is only used when the angle is wrong when the joint is installed.<br /> <br />Mounted:<br />1.Cut the pipe flat, no slope<br />2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.<br />3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.<br />4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.<br />
